Single Row Spring SMD

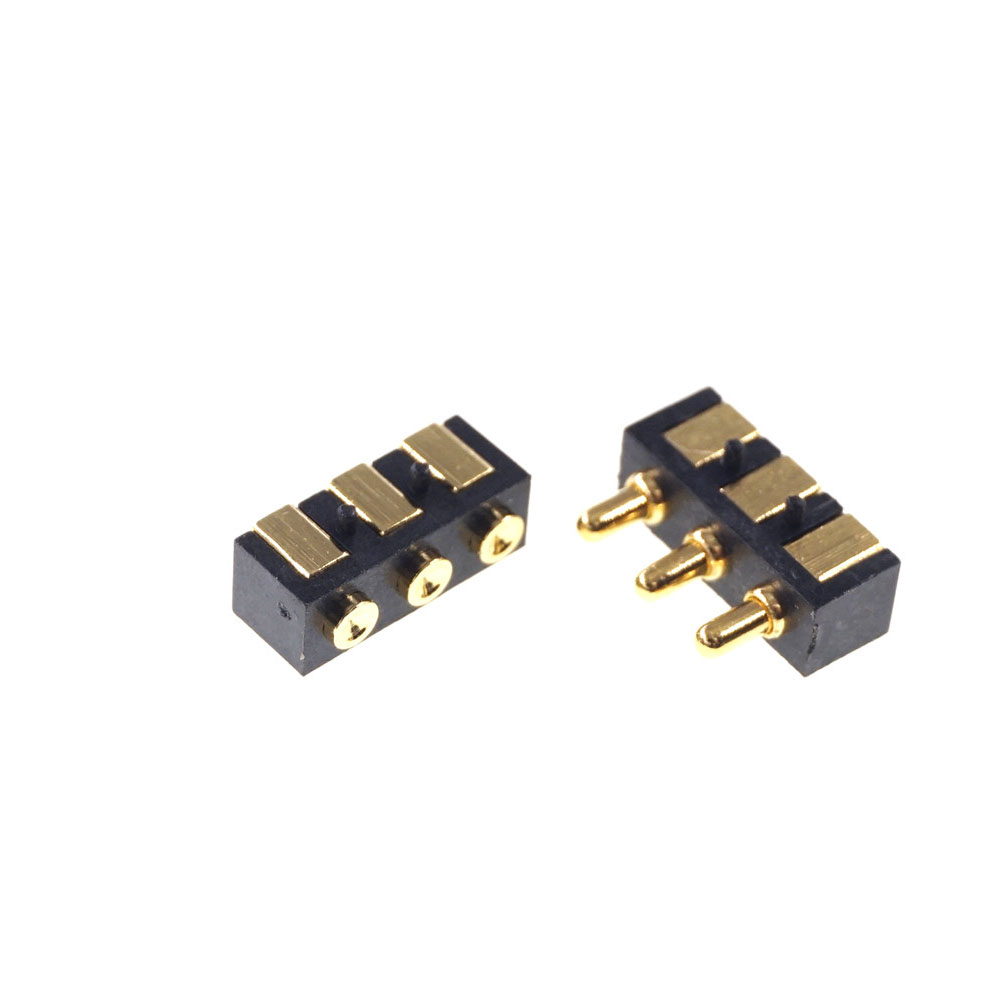

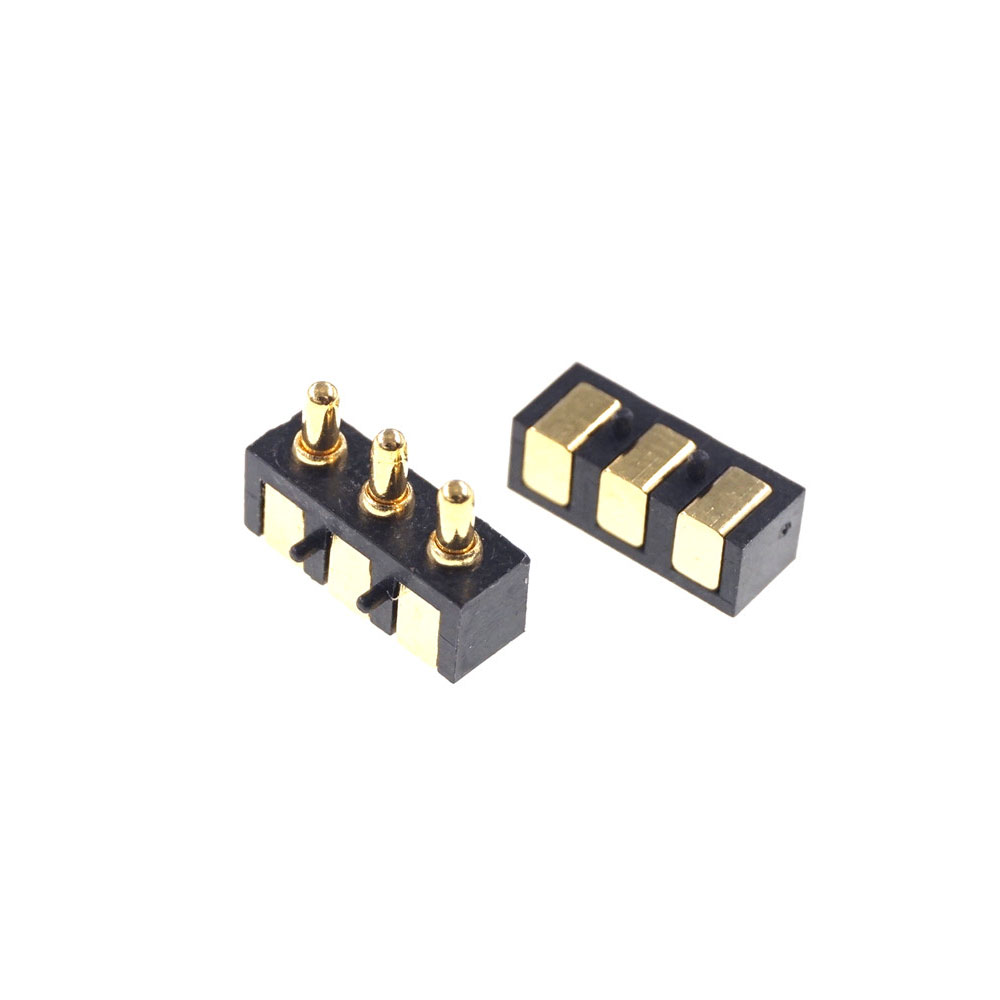

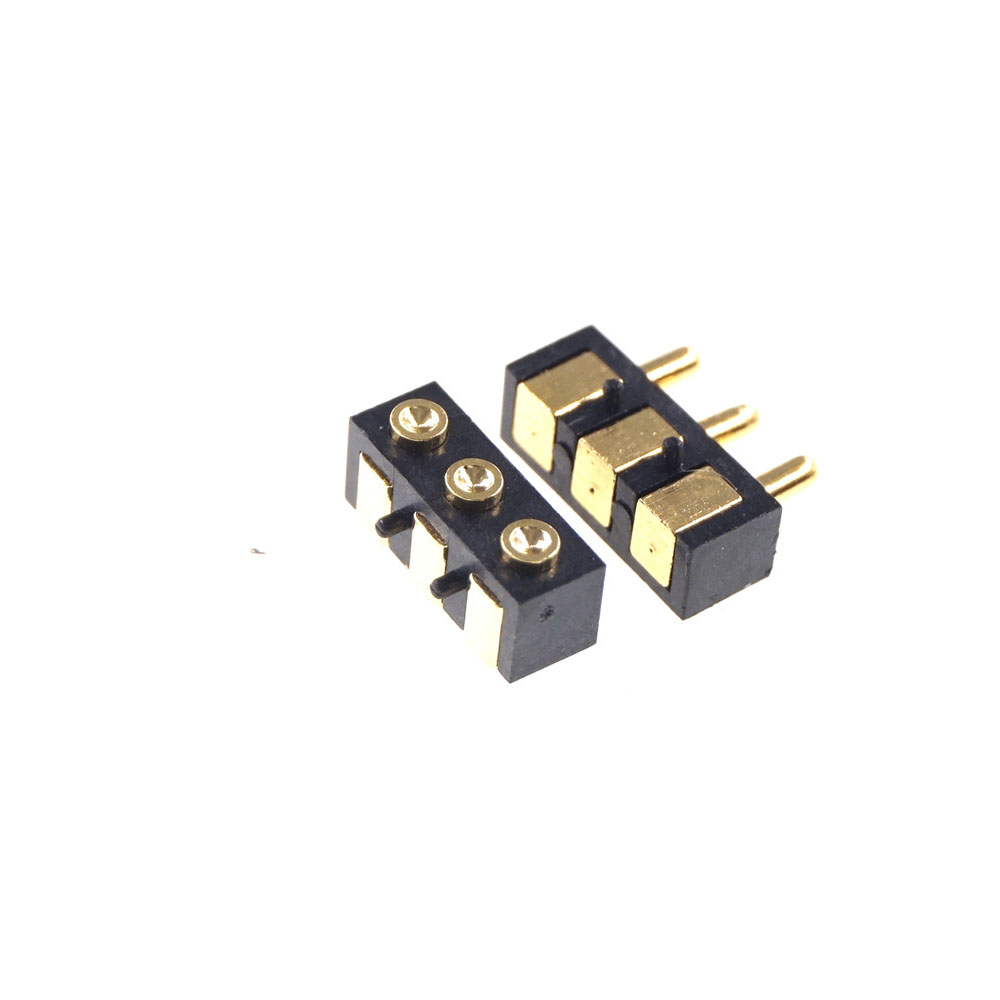

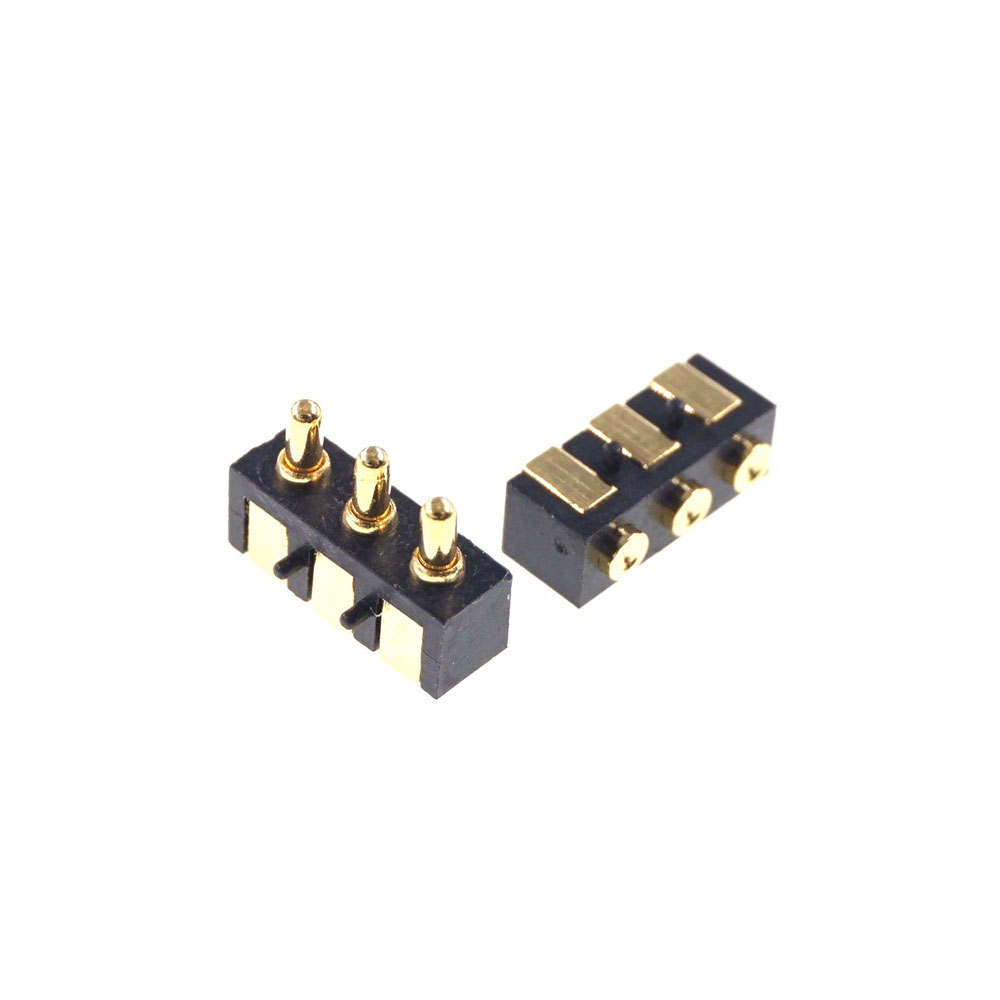

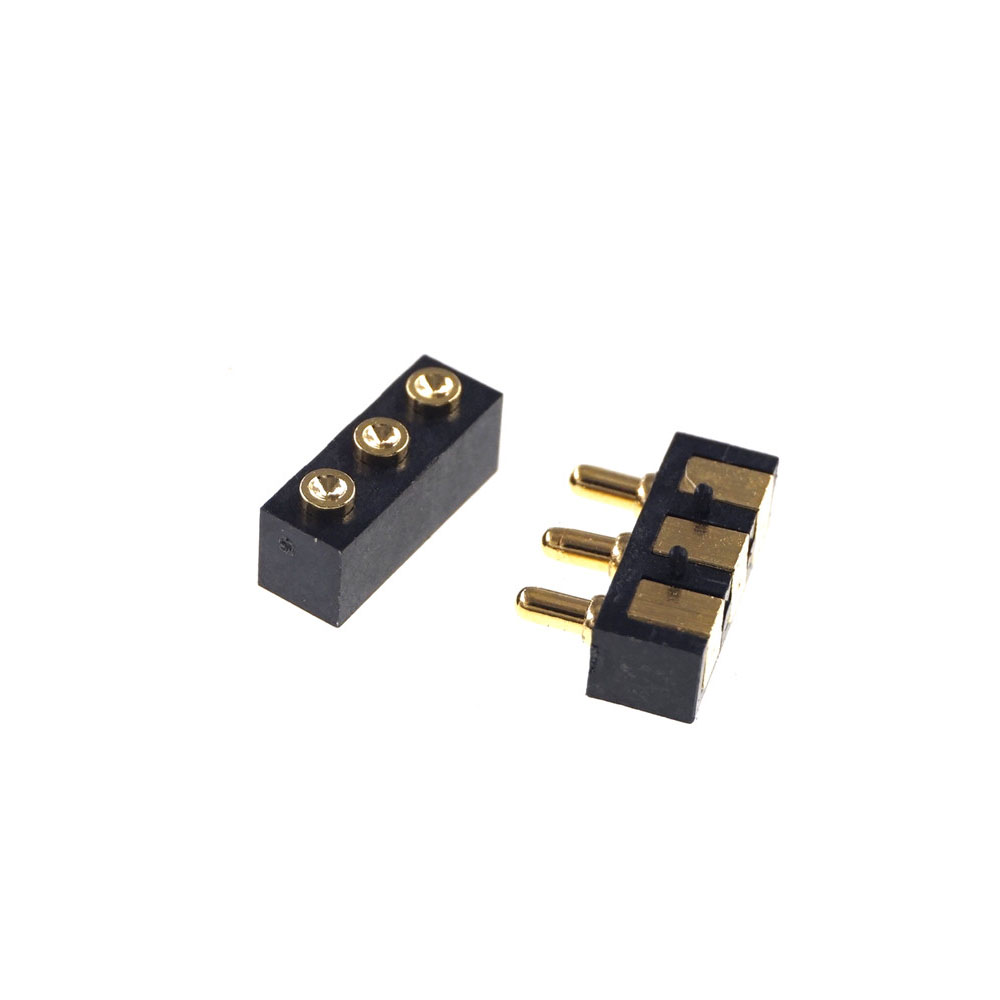

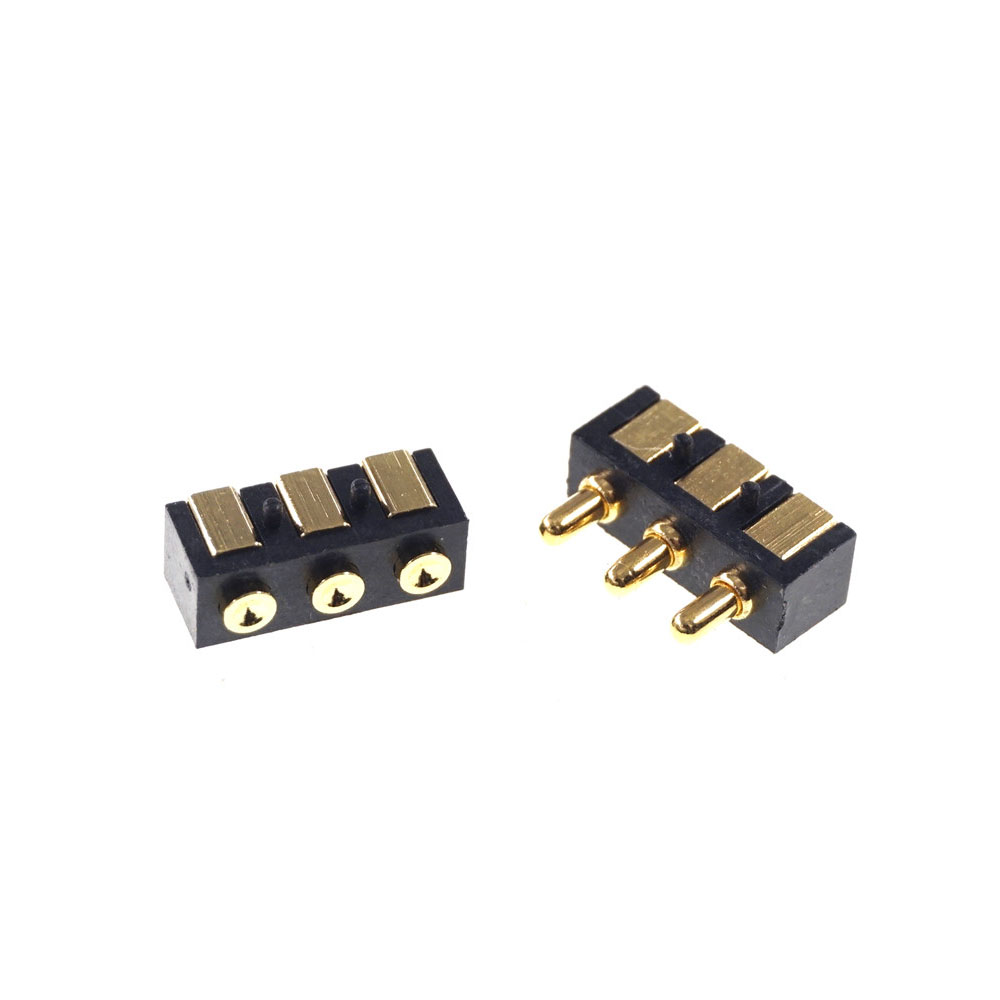

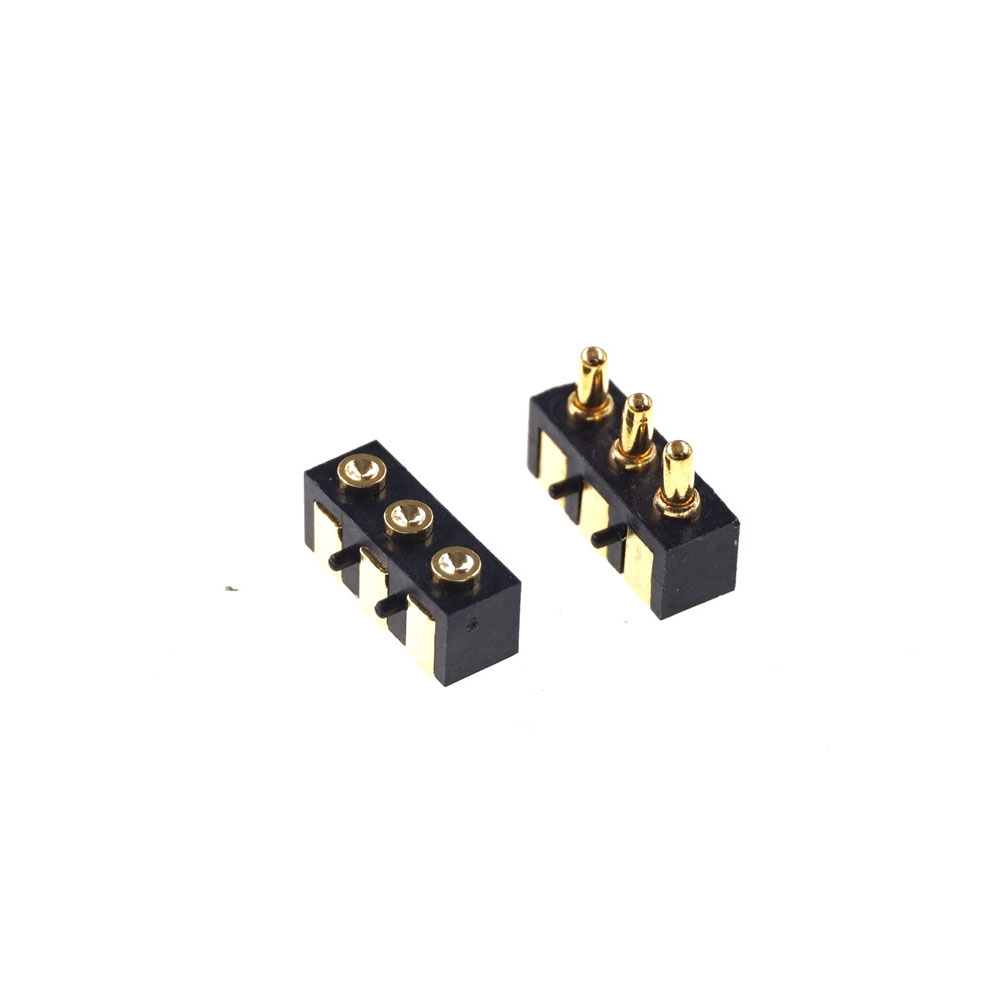

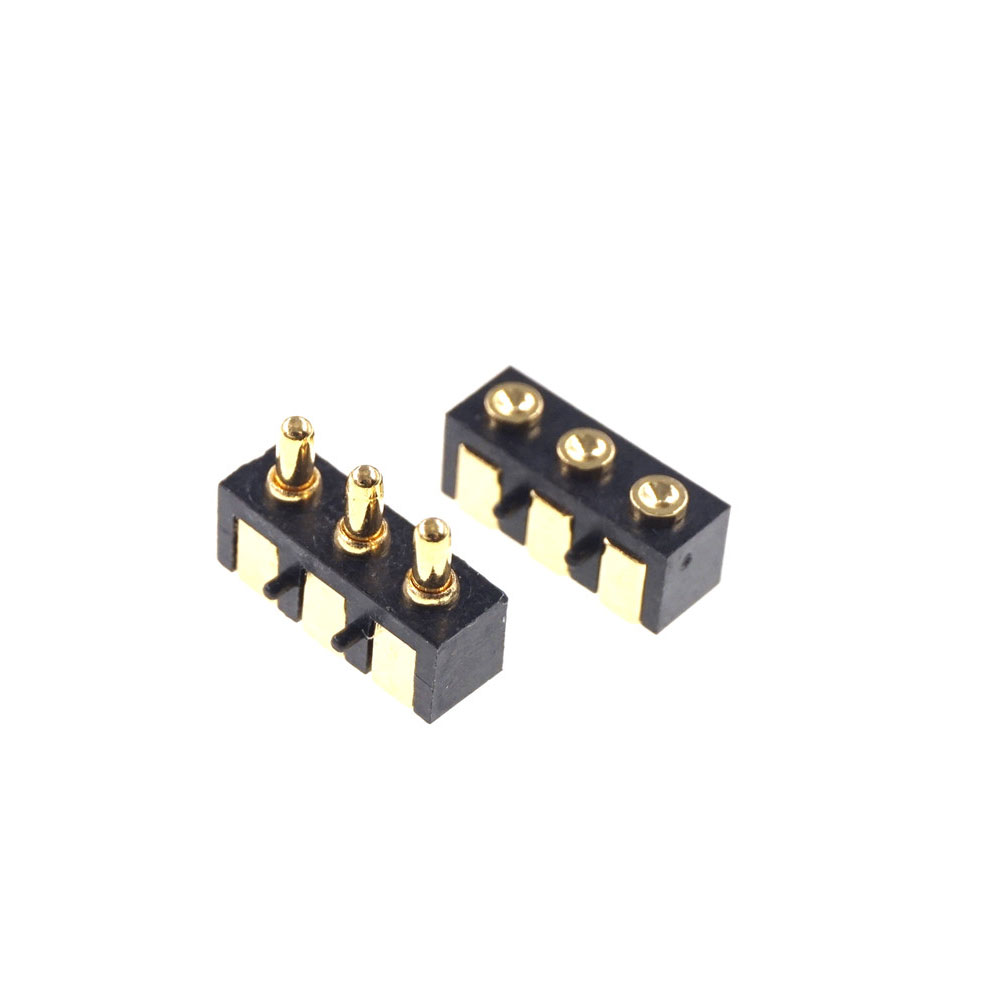

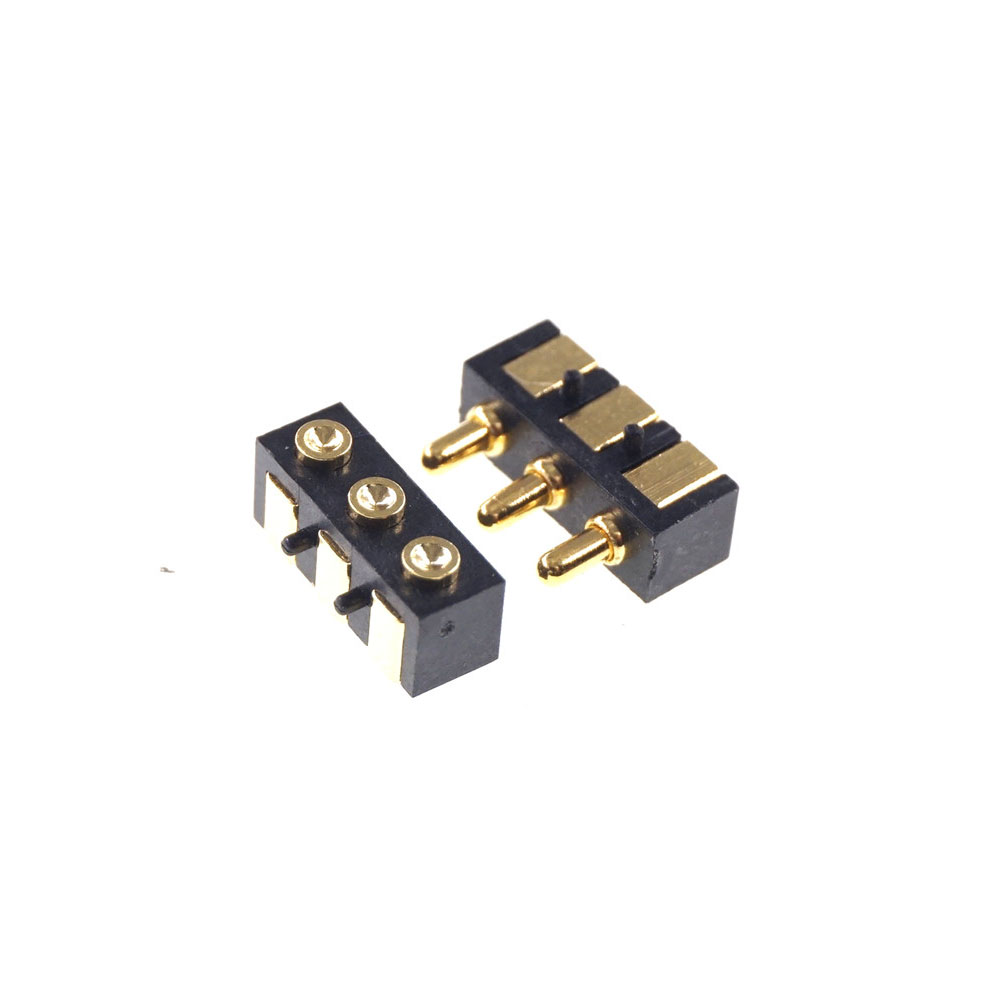

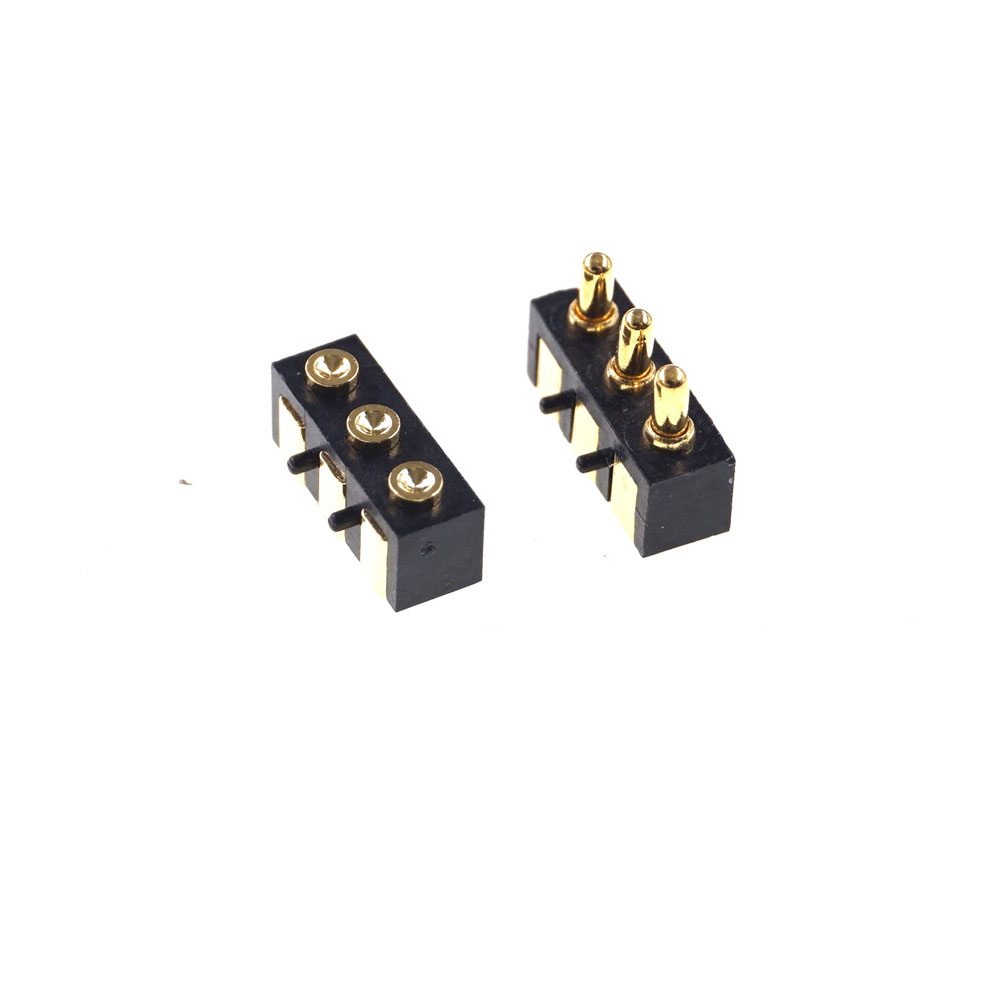

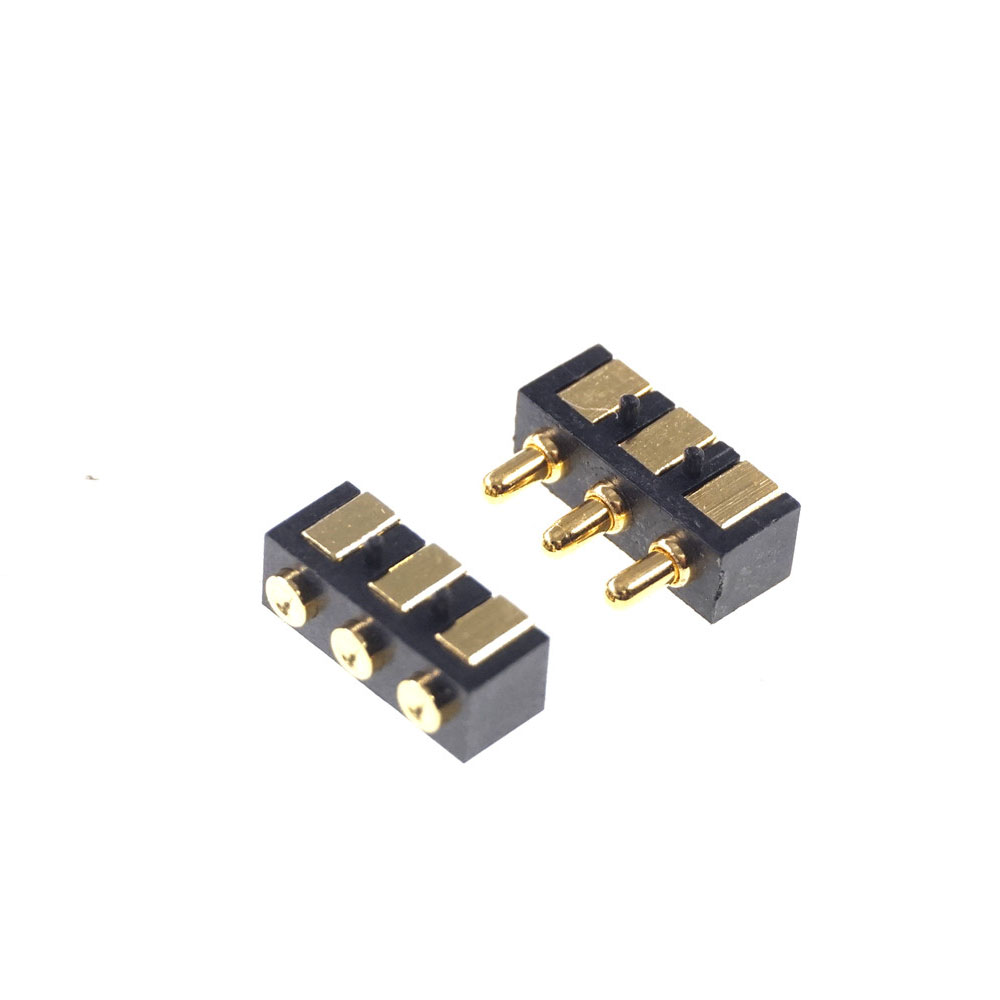

Spring Loaded Pogo Pin connector 3 PIN Right Angle Surface Mount SMD Strip Male Female Target Flat Face SMT Pitch 2.5 mm
Spring Loaded Pogo Pin connector 3 PIN Right Angle Surface Mount SMD Strip Male Female Target Flat Face SMT Pitch 2.5 mm

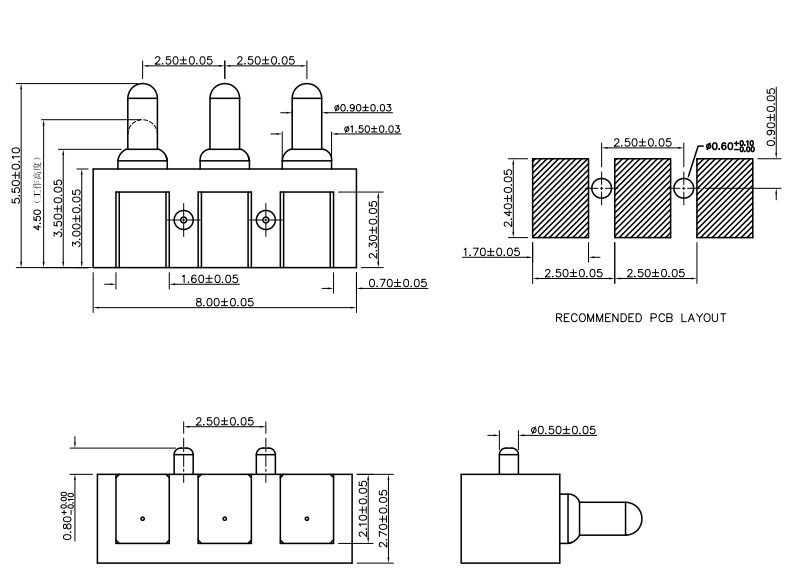

Male Pogo Pin (With Spring Loaded) Height 5.5mm

Female Pad (No Spirng Loaded) Height 3.5 mm Flat Face contact

1.Material for plugger and body: Brass Alloy ,

2.Surface Treatment: Gold plated 1 mirco inch, 3mirco inch over Nickle

3.Produce by: CNC Auto Lathe Machine

4.Application: Automotive, Instrument, Electronic Equippment,Battery Charge


Electronic:

a. Current rating: 1A 12VDC

b.Spring force:60g,can make according client requirement

c. Life cycles: 10000 max

d.Contact Resistance:30m Ohm

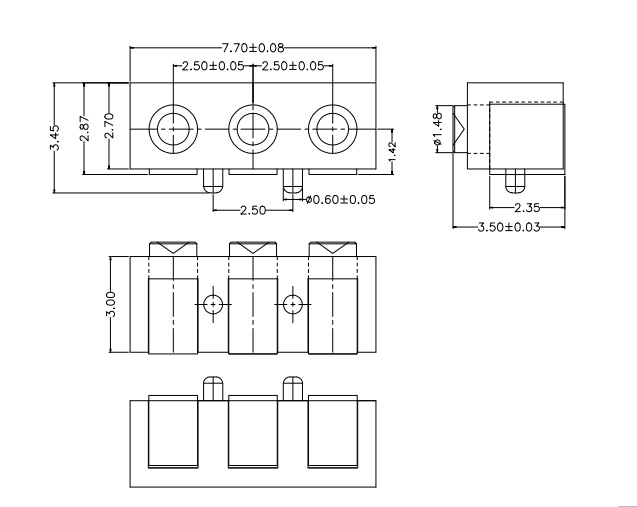

Female Contact 3.5mm Height Flat Face contact (No spring Loaded)


Spring Loaded Pogo Pin connector 3 PIN Right Angle Surface Mount SMD Strip Male Female Target Flat Face SMT Pitch 2.5 mm
Spring Loaded Pogo Pin connector 3 PIN Right Angle Surface Mount SMD Strip Male Female Target Flat Face SMT Pitch 2.5 mm
Spring Loaded Pogo Pin connector 3 PIN Right Angle Surface Mount SMD Strip Male Female Target Flat Face SMT Pitch 2.5 mm
Spring Loaded Pogo Pin connector 3 PIN Right Angle Surface Mount SMD Strip Male Female Target Flat Face SMT Pitch 2.5 mm
Spring Loaded Pogo Pin connector 3 PIN Right Angle Surface Mount SMD Strip Male Female Target Flat Face SMT Pitch 2.5 mm
Spring Loaded Pogo Pin connector 3 PIN Right Angle Surface Mount SMD Strip Male Female Target Flat Face SMT Pitch 2.5 mm
Spring Loaded Pogo Pin connector 3 PIN Right Angle Surface Mount SMD Strip Male Female Target Flat Face SMT Pitch 2.5 mm
Spring Loaded Pogo Pin connector 3 PIN Right Angle Surface Mount SMD Strip Male Female Target Flat Face SMT Pitch 2.5 mm
Spring Loaded Pogo Pin connector 3 PIN Right Angle Surface Mount SMD Strip Male Female Target Flat Face SMT Pitch 2.5 mm
Spring Loaded Pogo Pin connector 3 PIN Right Angle Surface Mount SMD Strip Male Female Target Flat Face SMT Pitch 2.5 mm
Spring Loaded Pogo Pin connector 3 PIN Right Angle Surface Mount SMD Strip Male Female Target Flat Face SMT Pitch 2.5 mm
Spring Loaded Pogo Pin connector 3 PIN Right Angle Surface Mount SMD Strip Male Female Target Flat Face SMT Pitch 2.5 mm
Spring Loaded Pogo Pin connector 3 PIN Right Angle Surface Mount SMD Strip Male Female Target Flat Face SMT Pitch 2.5 mm
