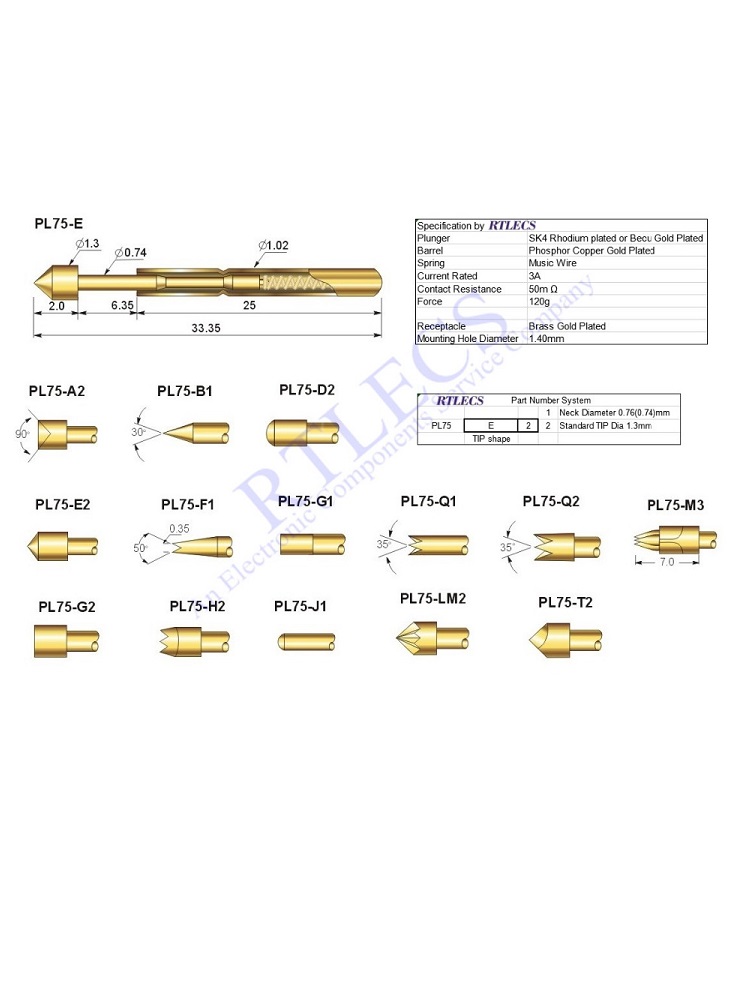

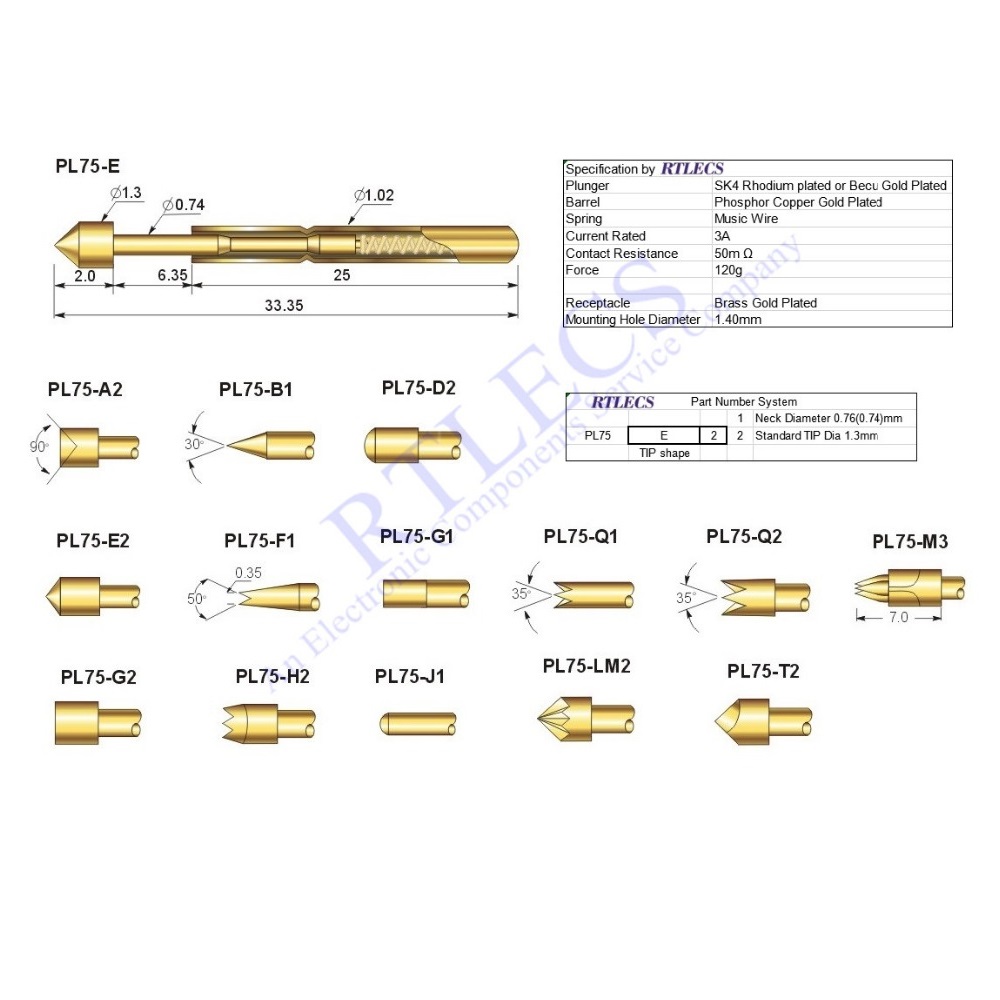

Bare PCB 1.91 Pitch Spring Test Probe PL75 Pogo Pin 33.35MM Length 1.02 MM Diameter Gold plated TIP Styles to Order
Bare PCB 1.91 Pitch Spring Test Probe PL75 Pogo Pin 33.35MM Length 1.02 MM Diameter Gold plated TIP Styles to Order

1.91 mm Pitch Min to Test

Spring Test Probe PL75

Receptacle Series RL75 (Not included in this link)

Bare PCB Pitch 1.91mm Minimum Distance Testing Sping Pin

Gold Plated

Probe Length 33.35 mm

3A

120gf for test probe

Diameter 1.02mm Barrel

Different Tip Styles choose to order

Probe/ Receptacle is ordered Separately


Inquiry Now Download
Bare PCB 1.91 Pitch Spring Test Probe PL75 Pogo Pin 33.35MM Length 1.02 MM Diameter Gold plated TIP Styles to Order
Bare PCB 1.91 Pitch Spring Test Probe PL75 Pogo Pin 33.35MM Length 1.02 MM Diameter Gold plated TIP Styles to Order
