Test Probe

HOME >> Products >> Connectors >> Test Probe

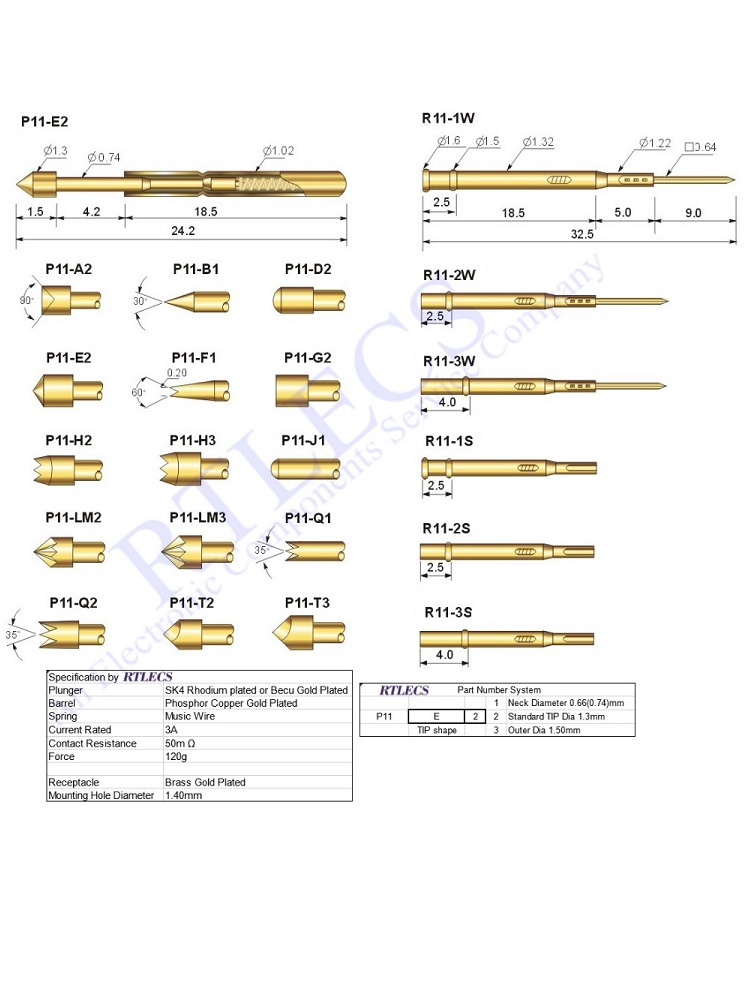

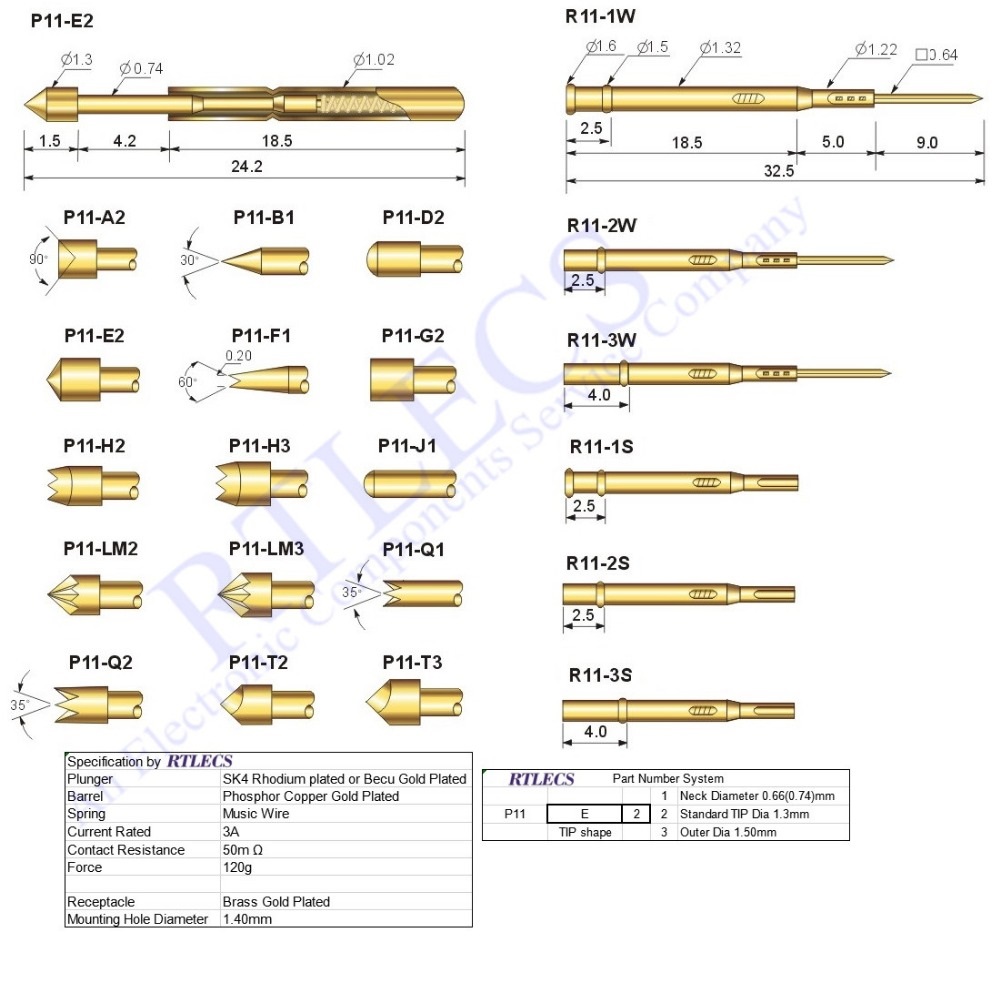

Bare PCB 1.91MM Pitch Spring Probe P11 Testing Pin 24.2MM Length 1.02MM Dia Gold plated TIP styles Sockets to Order
Bare PCB 1.91MM Pitch Spring Probe P11 Testing Pin 24.2MM Length 1.02MM Dia Gold plated TIP styles Sockets to Order

1.91 mm Pitch Min to Test

Spring Test Probe P11

Receptacle Series R11

Bare PCB Pitch 1.91mm Minimum Distance Testing Sping Pin

Gold Plated

Probe Length 24.2 mm

3A

120gf for test probe

Diameter 1.02mm Barrel

Different Tip Styles choose to order

Probe/ Receptacle is ordered Separately


Inquiry Now Download
Bare PCB 1.91MM Pitch Spring Probe P11 Testing Pin 24.2MM Length 1.02MM Dia Gold plated TIP styles Sockets to Order
Bare PCB 1.91MM Pitch Spring Probe P11 Testing Pin 24.2MM Length 1.02MM Dia Gold plated TIP styles Sockets to Order
