Test Probe

HOME >> Products >> Connectors >> Test Probe

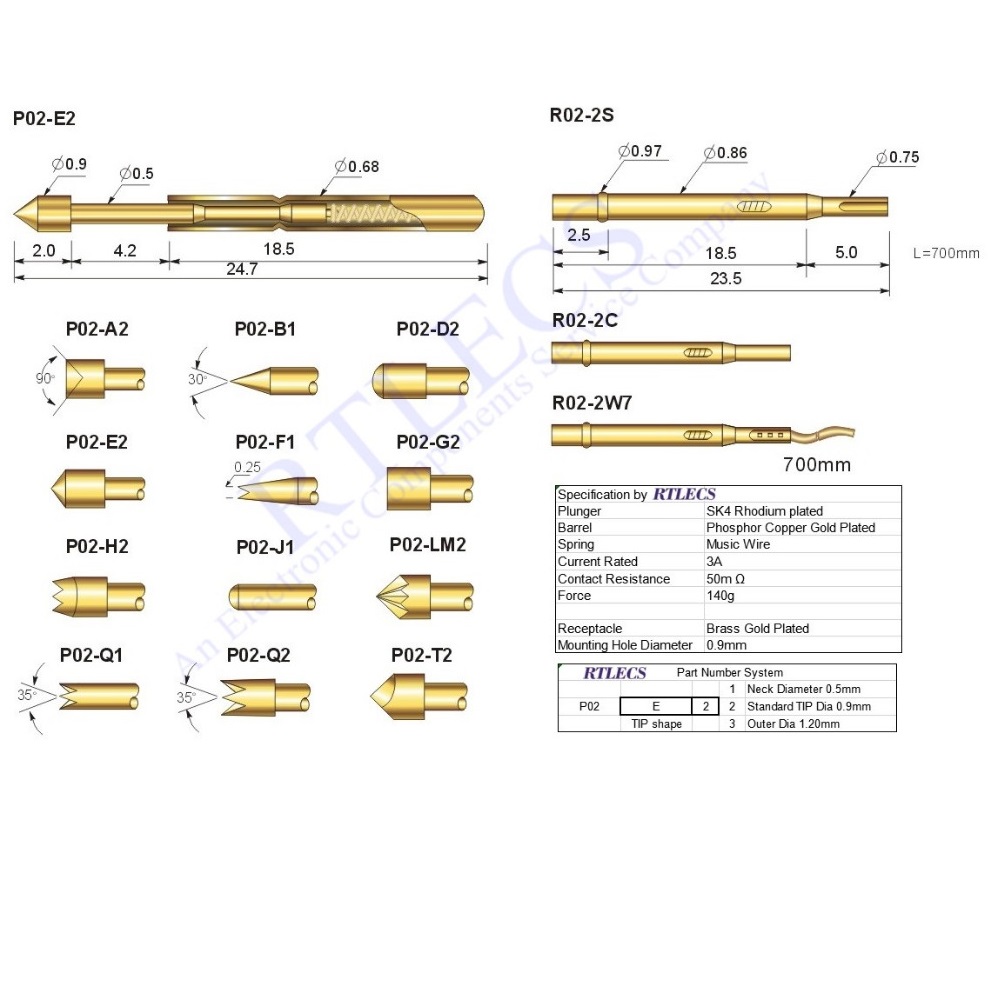

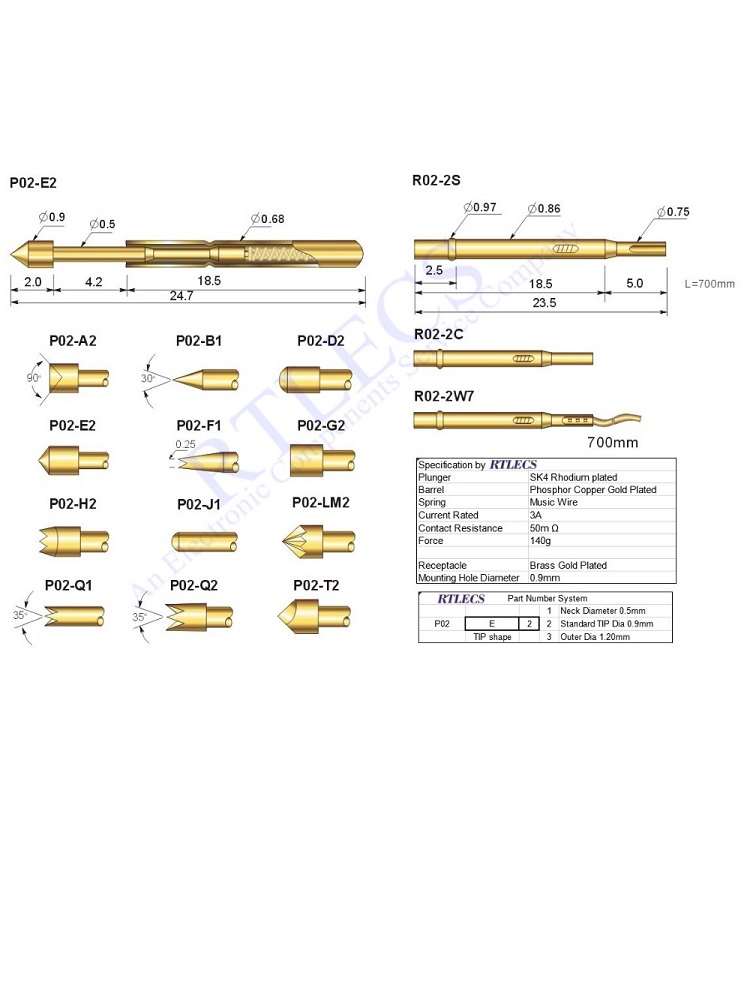

Bare PCB 1.27 MM Pitch Spring Test Probe P02 Pin 24.7MM Length 0.68mm Dia Gold plate TIP styles Sockets to Order
Bare PCB 1.27 MM Pitch Spring Test Probe P02 Pin 24.7MM Length 0.68mm Dia Gold plate TIP styles Sockets to Order

Bare PCB1.27 mm Pitch Min to Test

Spring Test Probe P02

Receptacle Series R02

Testing Sping Pin

Gold Plated

Probe Length 24.7 mm

3A

140gf for test probe

Diameter 0.68mm Barrel

Different Tip Styles choose to order

Probe/ Receptacle is ordered Separately


Inquiry Now Download
Bare PCB 1.27 MM Pitch Spring Test Probe P02 Pin 24.7MM Length 0.68mm Dia Gold plate TIP styles Sockets to Order
Bare PCB 1.27 MM Pitch Spring Test Probe P02 Pin 24.7MM Length 0.68mm Dia Gold plate TIP styles Sockets to Order
