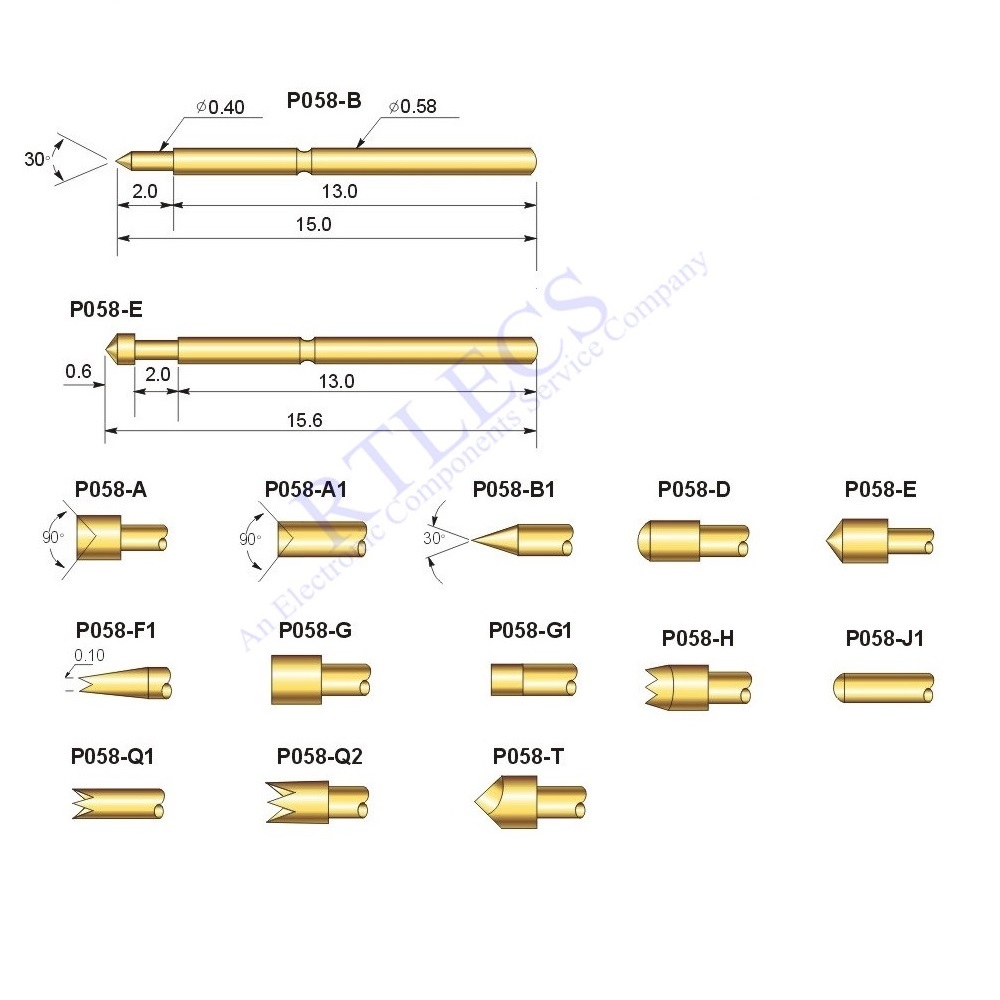

1.0 MM Pitch Min Spring Test Probe P058 Bare PCB Testing Pin 0.58 Dia Gold plated TIP Styles Sockets to Order
1.0 MM Pitch Min Spring Test Probe P058 Bare PCB Testing Pin 0.58 Dia Gold plated TIP Styles Sockets to Order

1.0 mm Pitch Min to Test

Spring Test Probe P058

Bare PCB Testing Pin

Gold Plated

Length 15.0  15.6 mm

Socket Receptacle 0.58 mm Diameter

Gold plated TIP

Different Tip Styles choose to order

Probe/ Receptacle is ordered Separately


Inquiry Now Download
1.0 MM Pitch Min Spring Test Probe P058 Bare PCB Testing Pin 0.58 Dia Gold plated TIP Styles Sockets to Order

Plunger

SK4 Rhodium plated

Barrel

Phosphor Copper Gold Plated

Spring

Music Wire

Current Rated

2A

Contact Resistance

50m Ω

Force

70g

TIP Plated

Gold



Receptacle

Brass Gold Plated

Mounting Hole Diameter

0.75mm
