2.54mm 16 Position 180 Degree Male Shrouded PCB IDC Socket Box Header Connector
2.54mm 16 Position 180 Degree Male Shrouded PCB IDC Socket Box Header Connector

1. Current rating: 3.0AMP

2. Operation temperature -40°C to +105°C

3. Contact resistance: 20mΩ Max
4. Insulation resistance: 1000MΩ Min
5.Withstanding Voltage: AC/DC 1000V
6. Insulator material: Polyester(UL94V- 0)
7. Contact material: Brass
8. Contact plating: Au or Sn ove 50u" Ni


Inquiry Now Download

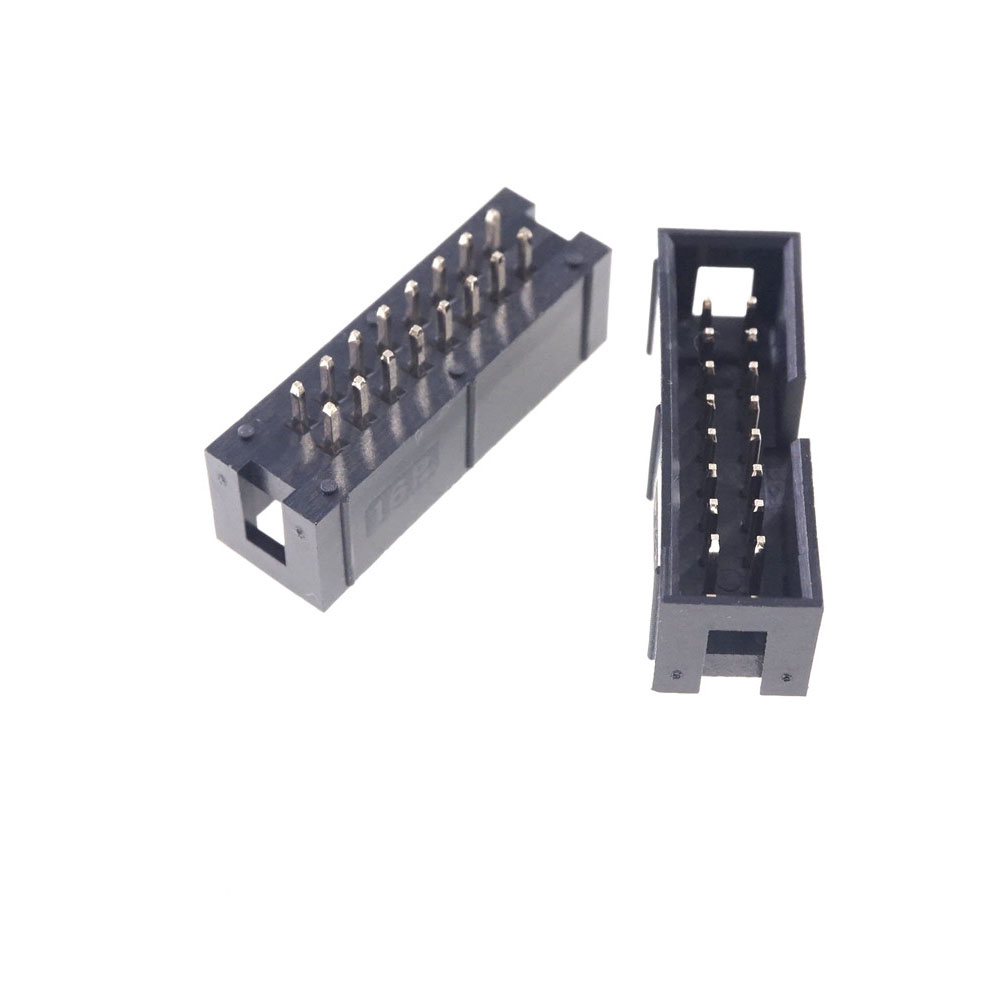

2.54mm 16 Position 180 Degree Male Shrouded PCB IDC Socket Box Header Connector

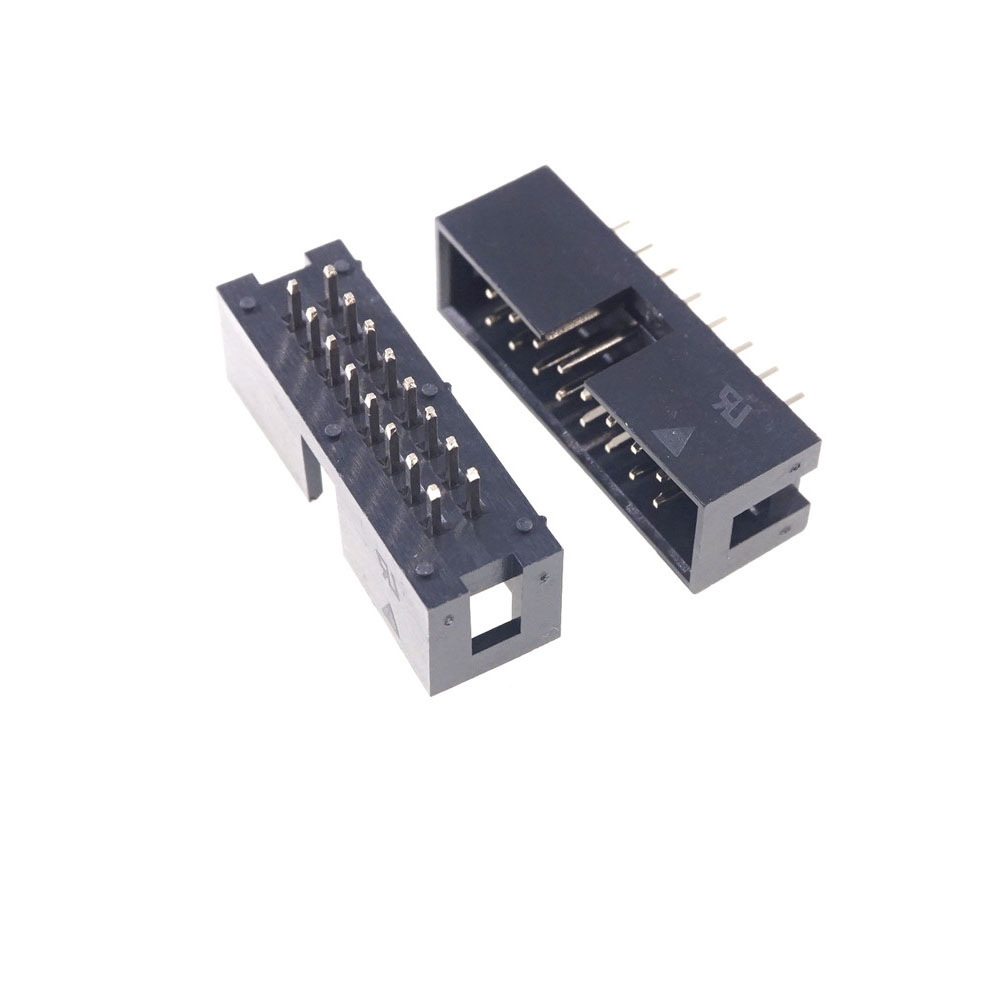

2.54mm 16 Position 180 Degree Male Shrouded PCB IDC Socket Box Header Connector

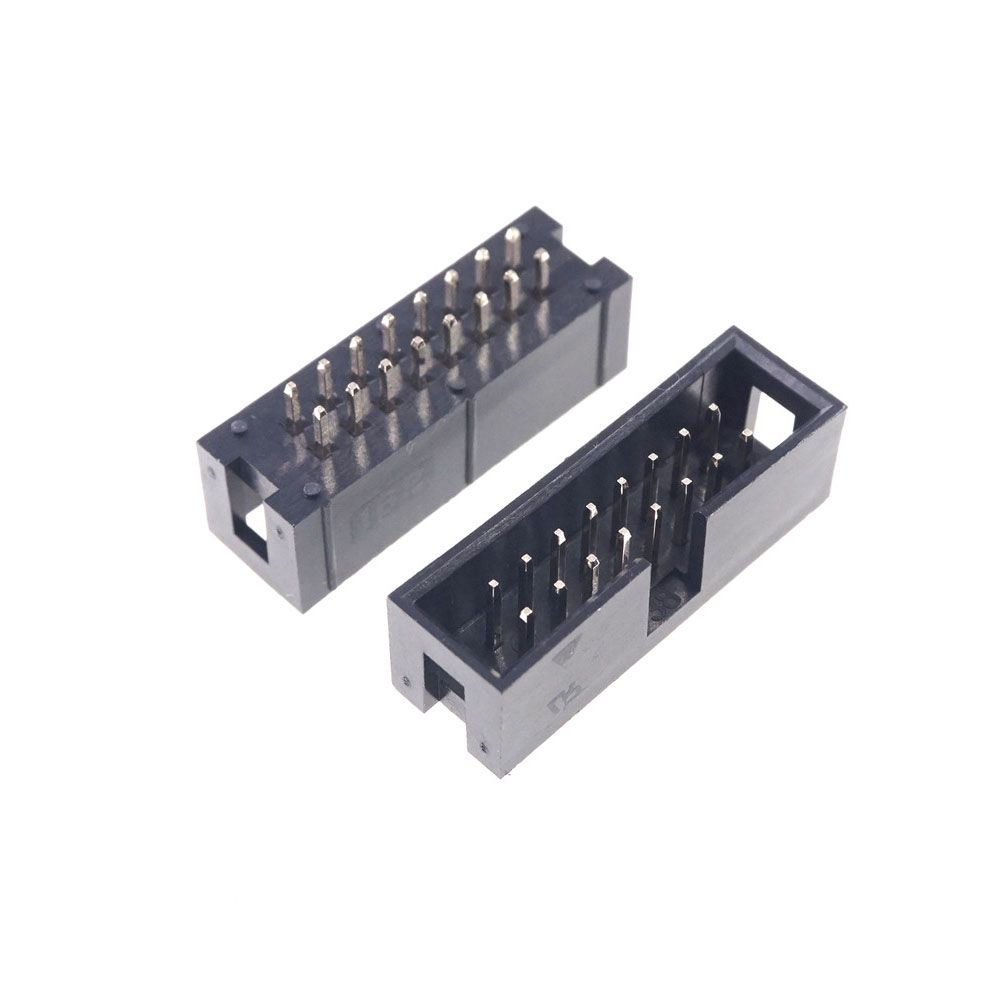

2.54mm 16 Position 180 Degree Male Shrouded PCB IDC Socket Box Header Connector

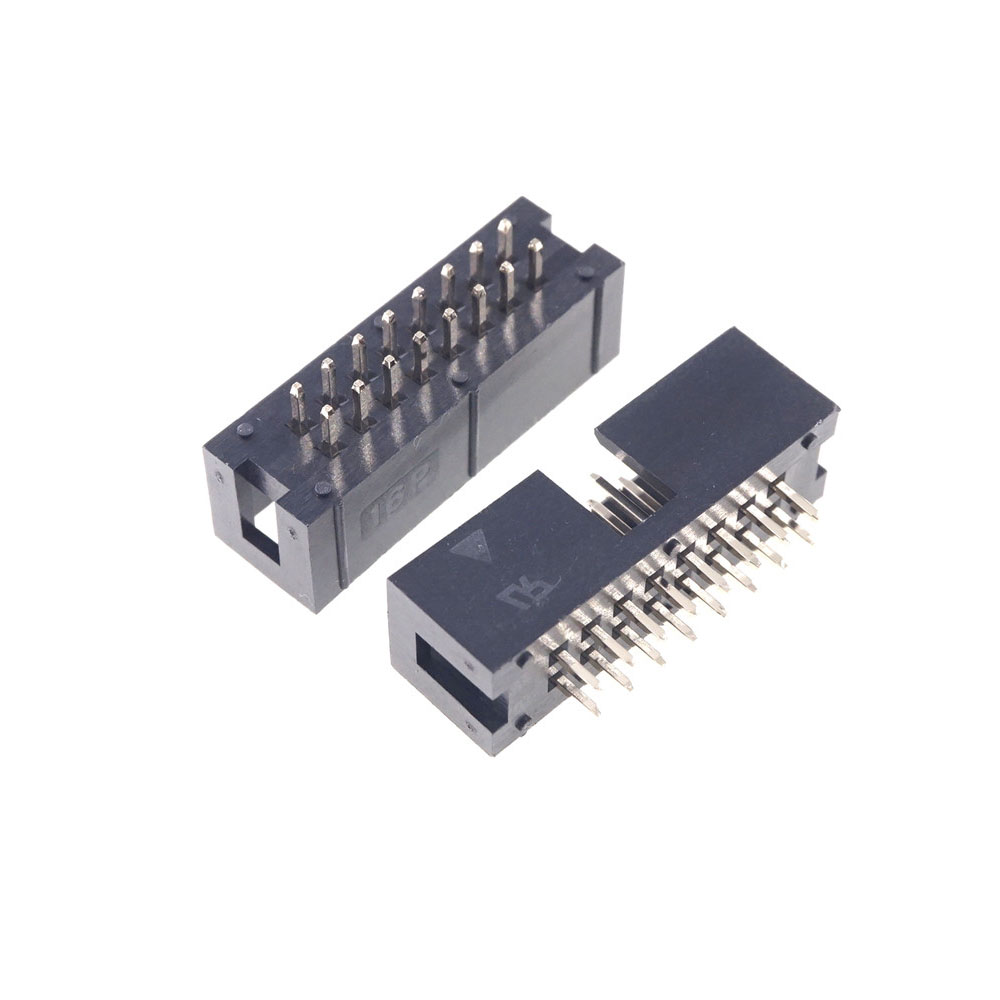

2.54mm 16 Position 180 Degree Male Shrouded PCB IDC Socket Box Header Connector

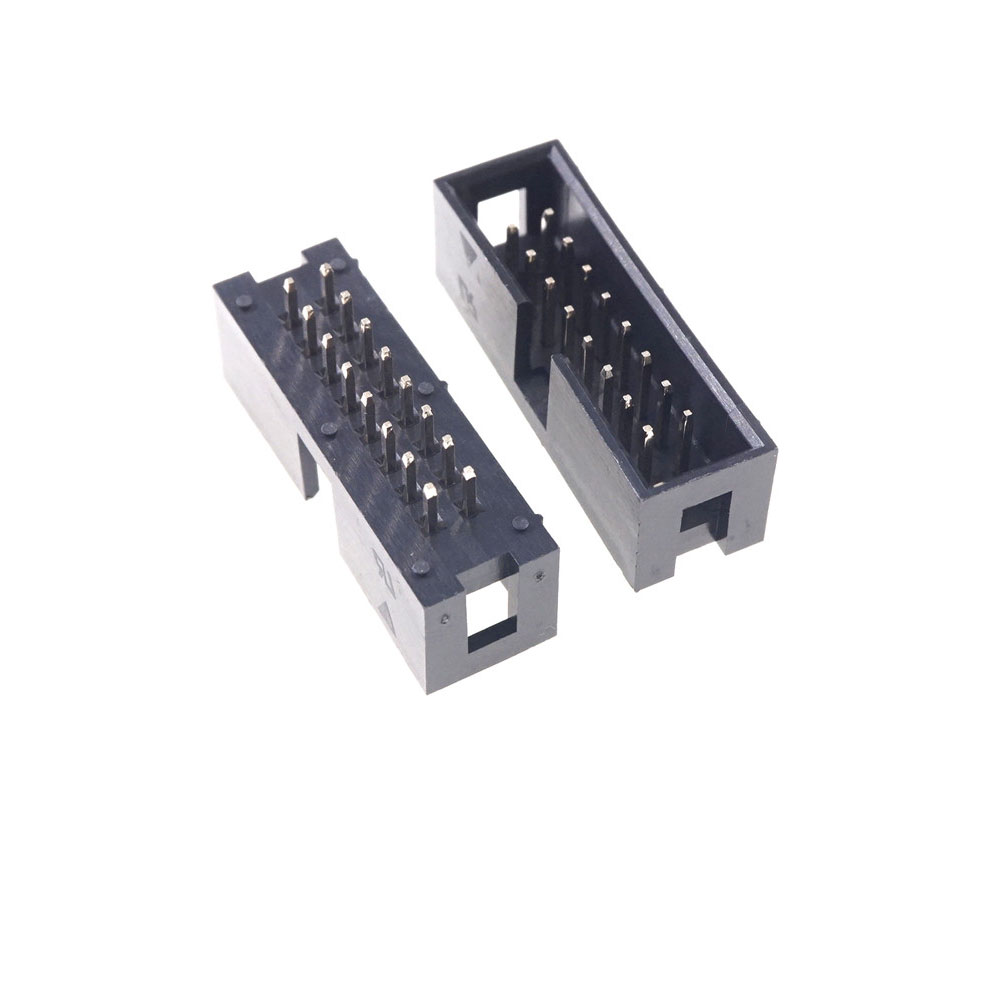

2.54mm 16 Position 180 Degree Male Shrouded PCB IDC Socket Box Header Connector

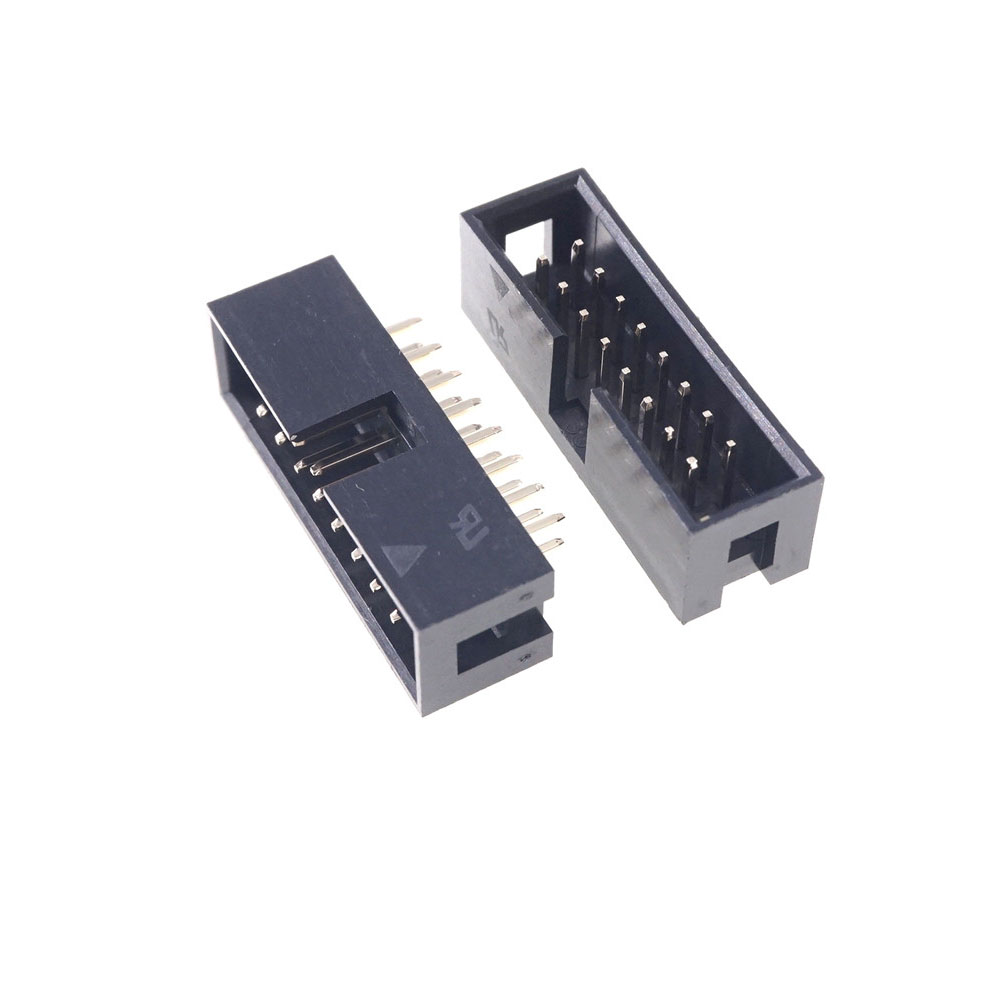

2.54mm 16 Position 180 Degree Male Shrouded PCB IDC Socket Box Header Connector
