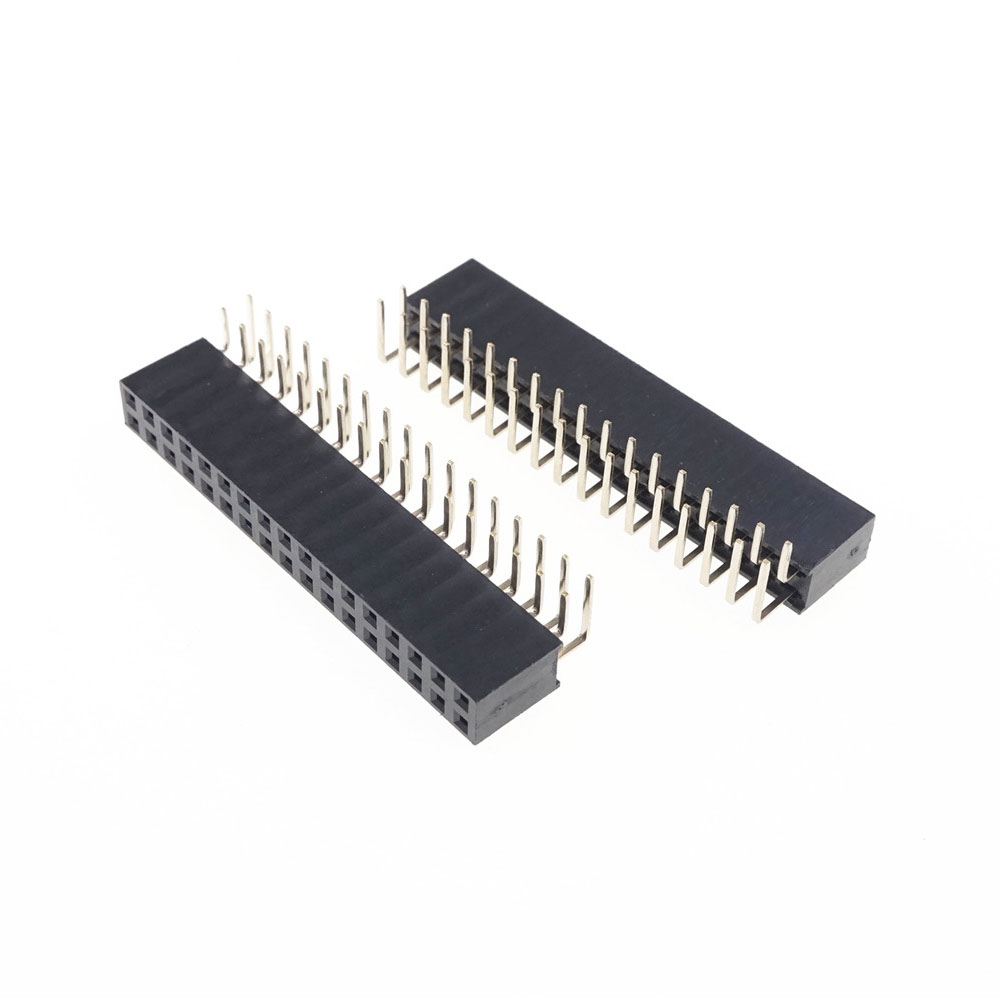

PCB Female Header 2.54 mm 0.100" Pitch 2x17 Pin 34 Position Dual Row Right Angle Through Holes Edge Mount horizontal-2.54 mm Pitch Dual Row-

PCB Female Header 2.54 mm 0.100" Pitch 2x17 Pin 34 Position Dual Row Right Angle Through Holes Edge Mount horizontal

2.54 mm 0.100" Pitch 2x17Pin Dual Row PCB Female Header Through Holes Mount PCB

1. Current rating: 3.0AMP

2. Operation temperature -40°C to +105°C

3. Contact resistance: 20mΩ Max

4. Insulation resistance: 1000MΩ Min

5.Withstanding Voltage: AC/DC 1000V

6. Insulator material: Polyester(UL94V- 0)

7. Contact material: Brass

8. Contact plating: Au or Sn ove 50u" Ni
