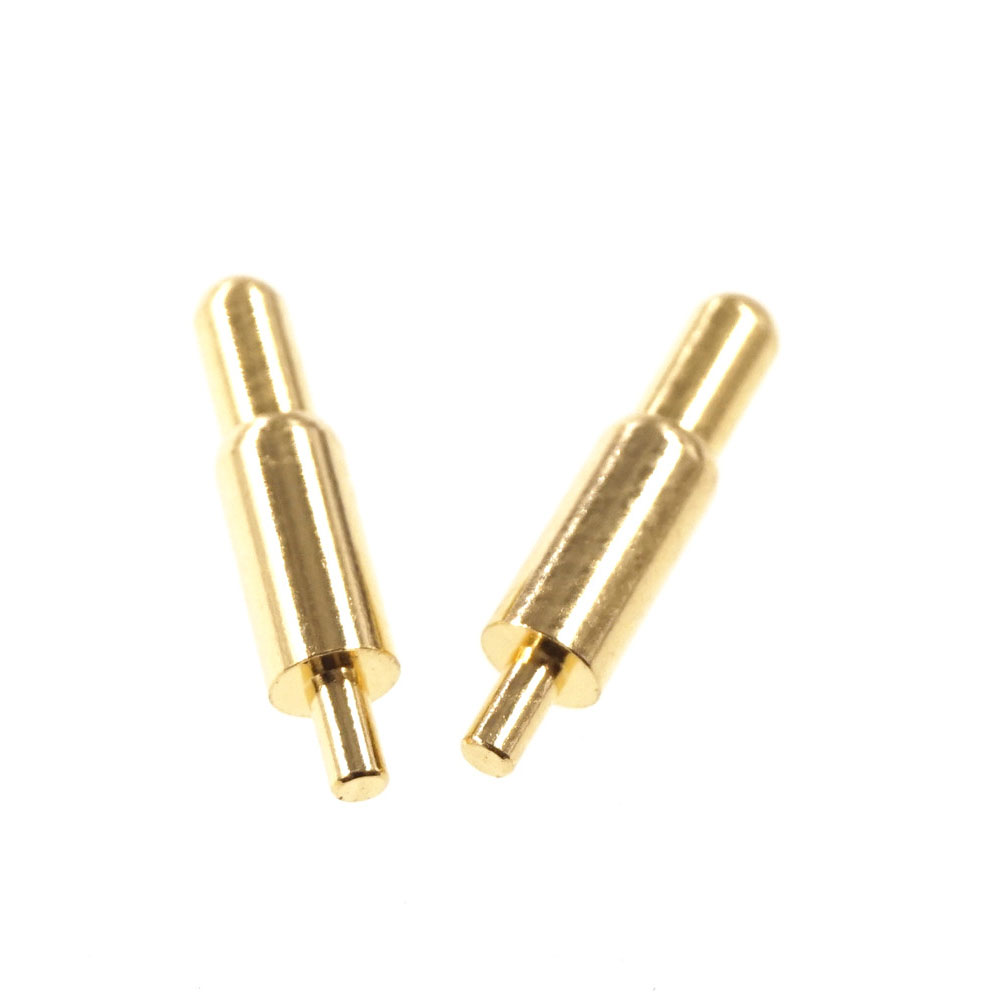

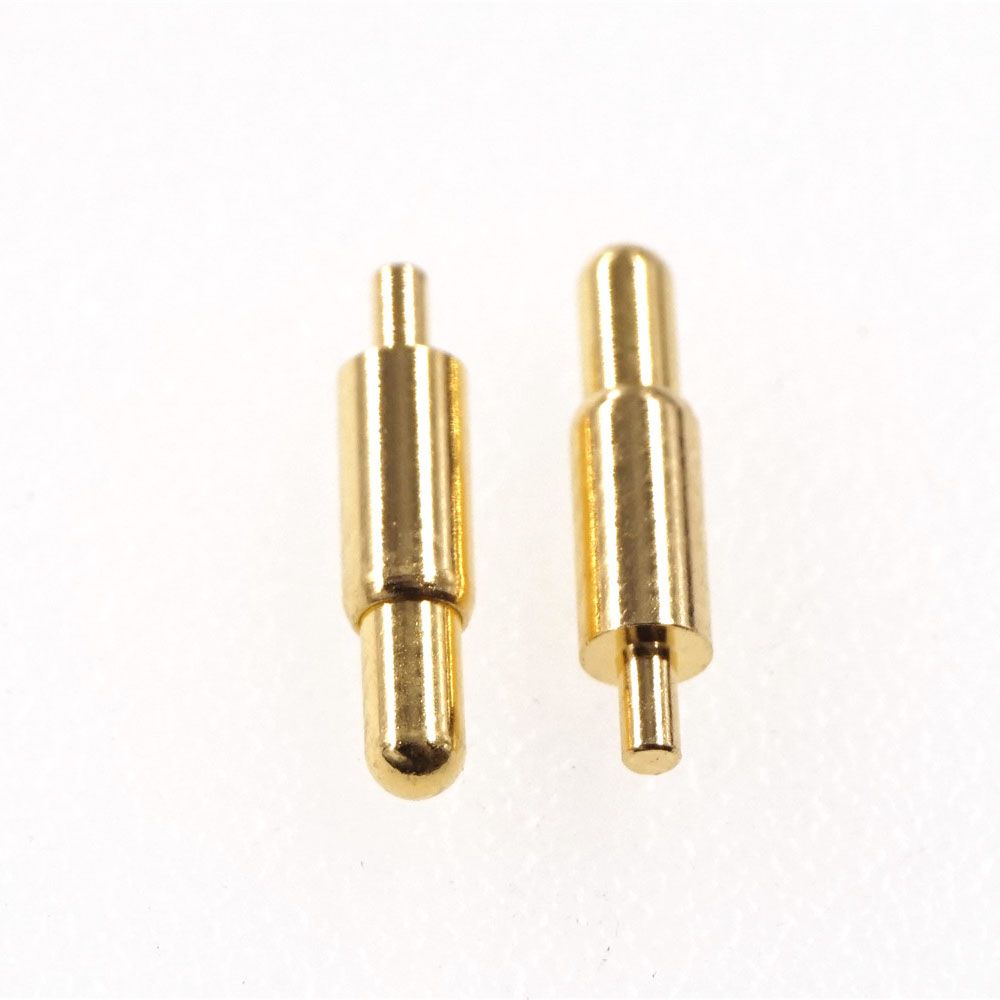

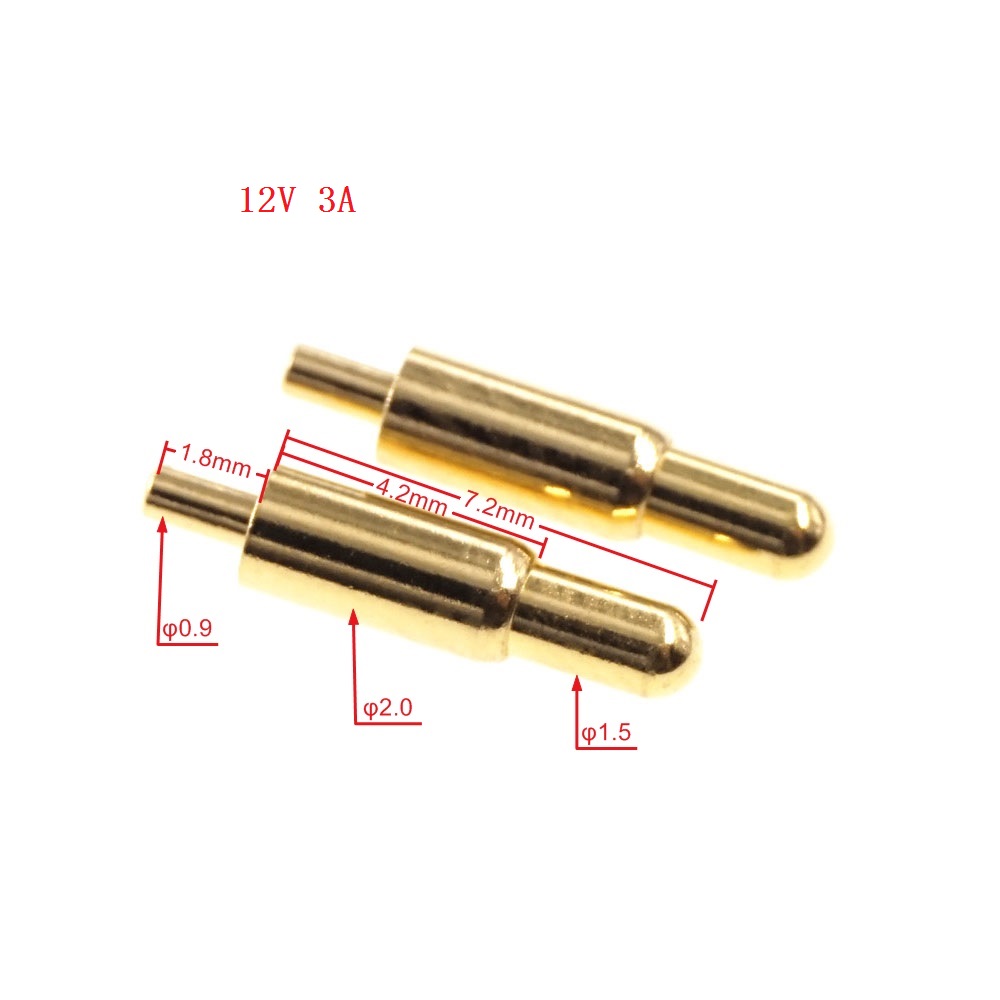

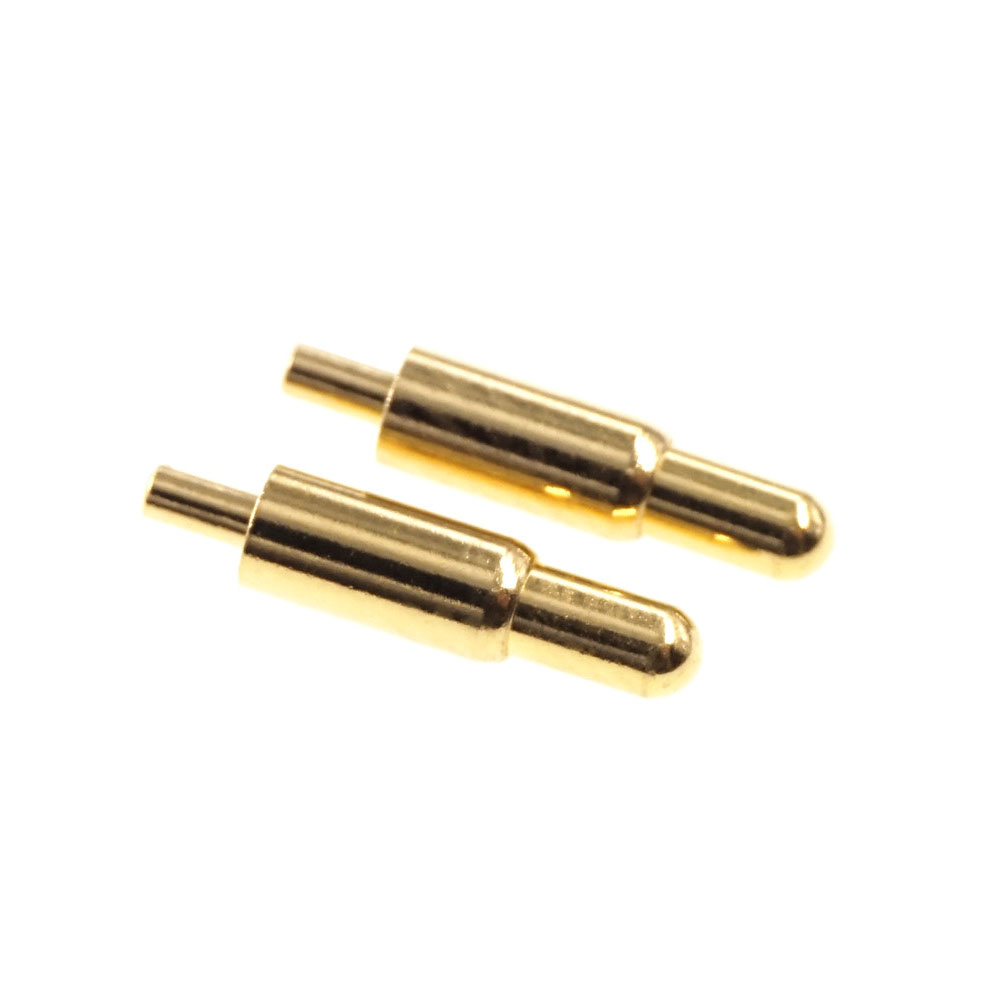

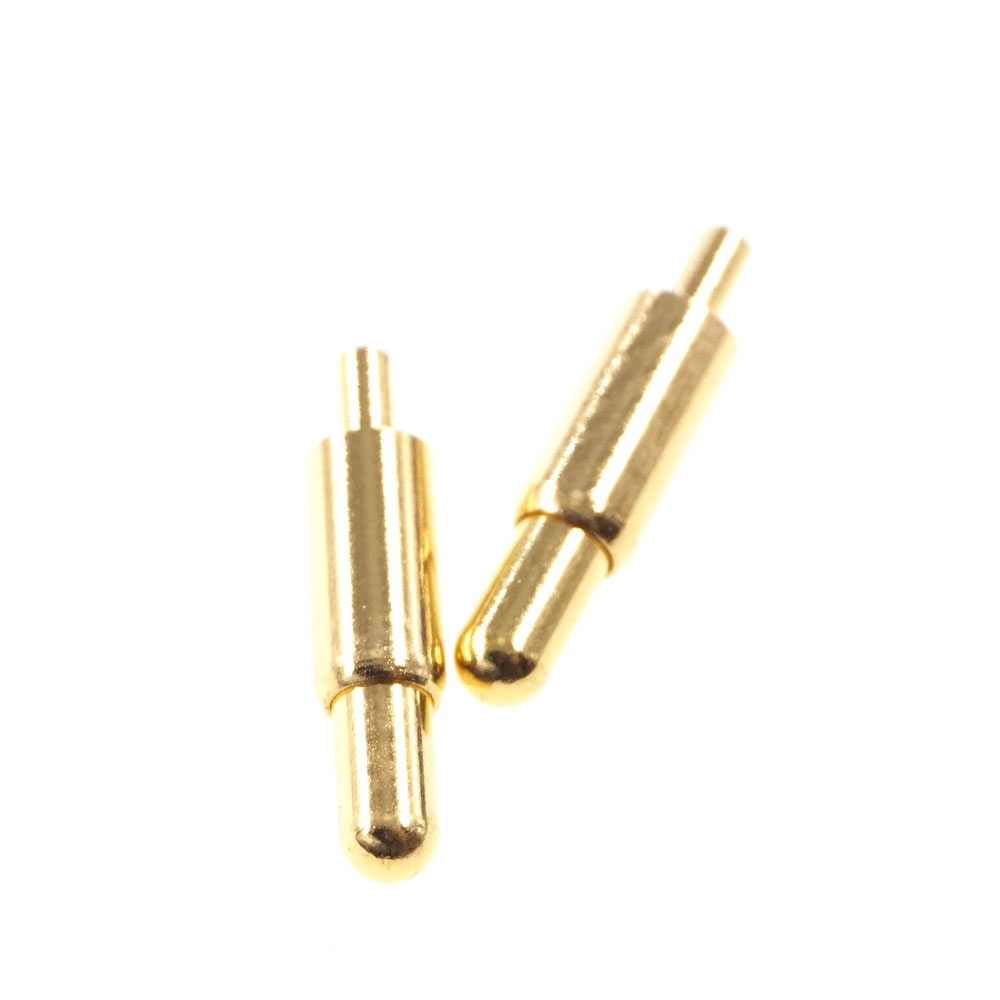

Spring Loaded Pogo Pin Connector Barrel Diameter 2.0 mm Through Holes PCB Height 9.0 mm Vertical-Single Spring Pin Through Hole-

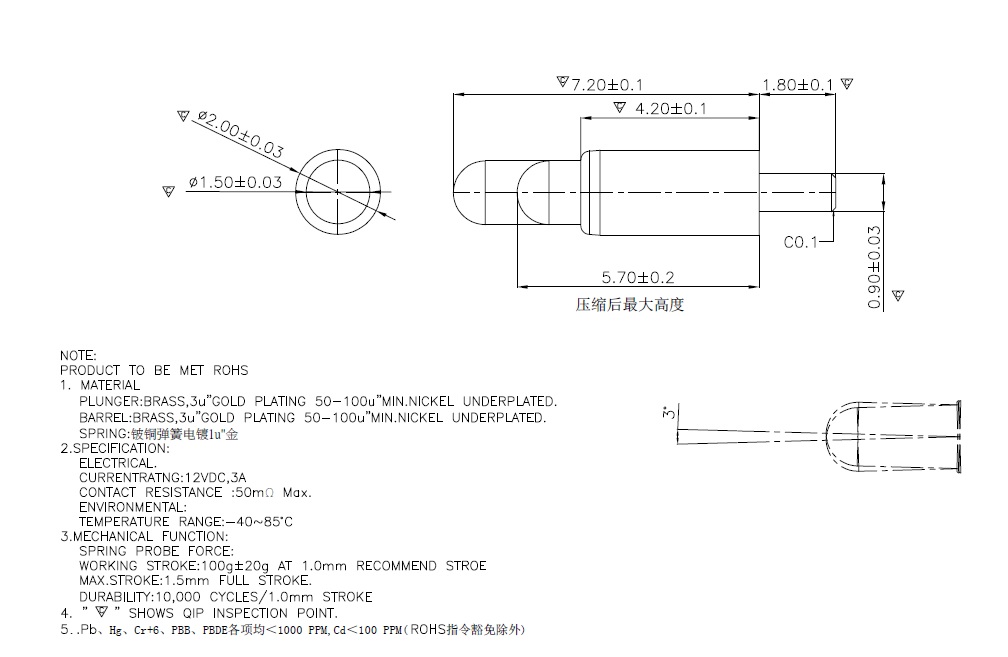

Spring Loaded Pogo Pin Connector Barrel Diameter 2.0 mm Through Holes PCB Height 9.0 mm Vertical

1.Material for plugger and body: Brass Alloy ,

Spring material: Stainless Steel Wire

2.Surface Treatment: Gold plated 1mirco inch, 3mirco inch over Nickle

3.Produce by: CNC Auto Lathe Machine

4.Sample leadtime: 5~8days

5.Application: Toy, Automotive, Instrument, Electronic Equippment,Battery Charge

Electronic:

a. Current rating: 1A

b.Spring force:50g~120g,can make according client requirement

c. Life cycles: 10000 max

d.Contact Resistance:30m Ohm
