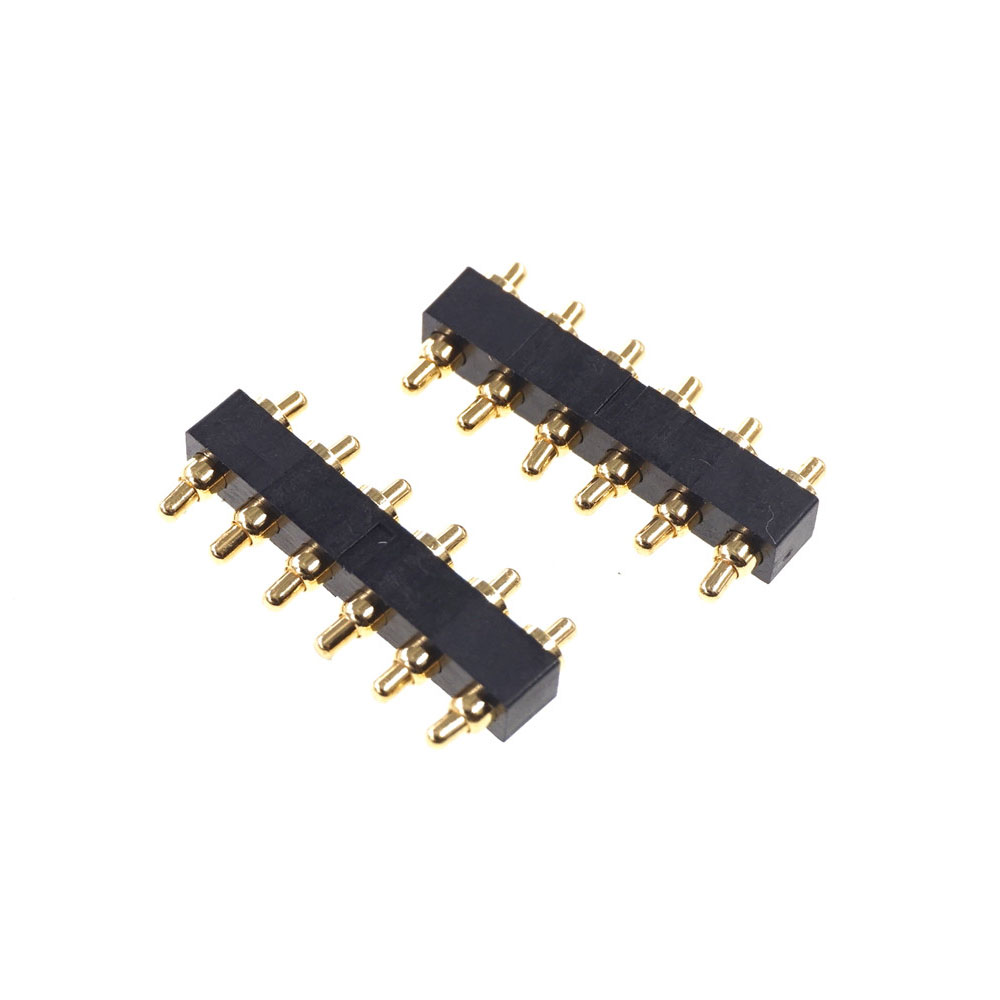

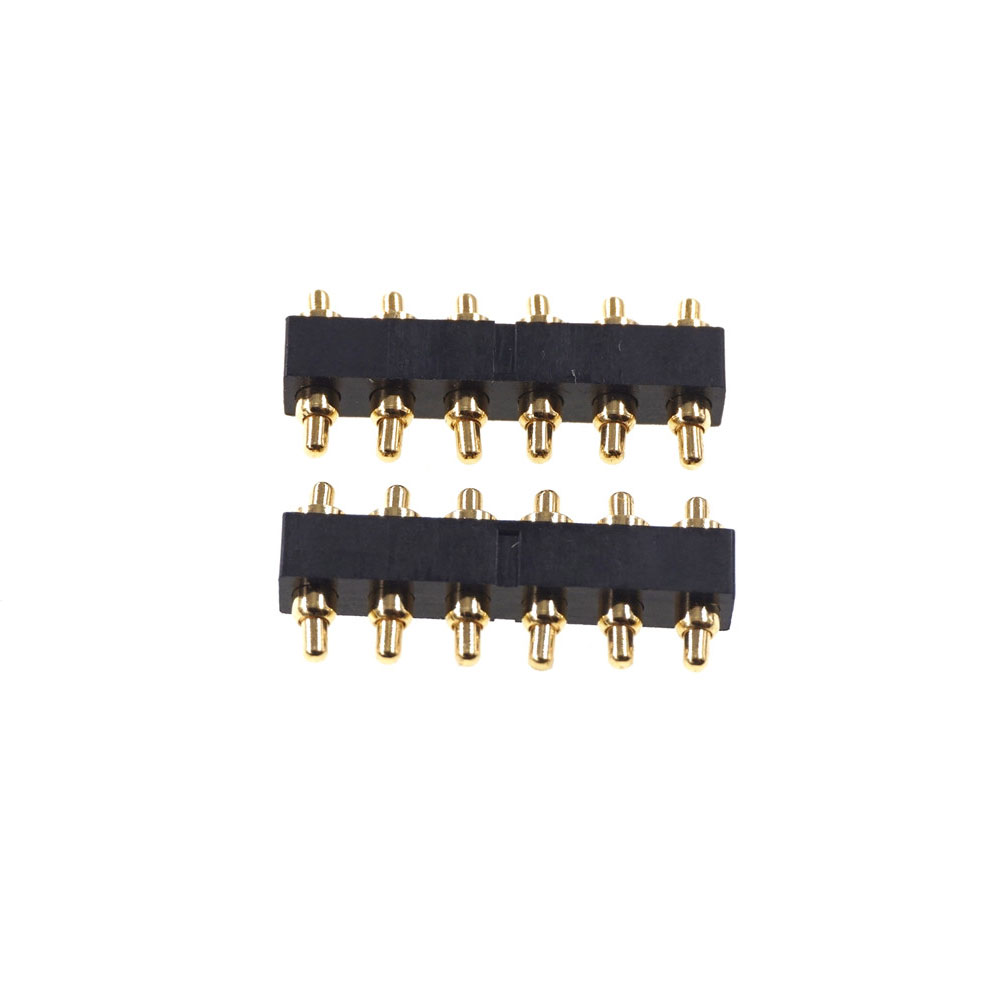

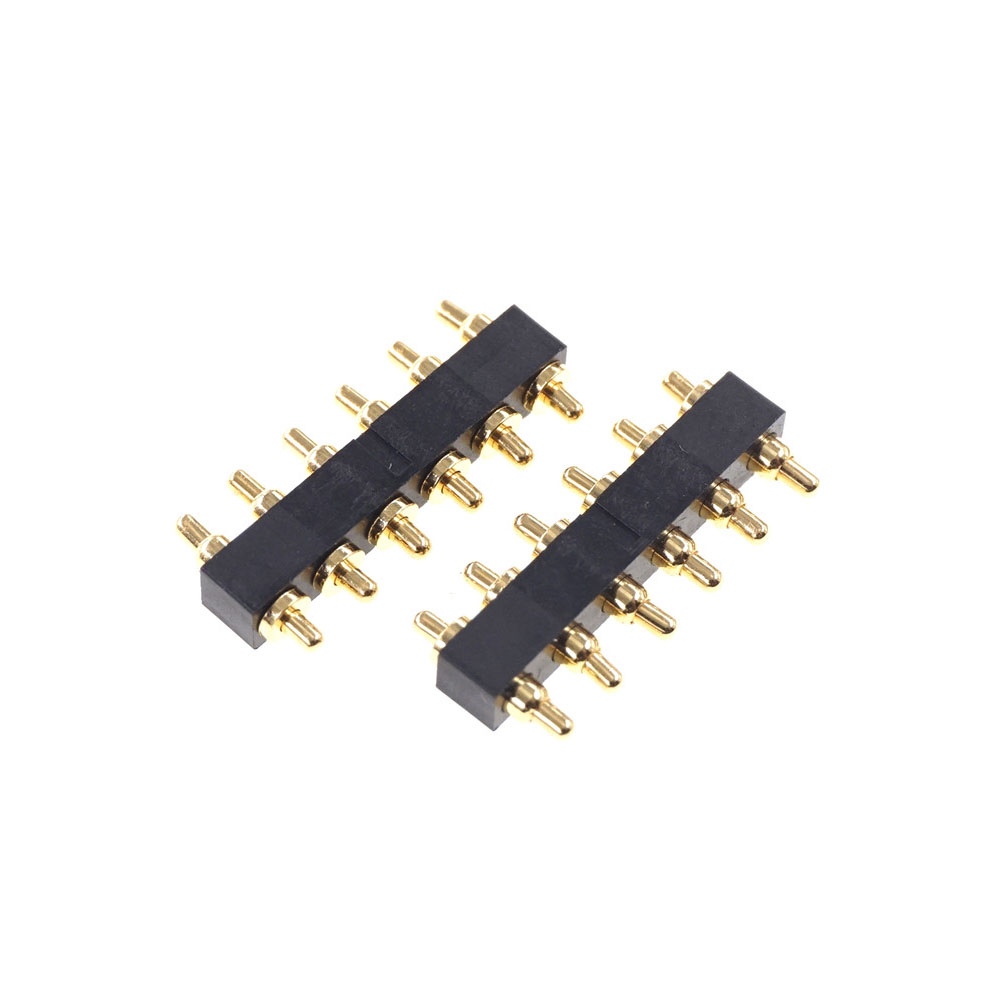

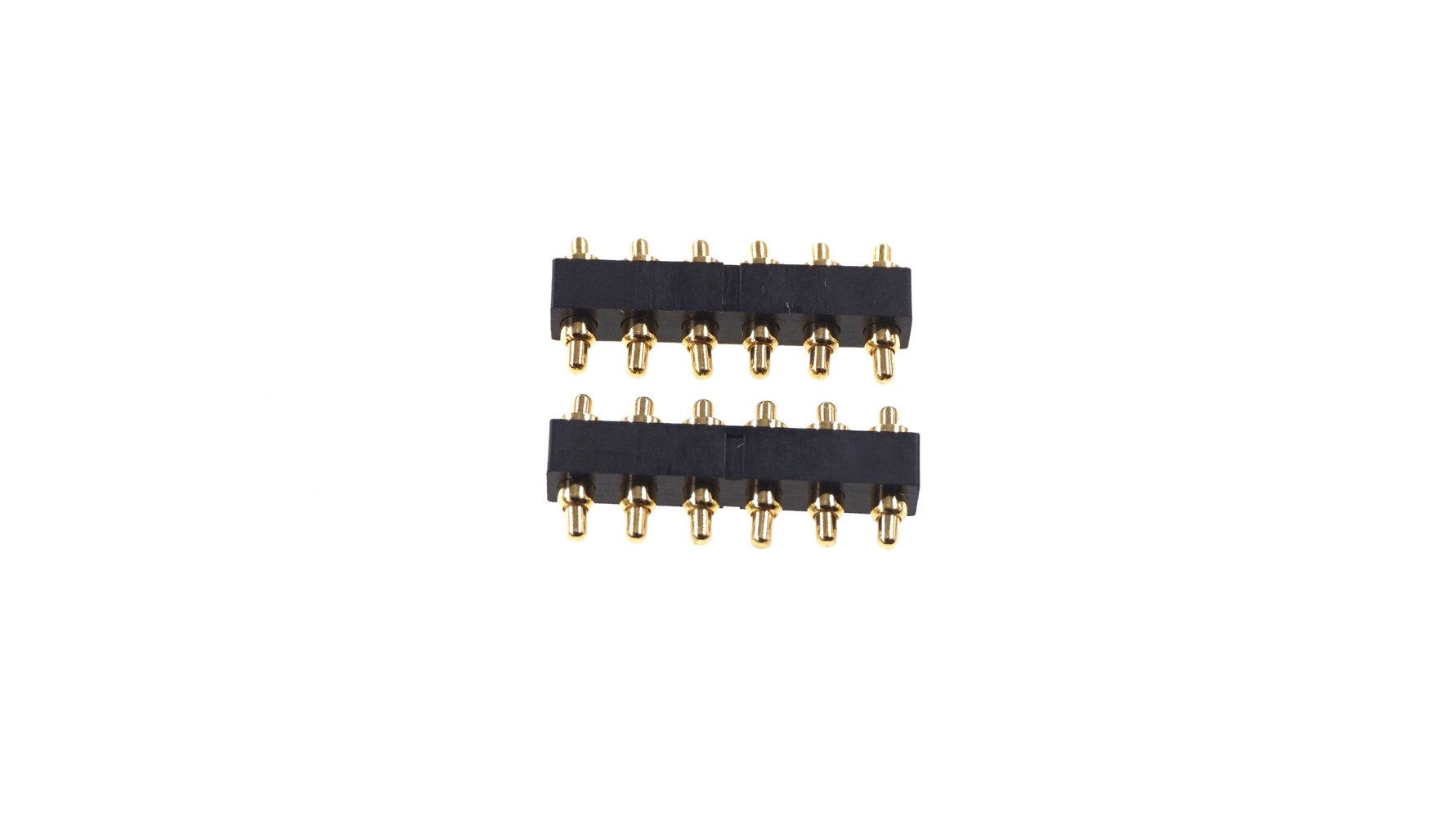

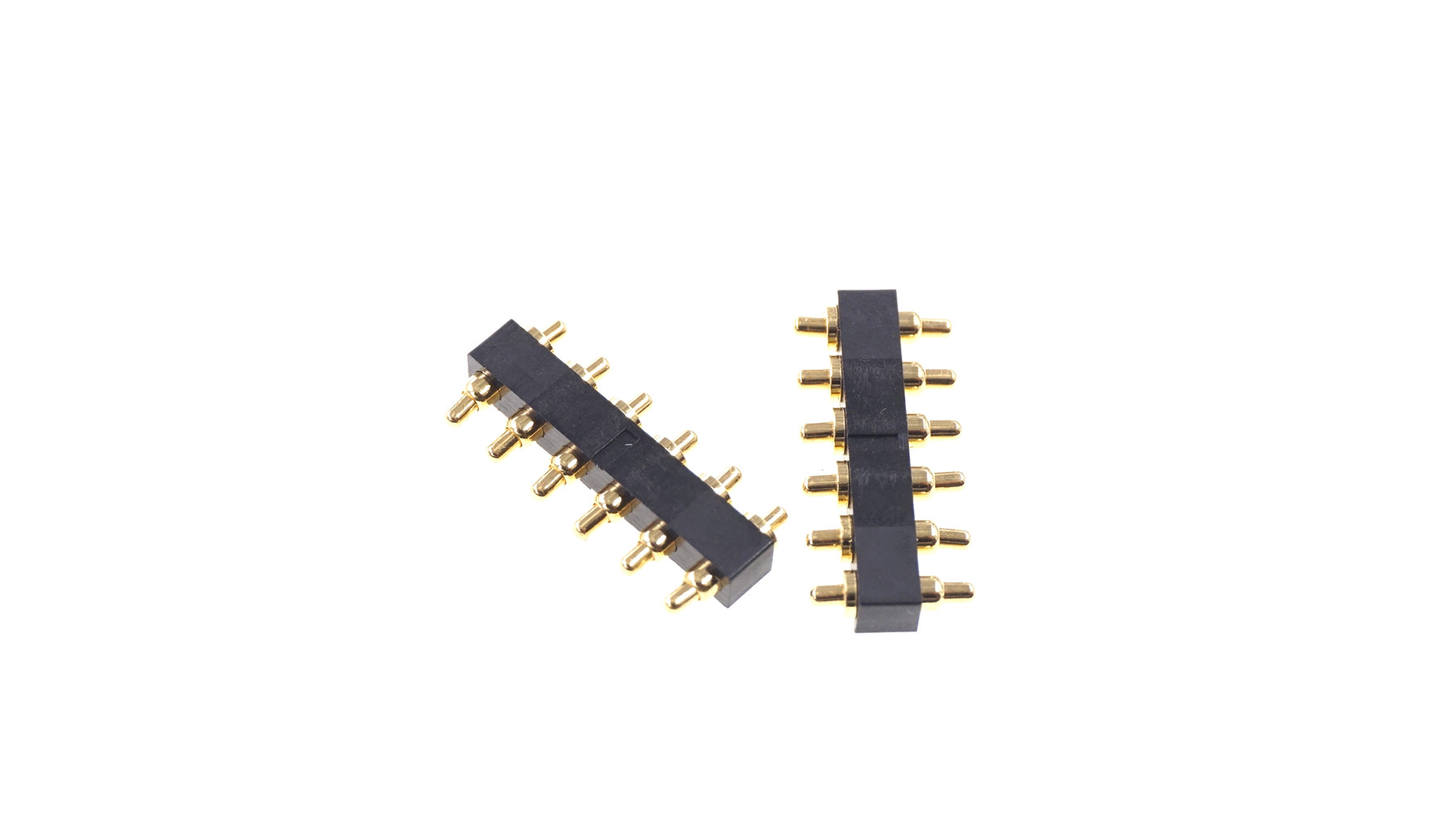

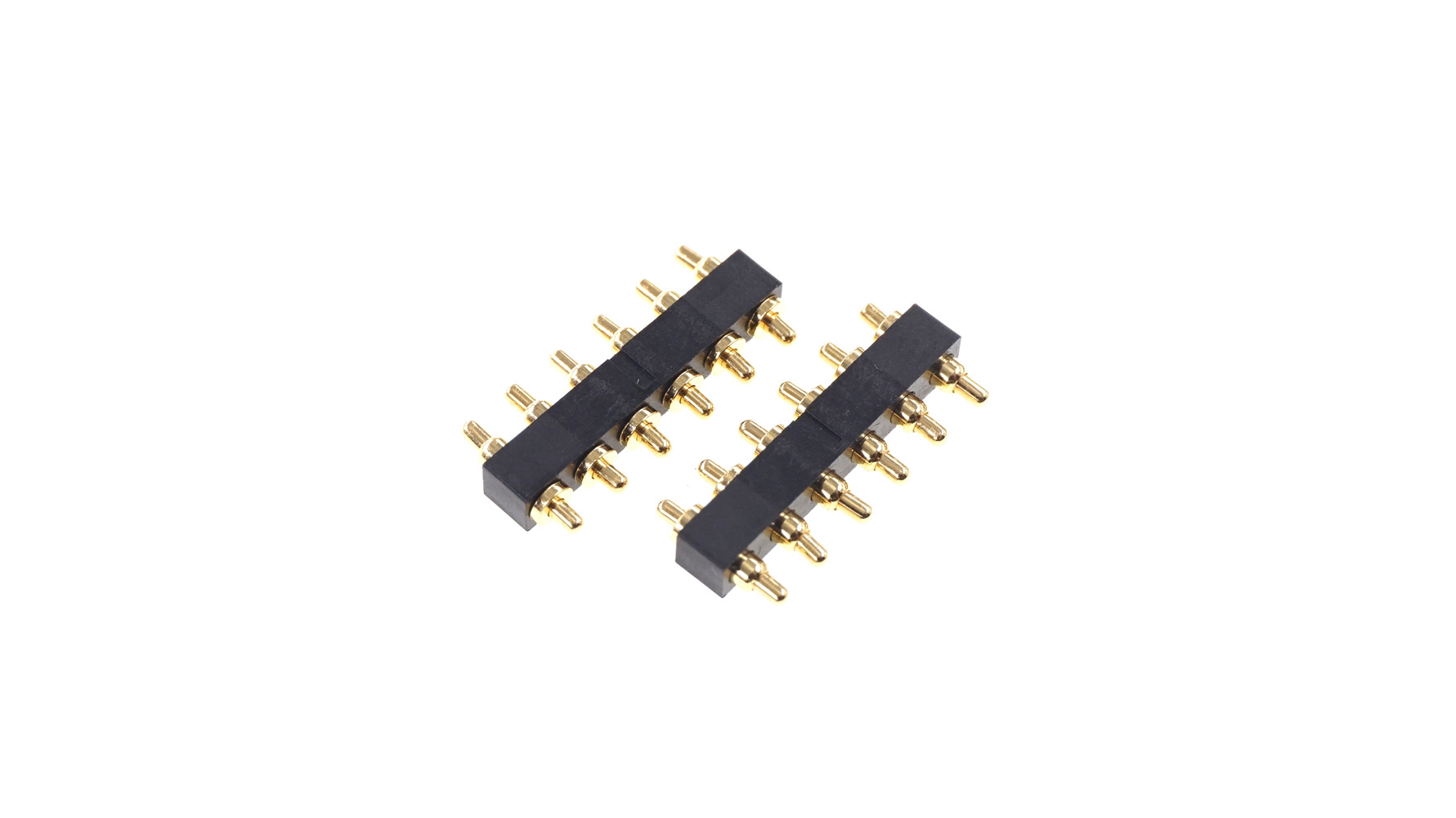

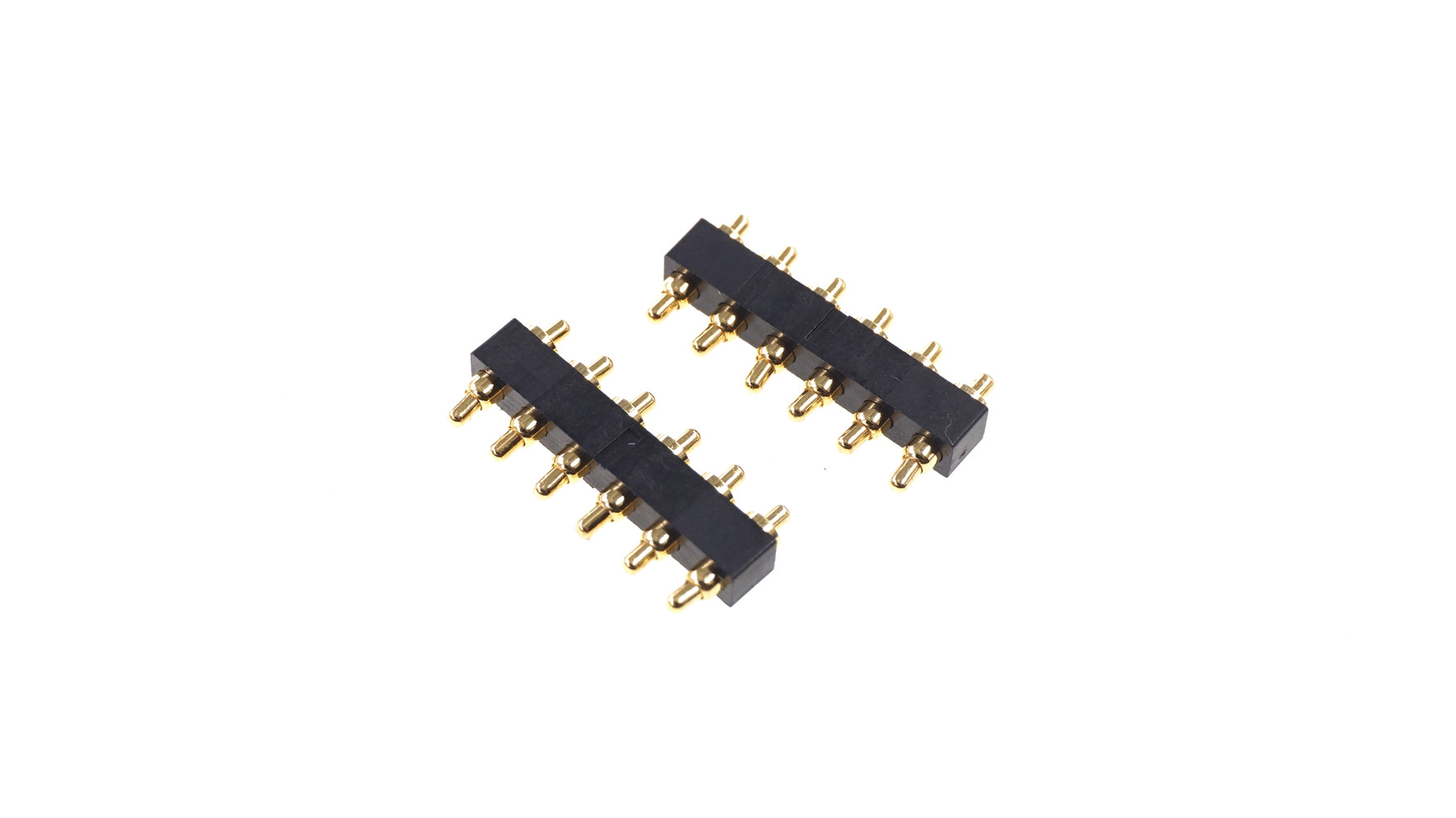

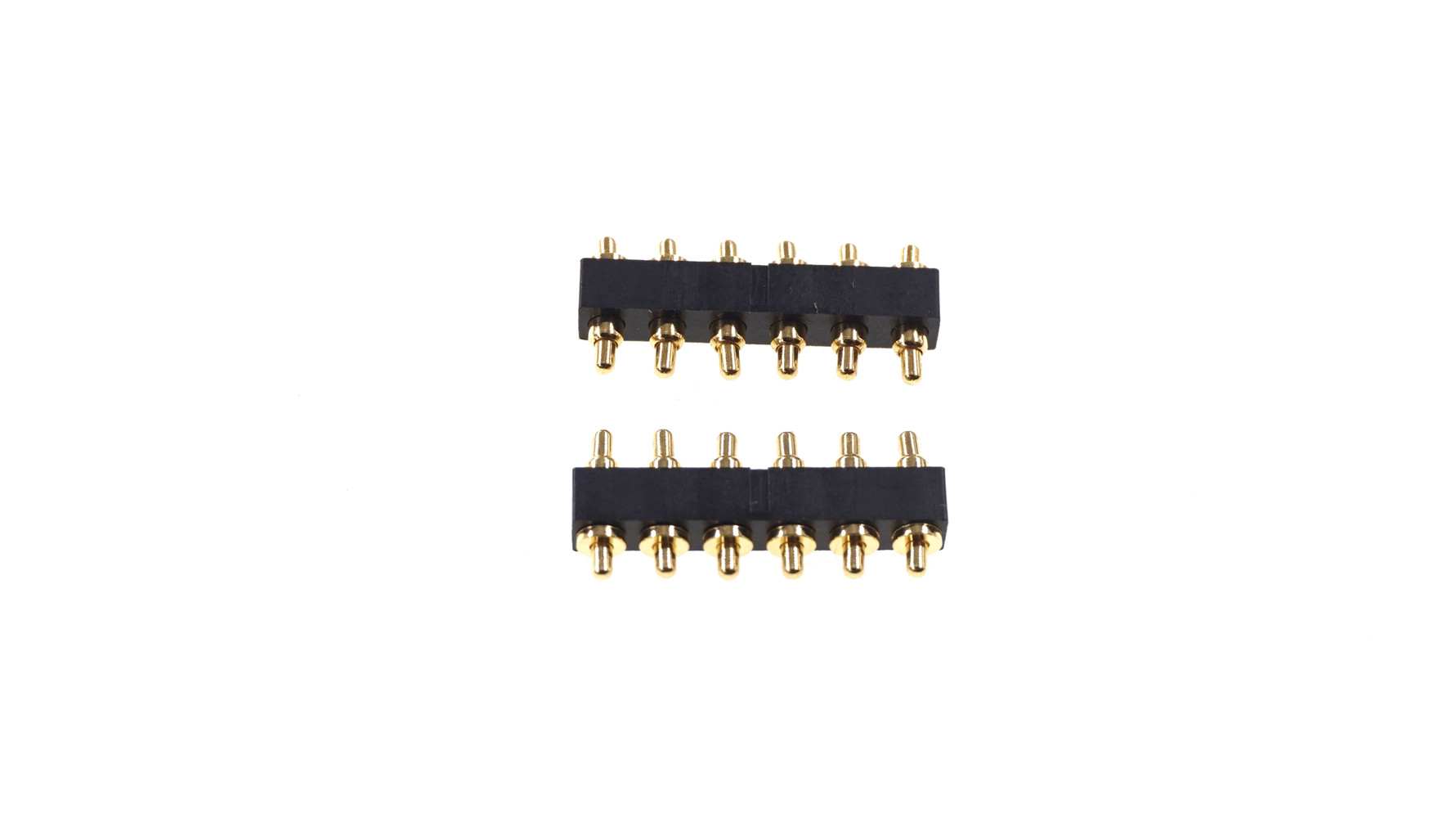

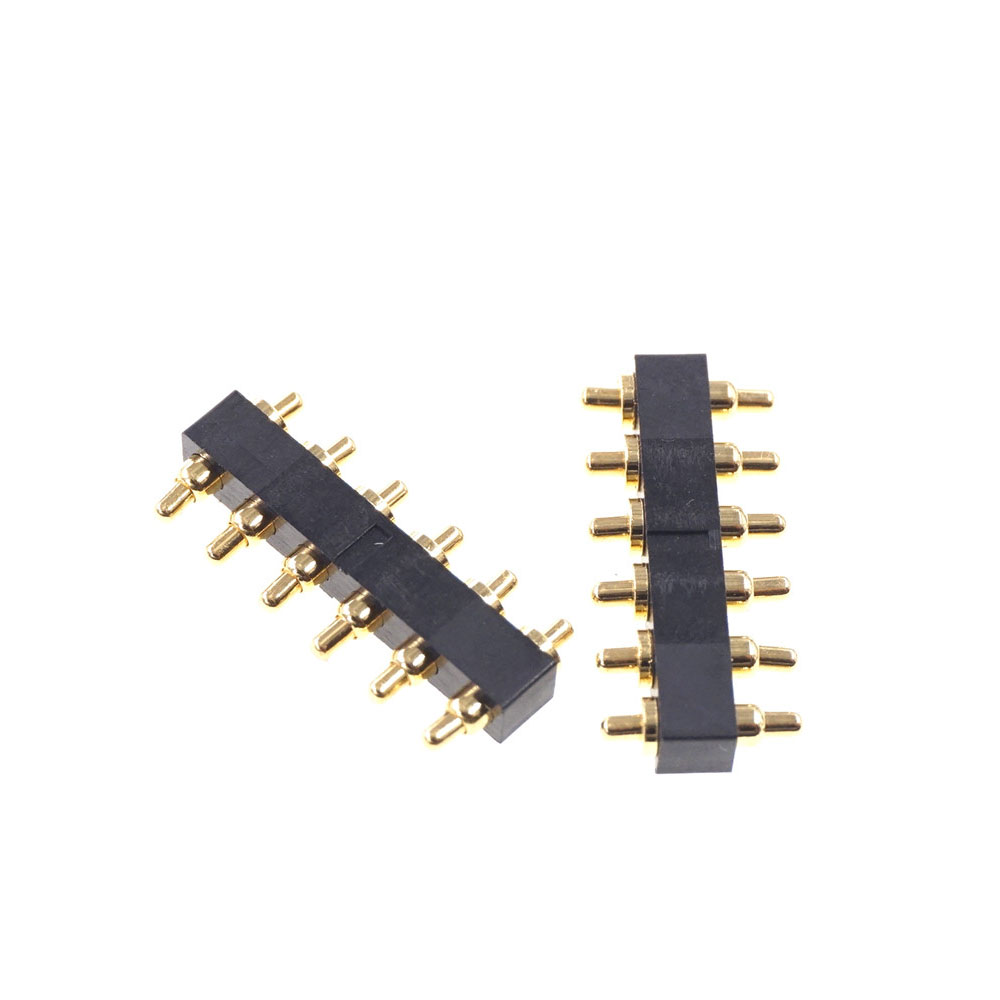

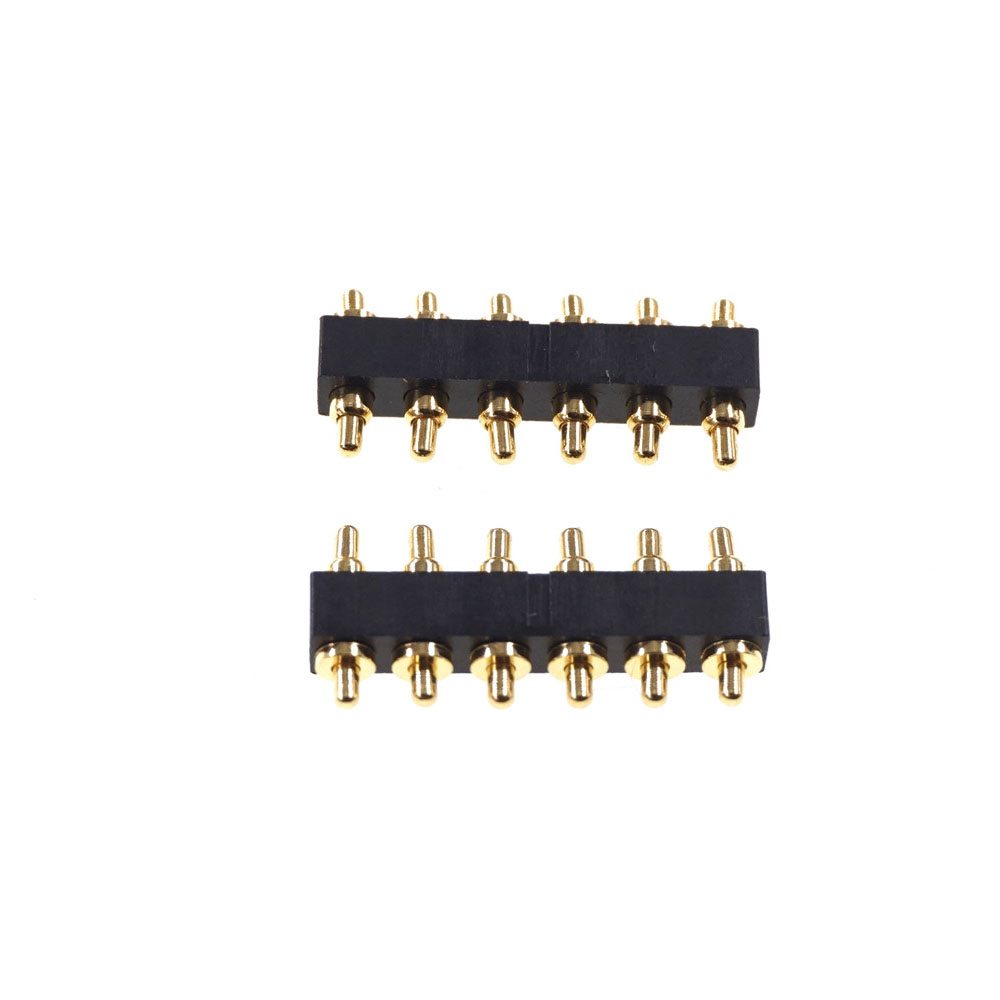

Spring Loaded Pogo Pin Connector 6 Position Double Actions 2.54 Grid 6.6mm Height Mount Parallel Circuit Boards Dual Head-Dual Action-

Spring Loaded Pogo Pin Connector 6 Position Double Actions 2.54 Grid 6.6mm Height Mount Parallel Circuit Boards Dual Head

Spring Loaded Pogo Pin Connector 6 Position Double Actions 2.54 Grid 6.6mm Height Mount Between Parallel Circuit Boards

1.Material for plugger and body: Brass Alloy ,

Spring material: Stainless Steel Wire

2.Surface Treatment: Gold plated 3 mirco inch, 3mirco inch over Nickle

3.Produce by: CNC Auto Lathe Machine

4.Sample leadtime: 5~8days

5.Application: TAutomotive, Instrument, Electronic Equippment,Battery Charge

Electronic:

a. Current rating: 2A

b.Spring force:80g~120g,can make according client requirement

c. Life cycles: 10000 max

d.Contact Resistance:30m Ohm
