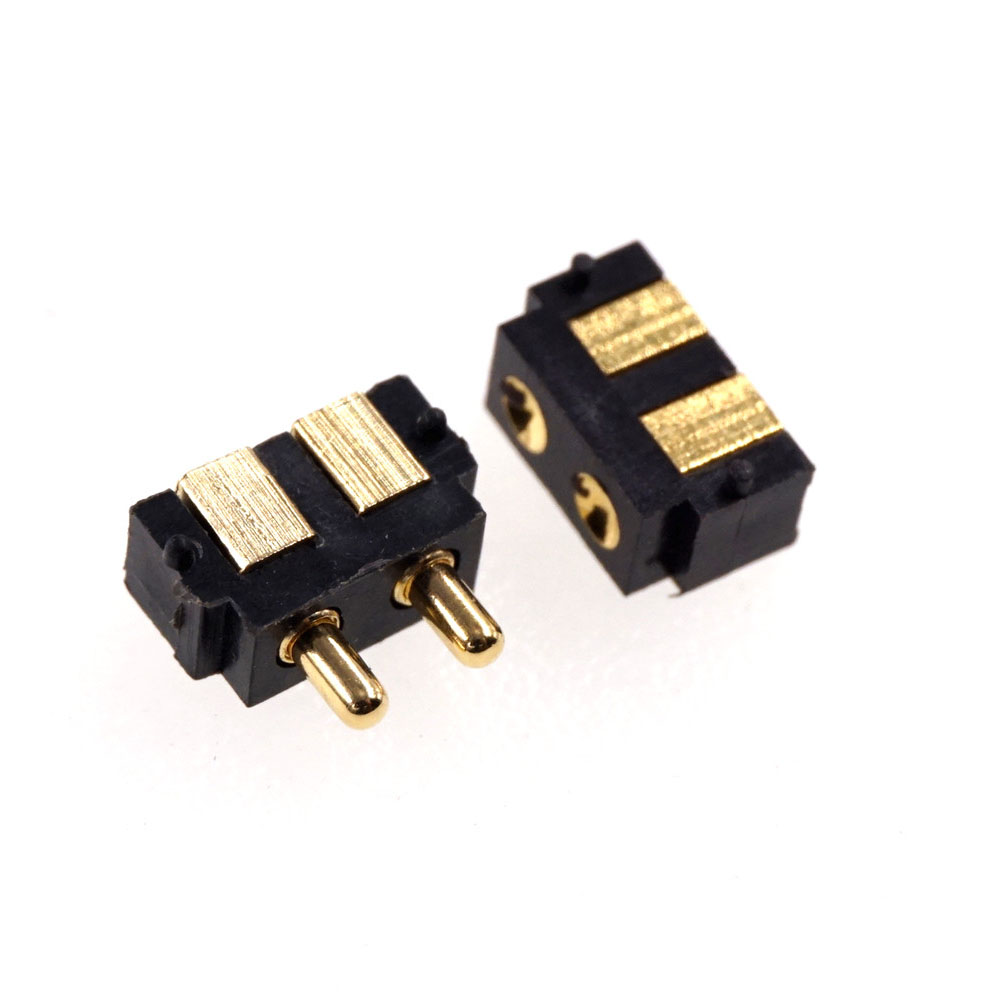

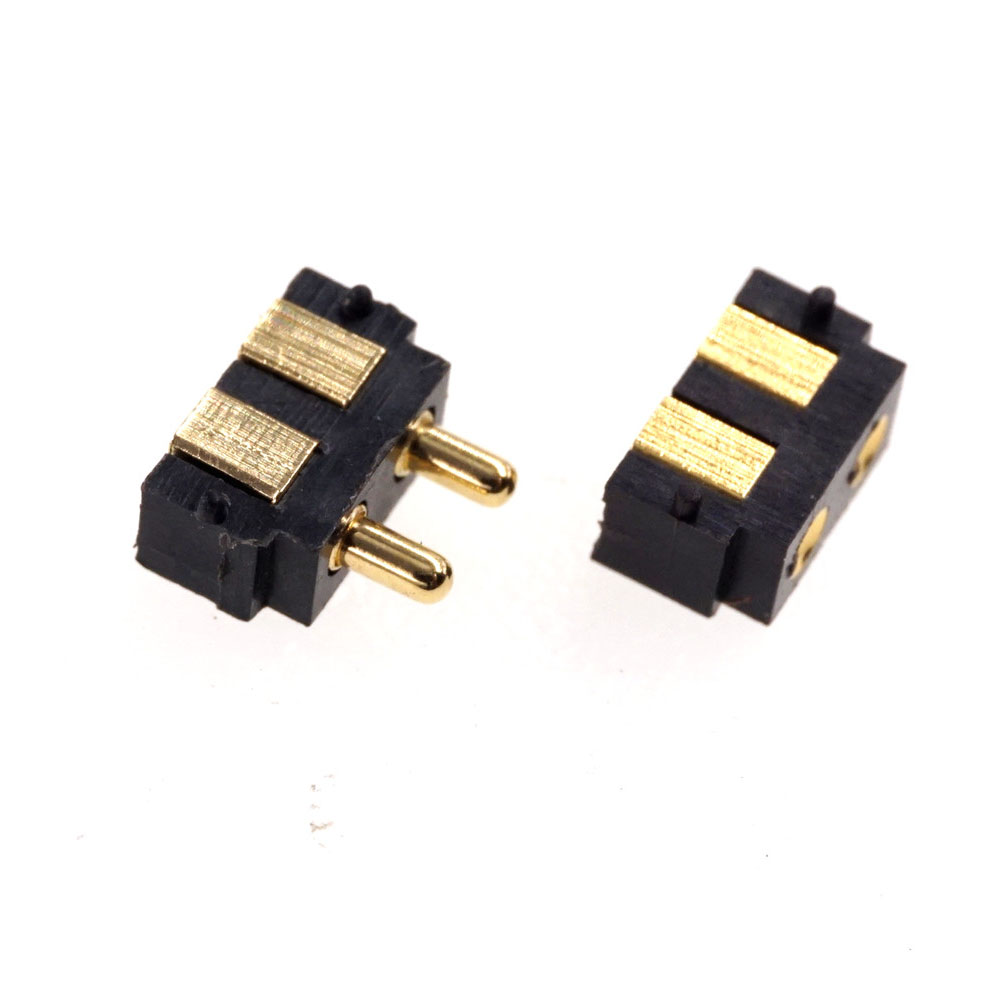

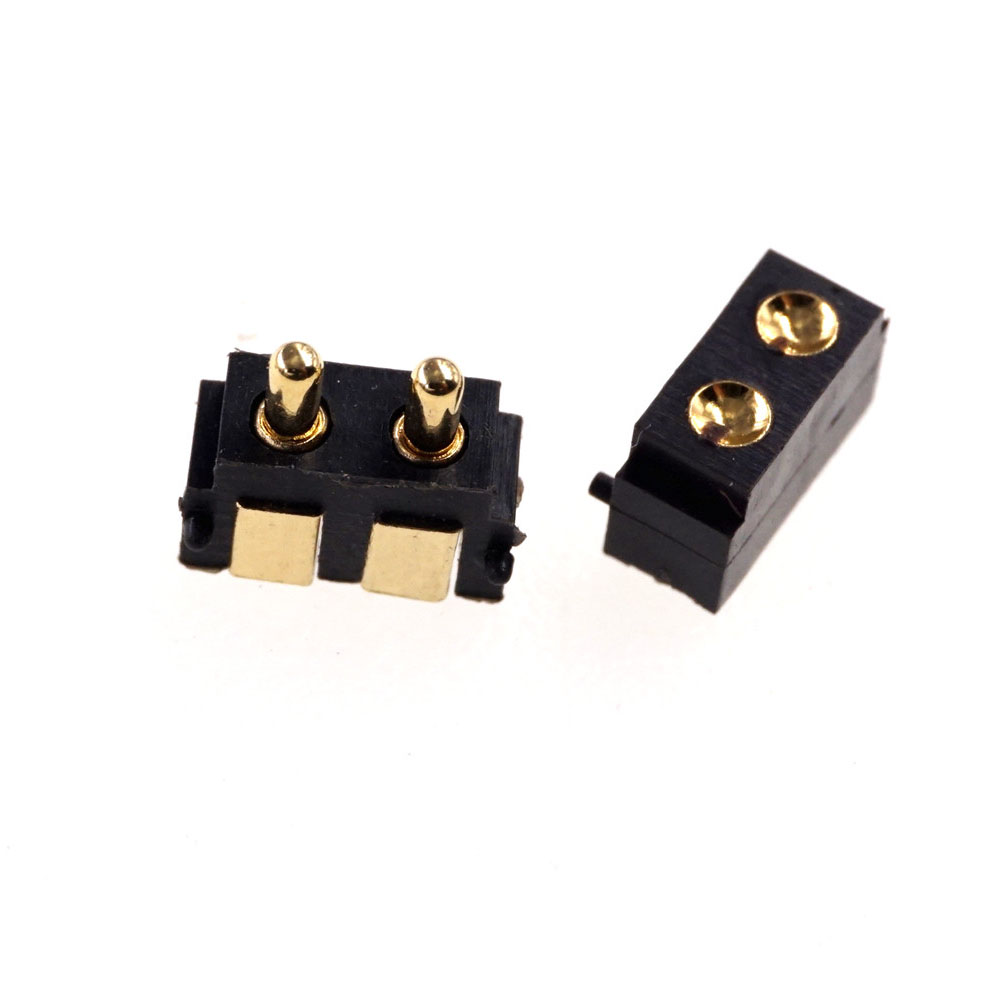

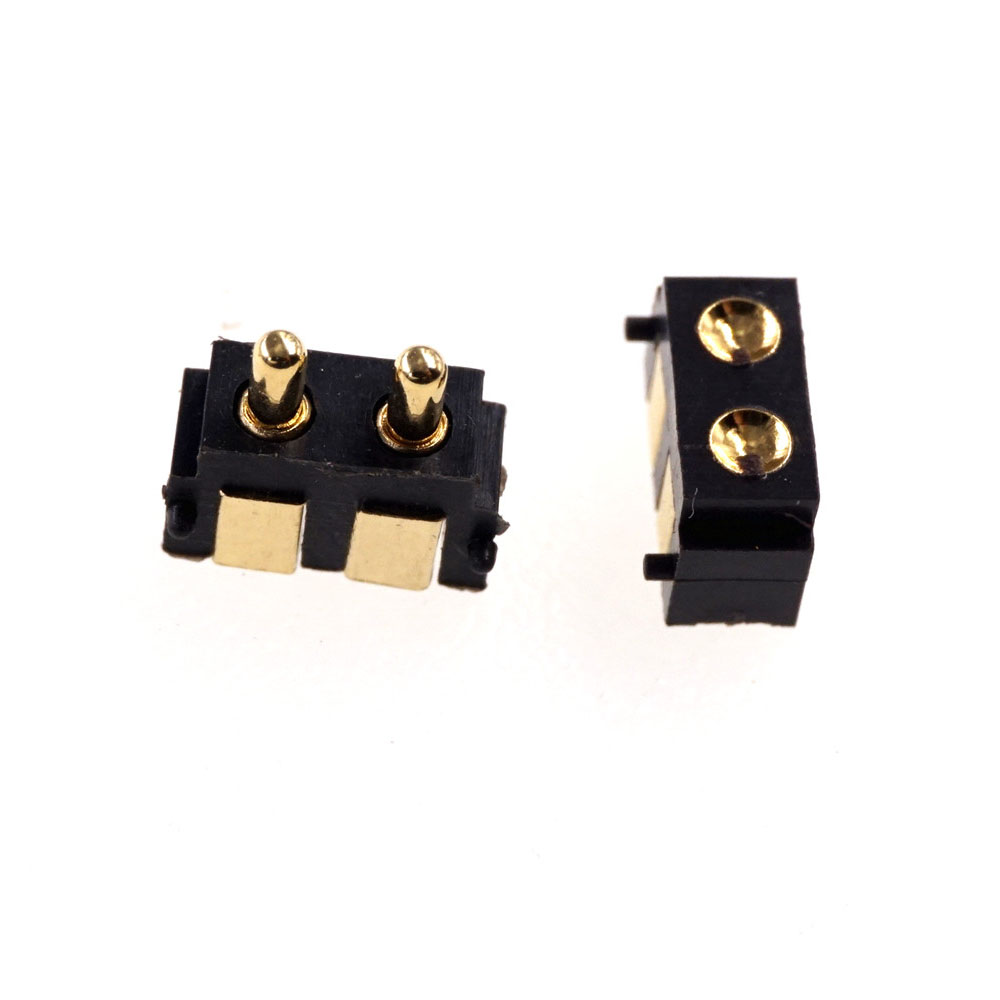

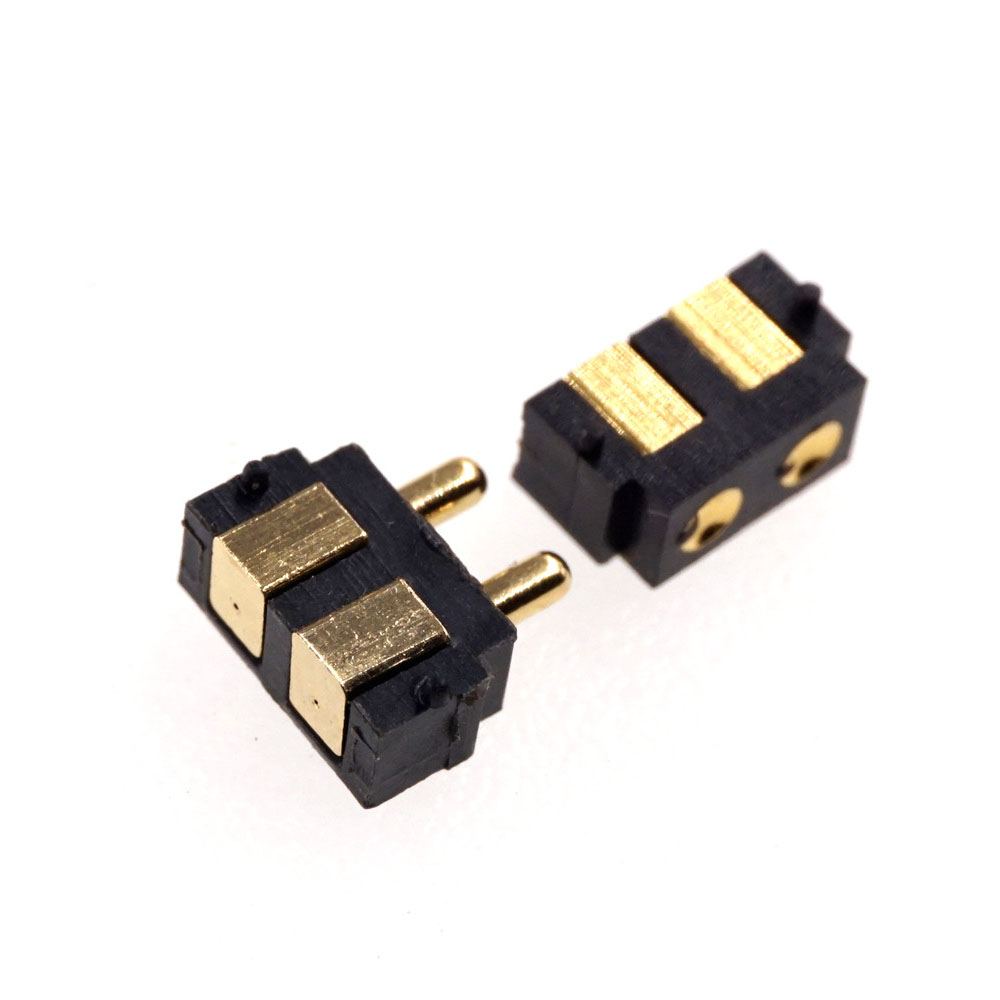

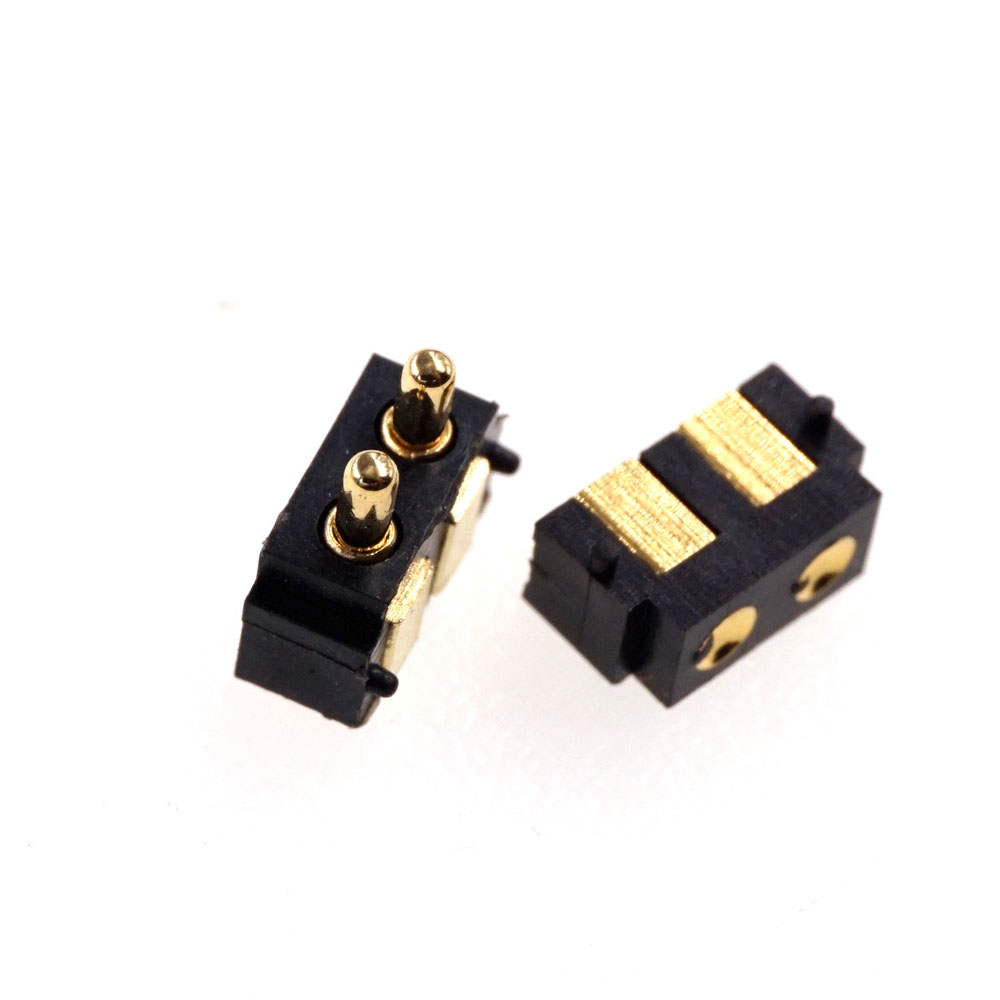

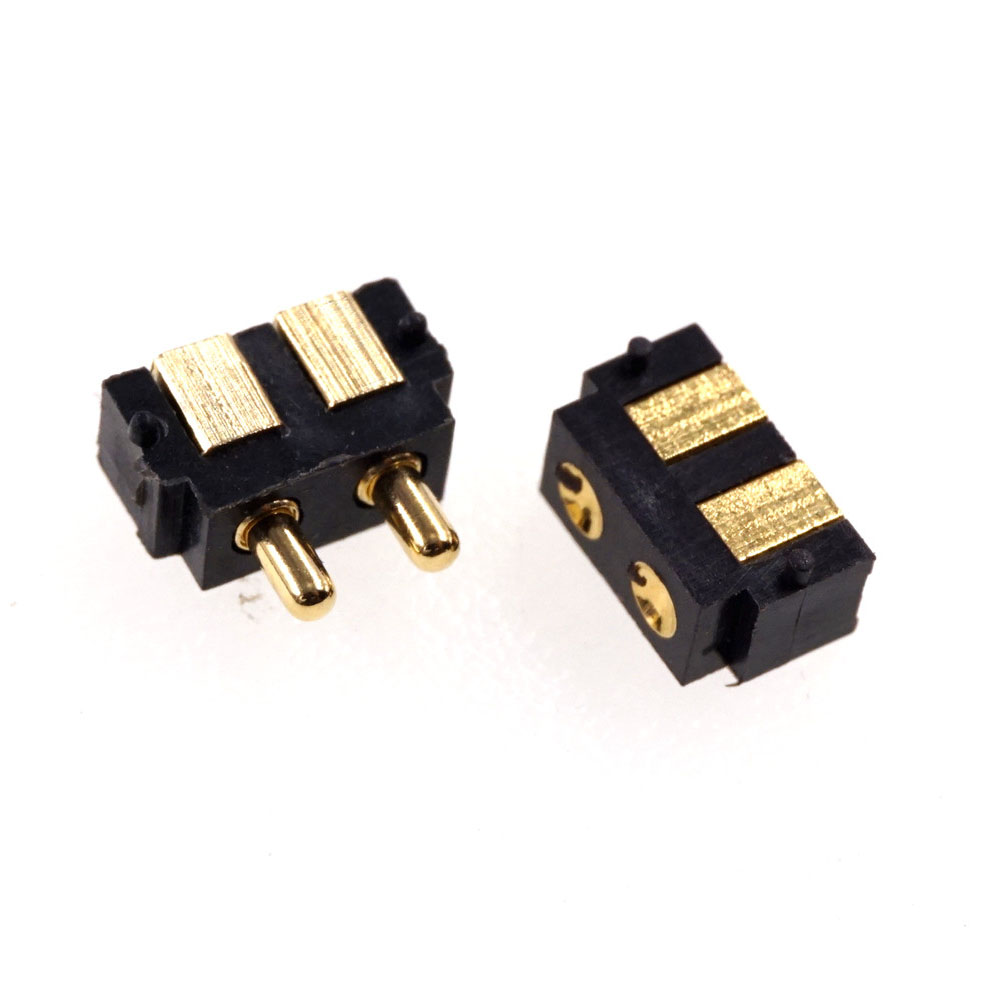

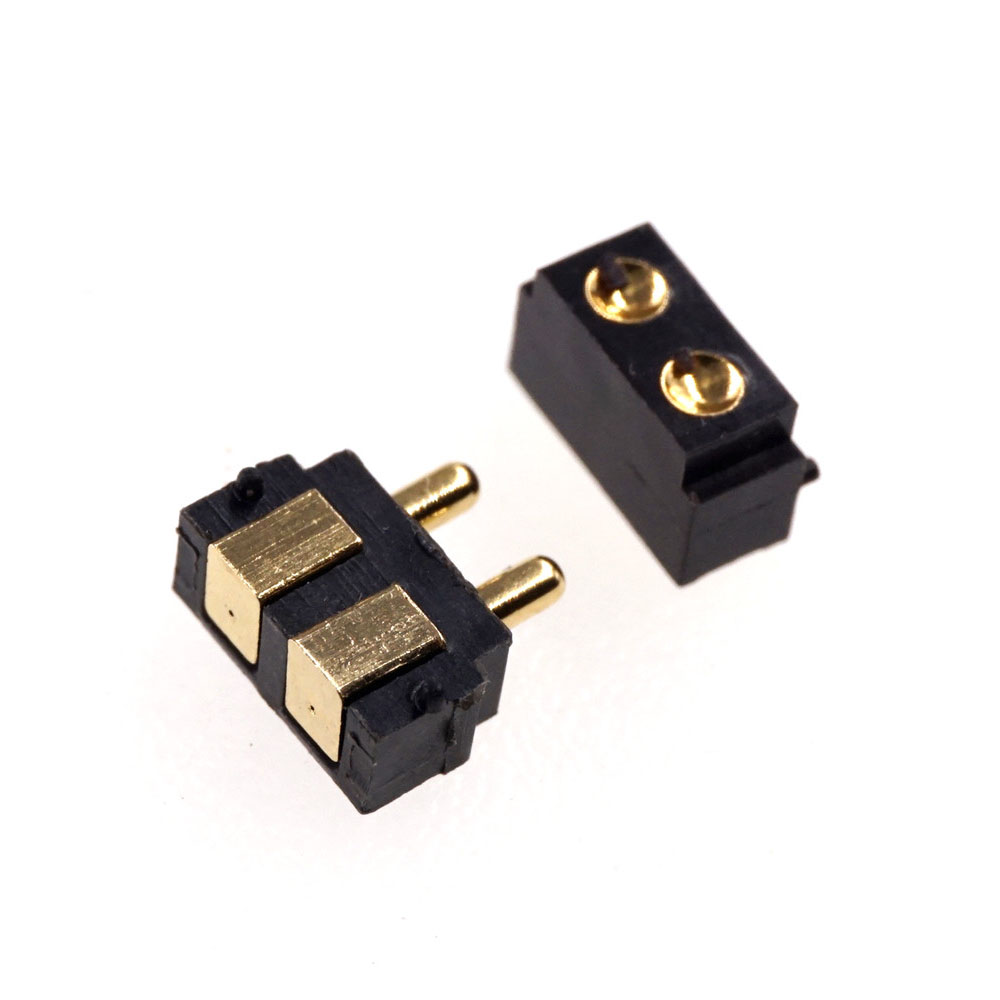

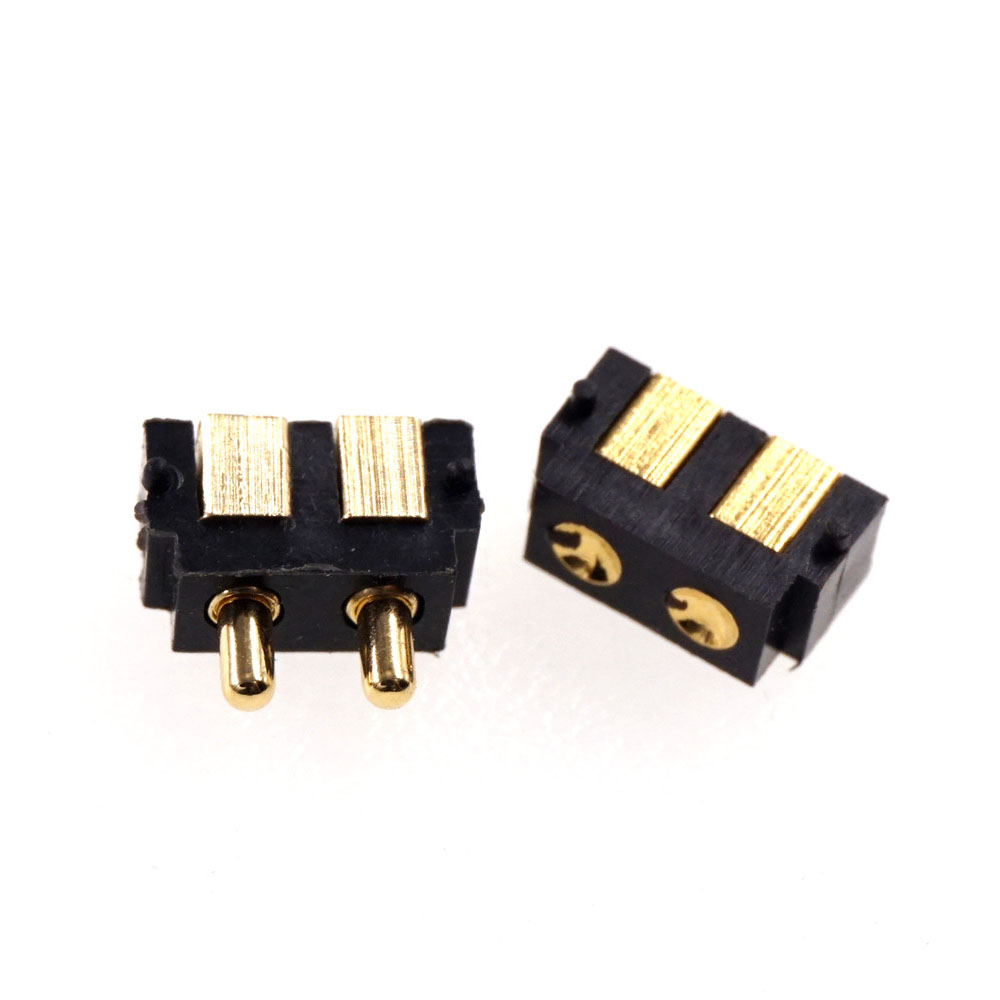

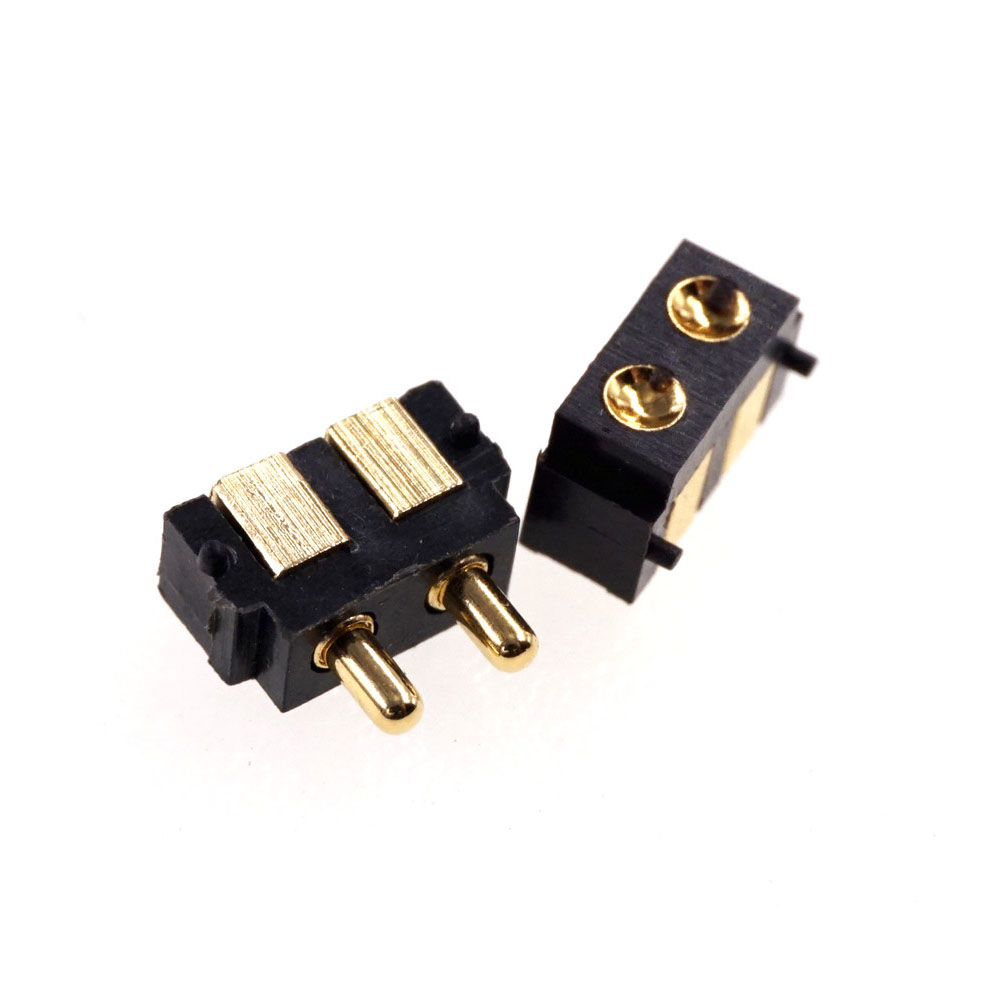

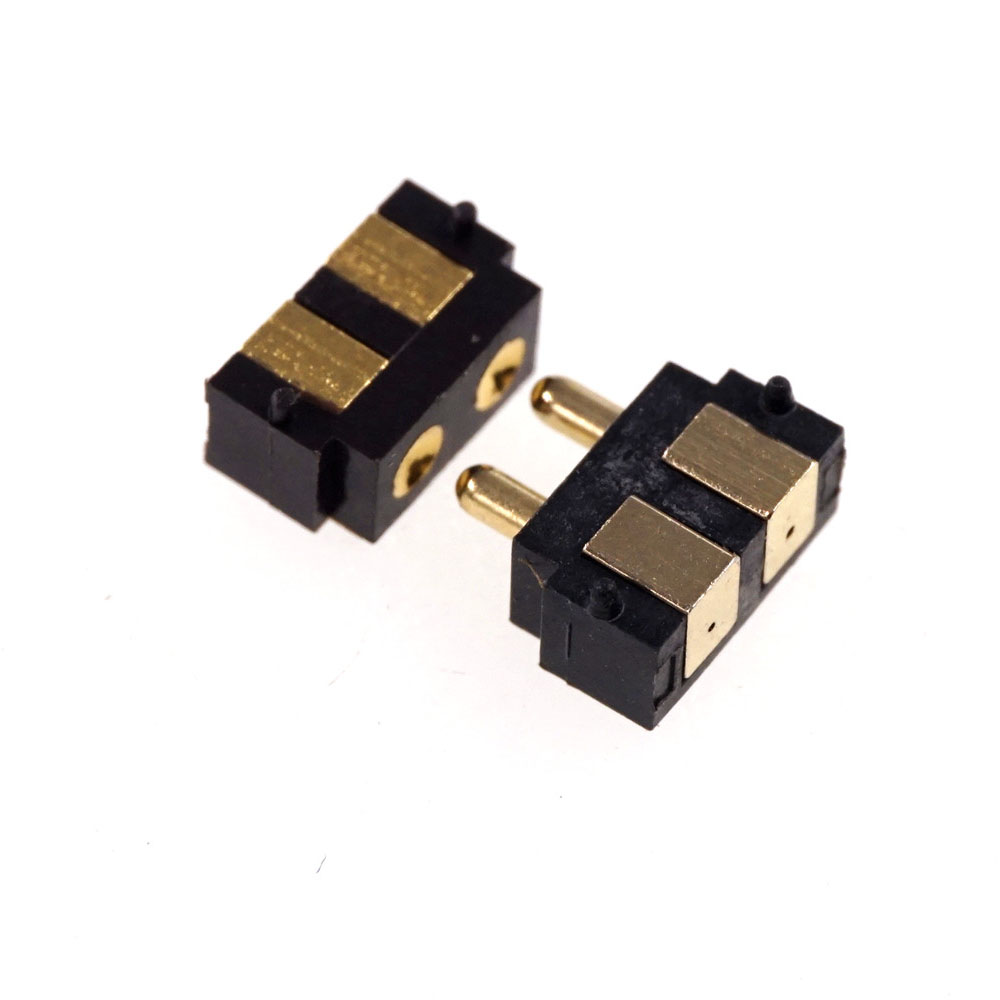

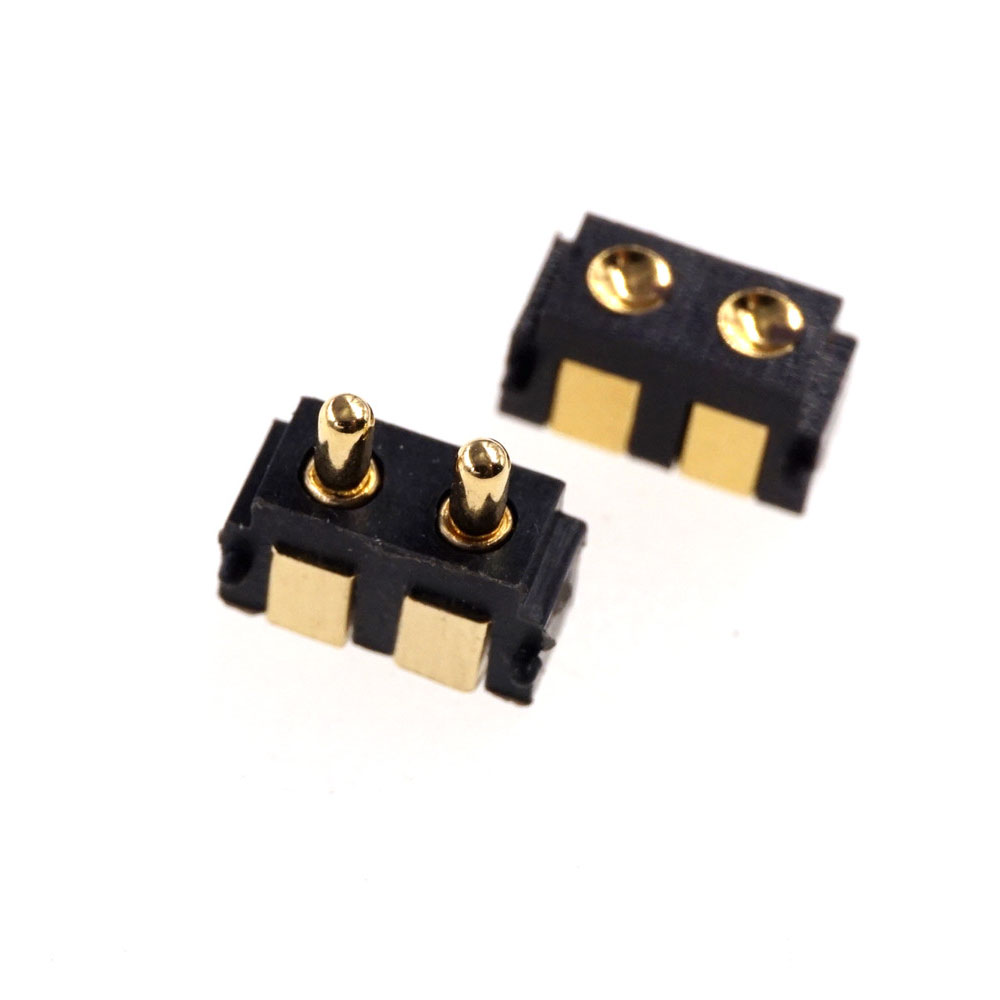

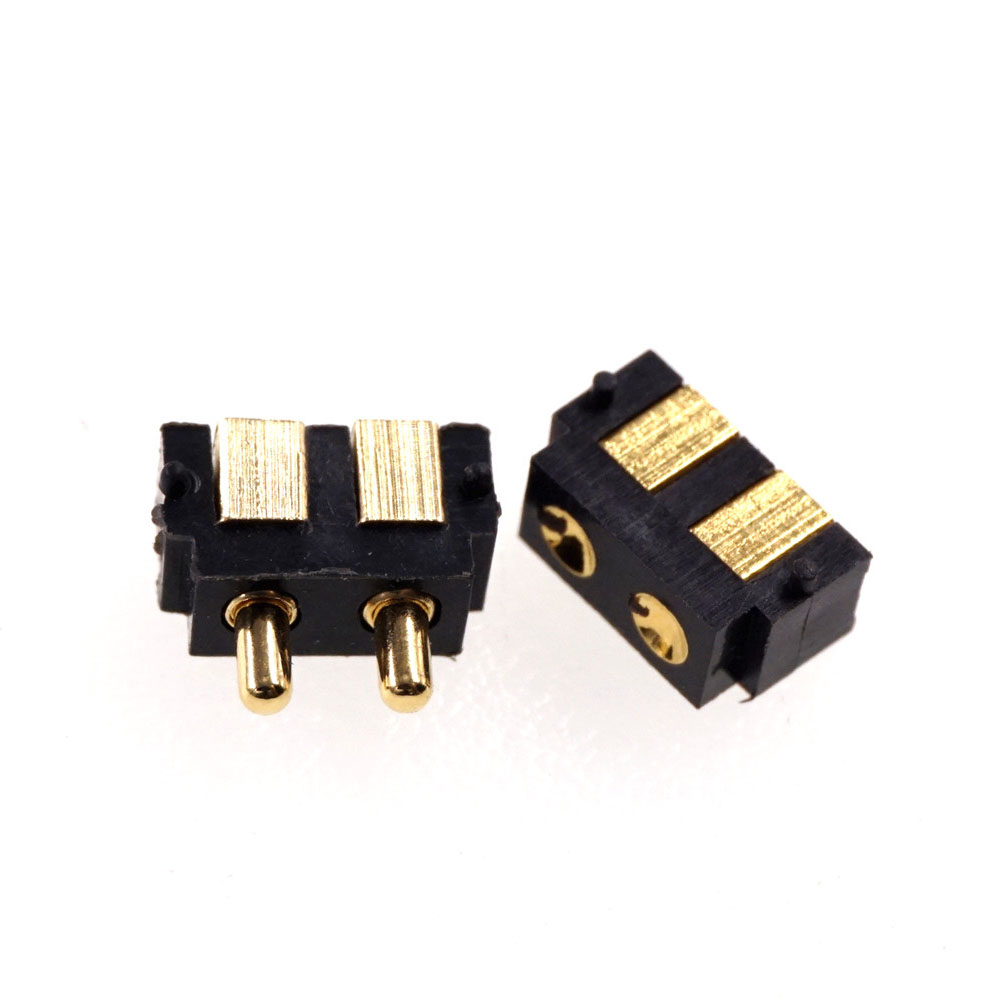

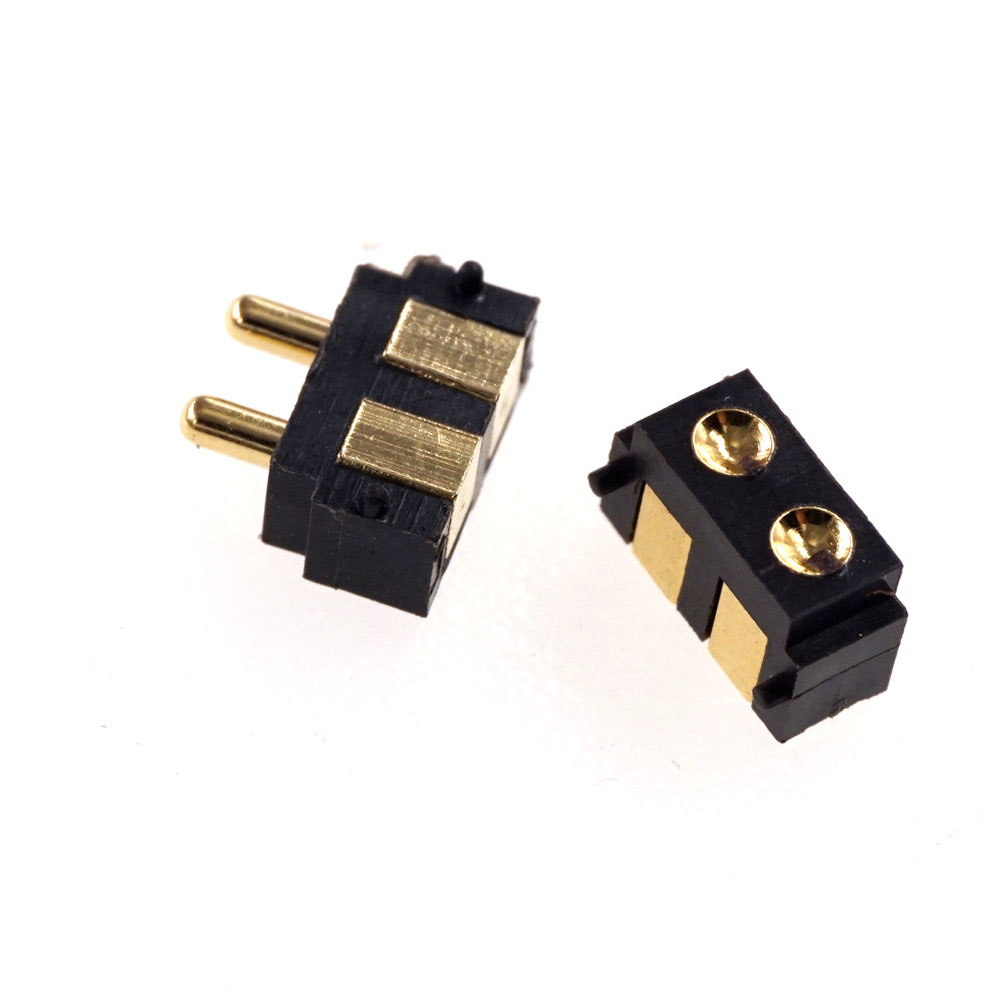

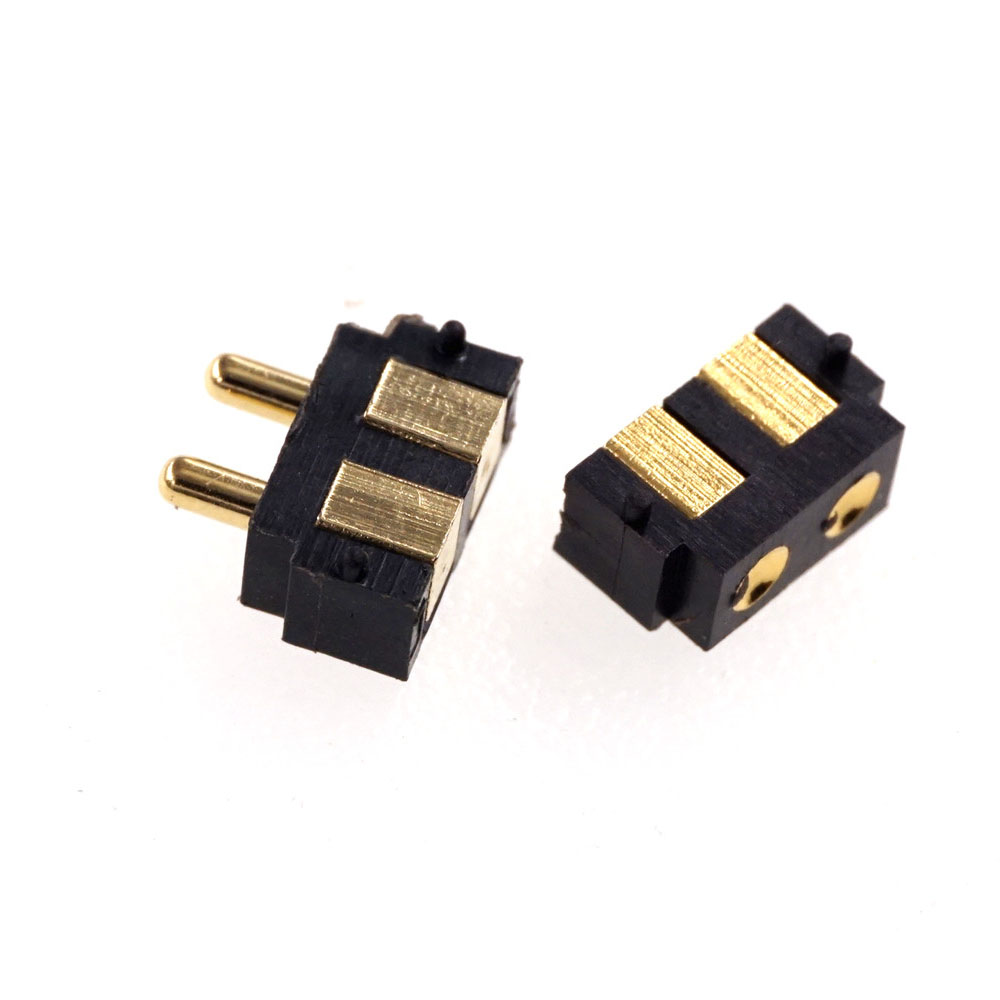

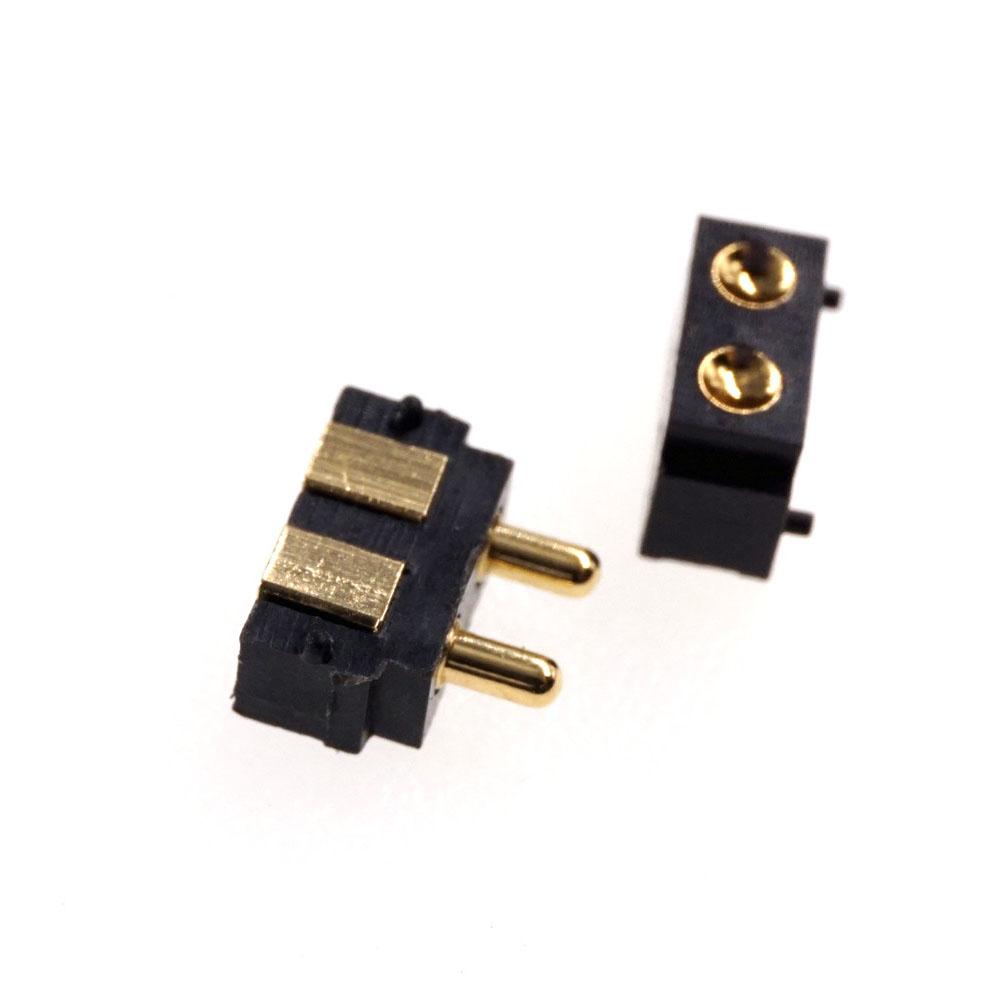

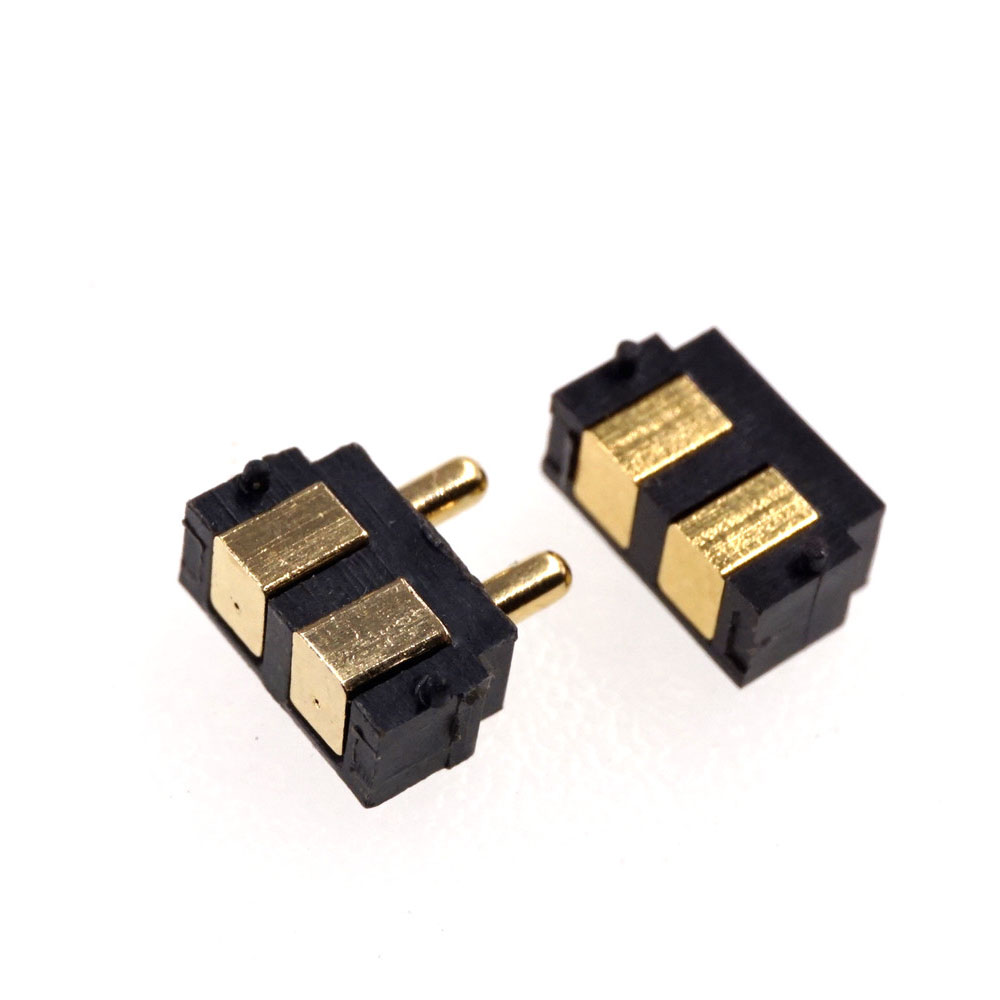

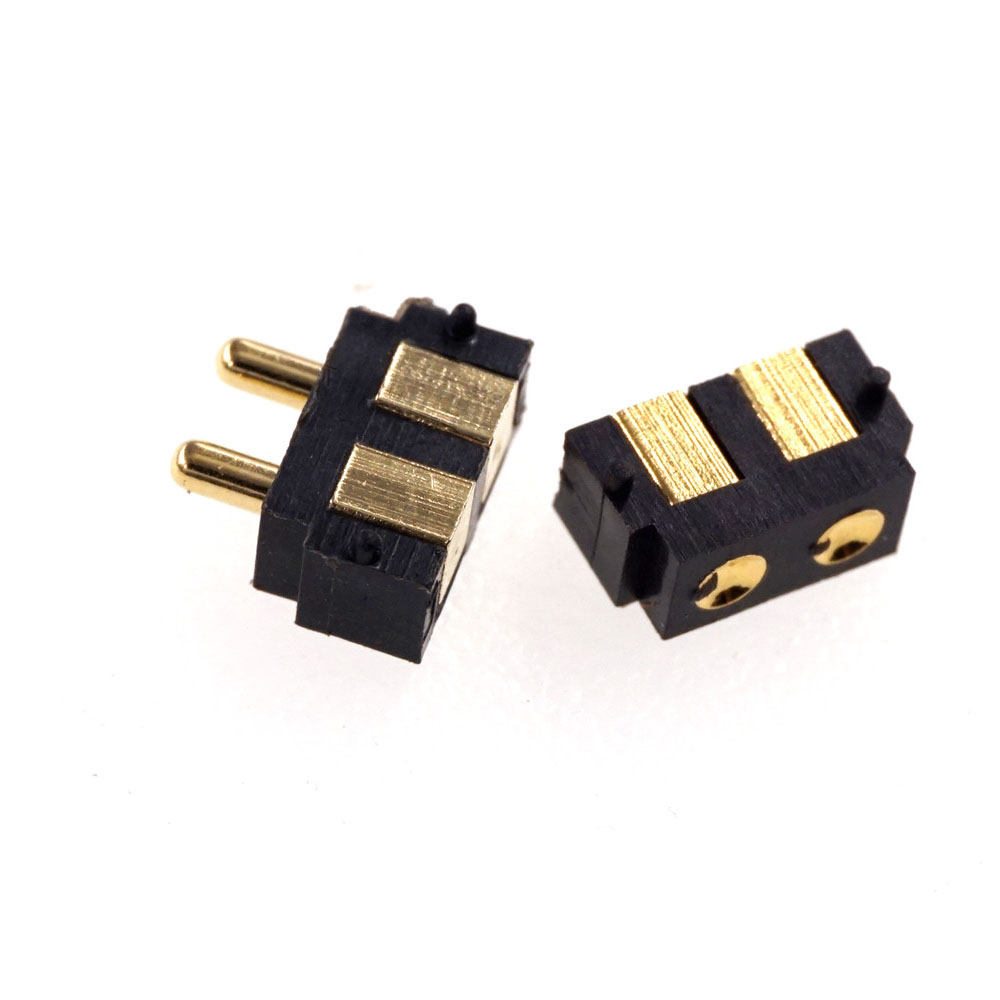

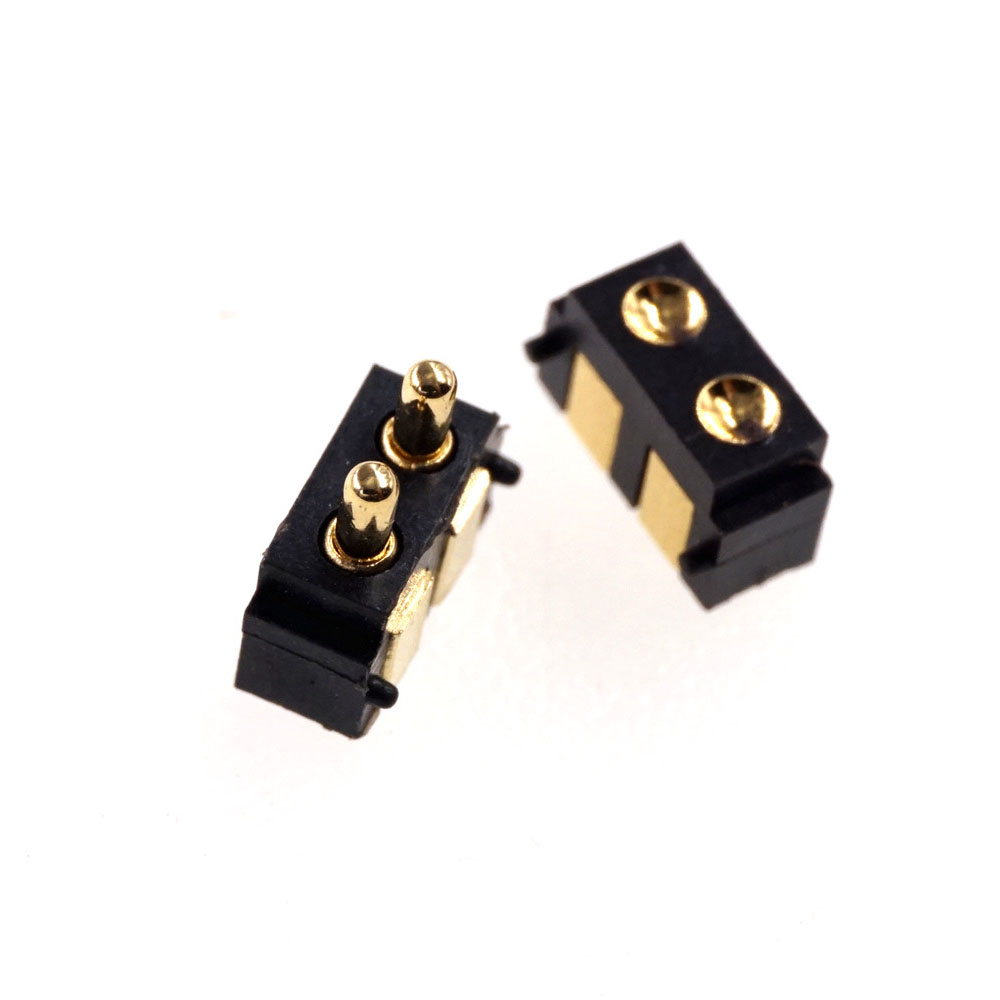

Spring Loaded Pogo Pin Connector 2 PIN Right Angle Surface Mount SMD Strip Male Female Target Concave SMT Pitch 2.5 MM

Spring Loaded Pogo Pin Connector 2 PIN Right Angle Surface Mount SMD Strip Male Female Target Concave SMT Pitch 2.5 MM

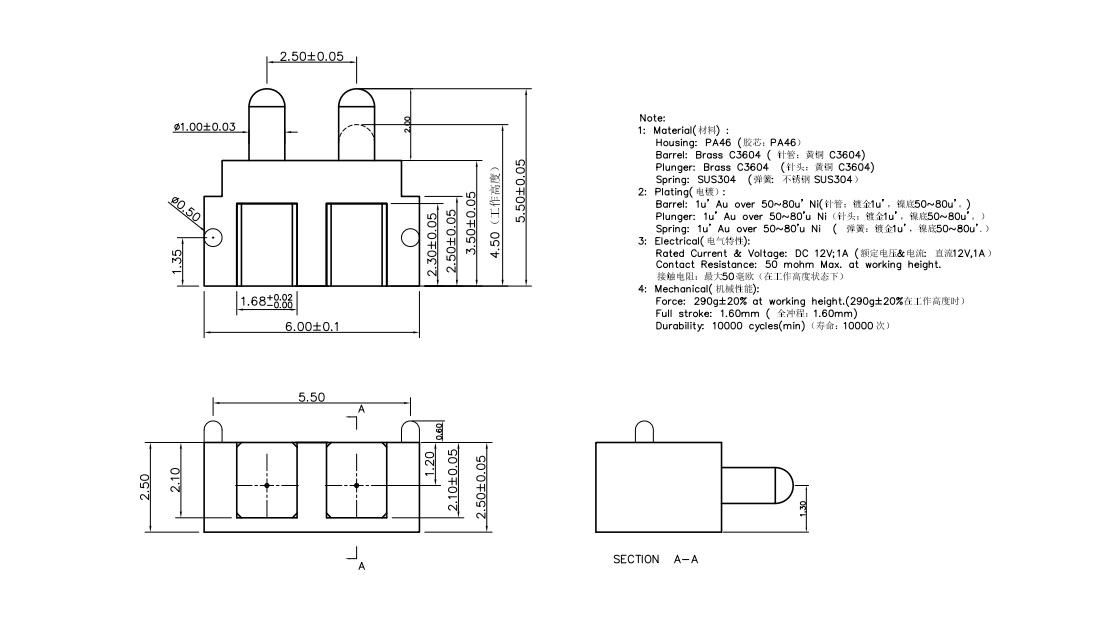

Male Pogo Pin (With Spring Loaded) Height 5.5mm

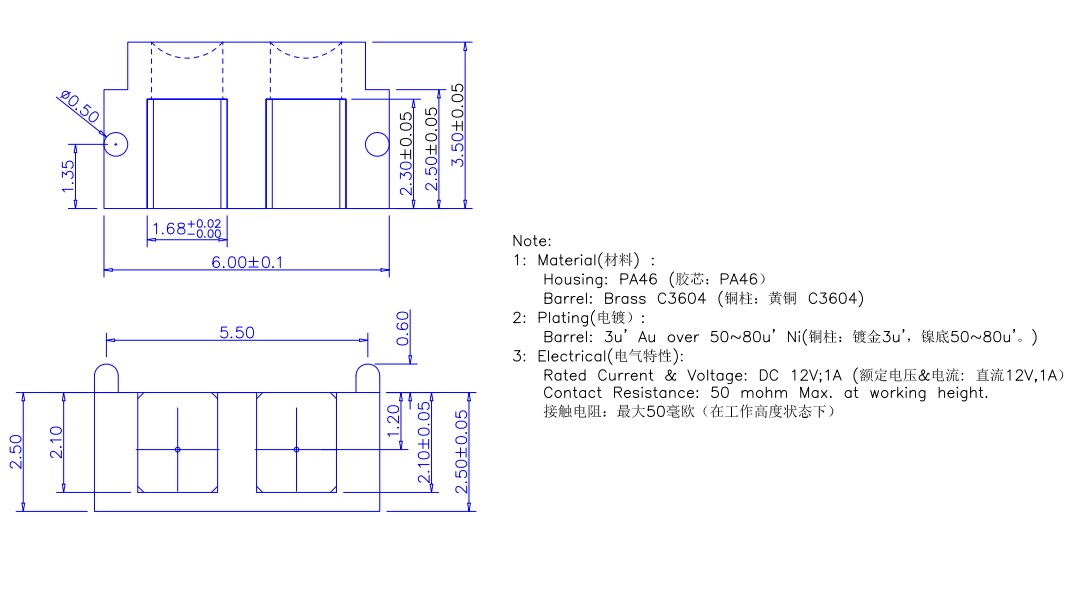

Female Pad (No Spirng Loaded) Height 2.7mm Concave contact

1.Material for plugger and body: Brass Alloy ,

2.Surface Treatment: Gold plated 1 mirco inch, 3mirco inch over Nickle

3.Produce by: CNC Auto Lathe Machine

4.Application: Automotive, Instrument, Electronic Equippment,Battery Charge

Electronic:

a. Current rating: 1A 12VDC

b.Spring force:60g,can make according client requirement

c. Life cycles: 10000 max

d.Contact Resistance:30m Ohm

Inquiry Now Download

Spring Loaded Pogo Pin Connector 2 PIN Right Angle Surface Mount SMD Strip Male Female Target Concave SMT Pitch 2.5 MM

Spring Loaded Pogo Pin Connector 2 PIN Right Angle Surface Mount SMD Strip Male Female Target Concave SMT Pitch 2.5 MM

Spring Loaded Pogo Pin Connector 2 PIN Right Angle Surface Mount SMD Strip Male Female Target Concave SMT Pitch 2.5 MM

Spring Loaded Pogo Pin Connector 2 PIN Right Angle Surface Mount SMD Strip Male Female Target Concave SMT Pitch 2.5 MM

Spring Loaded Pogo Pin Connector 2 PIN Right Angle Surface Mount SMD Strip Male Female Target Concave SMT Pitch 2.5 MM

Spring Loaded Pogo Pin Connector 2 PIN Right Angle Surface Mount SMD Strip Male Female Target Concave SMT Pitch 2.5 MM

Spring Loaded Pogo Pin Connector 2 PIN Right Angle Surface Mount SMD Strip Male Female Target Concave SMT Pitch 2.5 MM

Spring Loaded Pogo Pin Connector 2 PIN Right Angle Surface Mount SMD Strip Male Female Target Concave SMT Pitch 2.5 MM

Spring Loaded Pogo Pin Connector 2 PIN Right Angle Surface Mount SMD Strip Male Female Target Concave SMT Pitch 2.5 MM

Spring Loaded Pogo Pin Connector 2 PIN Right Angle Surface Mount SMD Strip Male Female Target Concave SMT Pitch 2.5 MM

Spring Loaded Pogo Pin Connector 2 PIN Right Angle Surface Mount SMD Strip Male Female Target Concave SMT Pitch 2.5 MM

Spring Loaded Pogo Pin Connector 2 PIN Right Angle Surface Mount SMD Strip Male Female Target Concave SMT Pitch 2.5 MM

Spring Loaded Pogo Pin Connector 2 PIN Right Angle Surface Mount SMD Strip Male Female Target Concave SMT Pitch 2.5 MM

Spring Loaded Pogo Pin Connector 2 PIN Right Angle Surface Mount SMD Strip Male Female Target Concave SMT Pitch 2.5 MM

Spring Loaded Pogo Pin Connector 2 PIN Right Angle Surface Mount SMD Strip Male Female Target Concave SMT Pitch 2.5 MM

Spring Loaded Pogo Pin Connector 2 PIN Right Angle Surface Mount SMD Strip Male Female Target Concave SMT Pitch 2.5 MM

Spring Loaded Pogo Pin Connector 2 PIN Right Angle Surface Mount SMD Strip Male Female Target Concave SMT Pitch 2.5 MM

Spring Loaded Pogo Pin Connector 2 PIN Right Angle Surface Mount SMD Strip Male Female Target Concave SMT Pitch 2.5 MM

Spring Loaded Pogo Pin Connector 2 PIN Right Angle Surface Mount SMD Strip Male Female Target Concave SMT Pitch 2.5 MM

Spring Loaded Pogo Pin Connector 2 PIN Right Angle Surface Mount SMD Strip Male Female Target Concave SMT Pitch 2.5 MM

Spring Loaded Pogo Pin Connector 2 PIN Right Angle Surface Mount SMD Strip Male Female Target Concave SMT Pitch 2.5 MM

Spring Loaded Pogo Pin Connector 2 PIN Right Angle Surface Mount SMD Strip Male Female Target Concave SMT Pitch 2.5 MM
