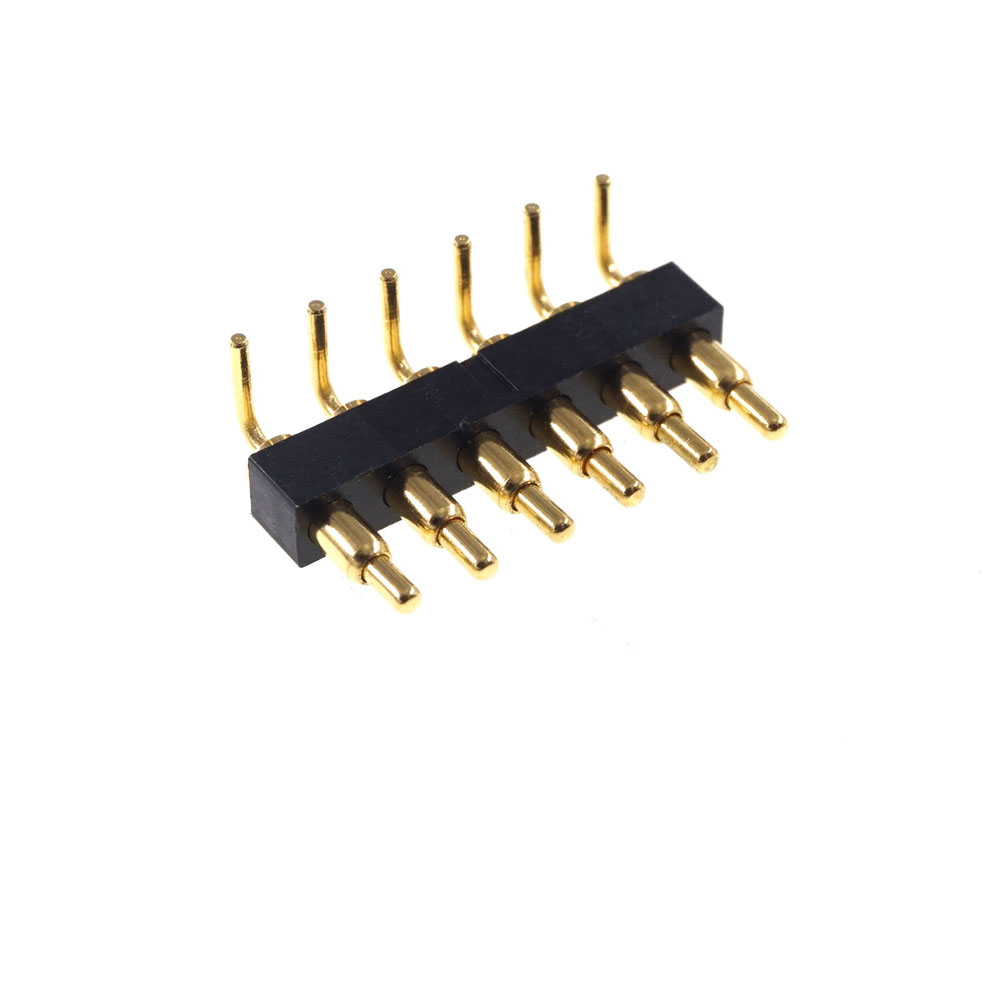

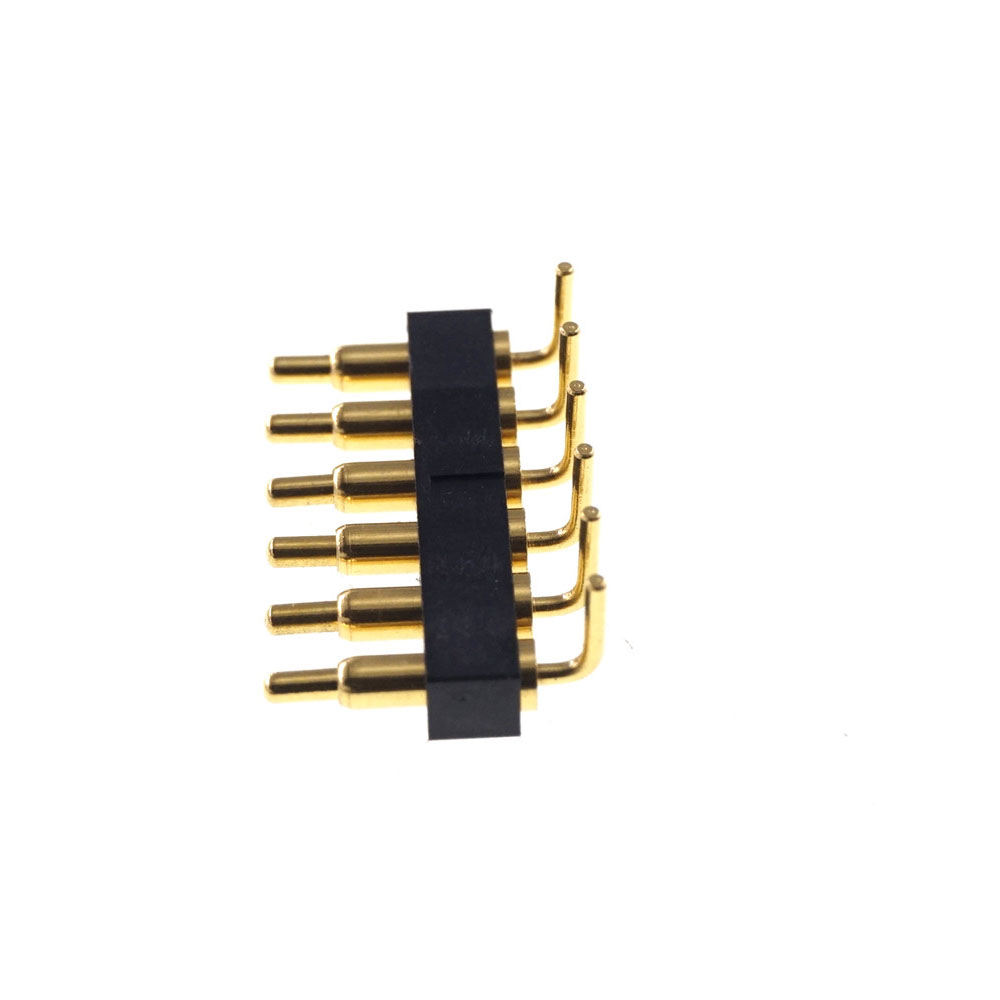

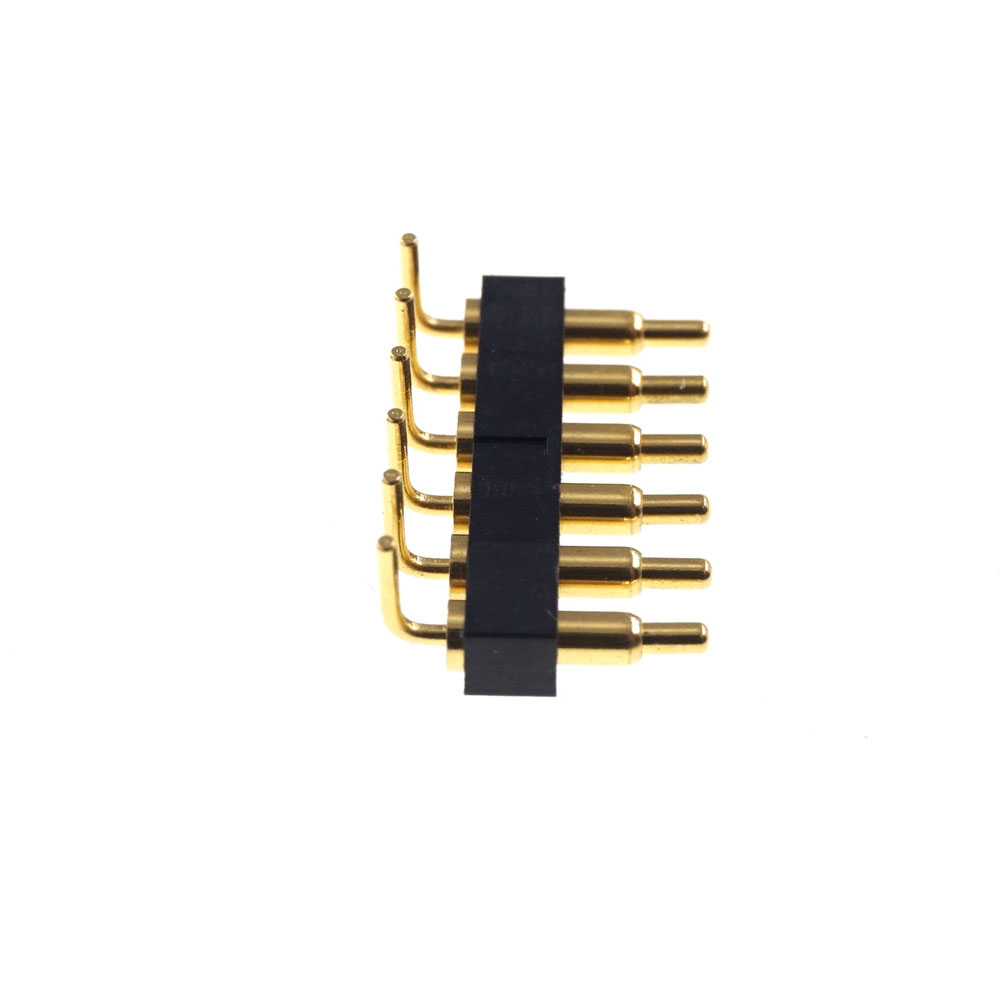

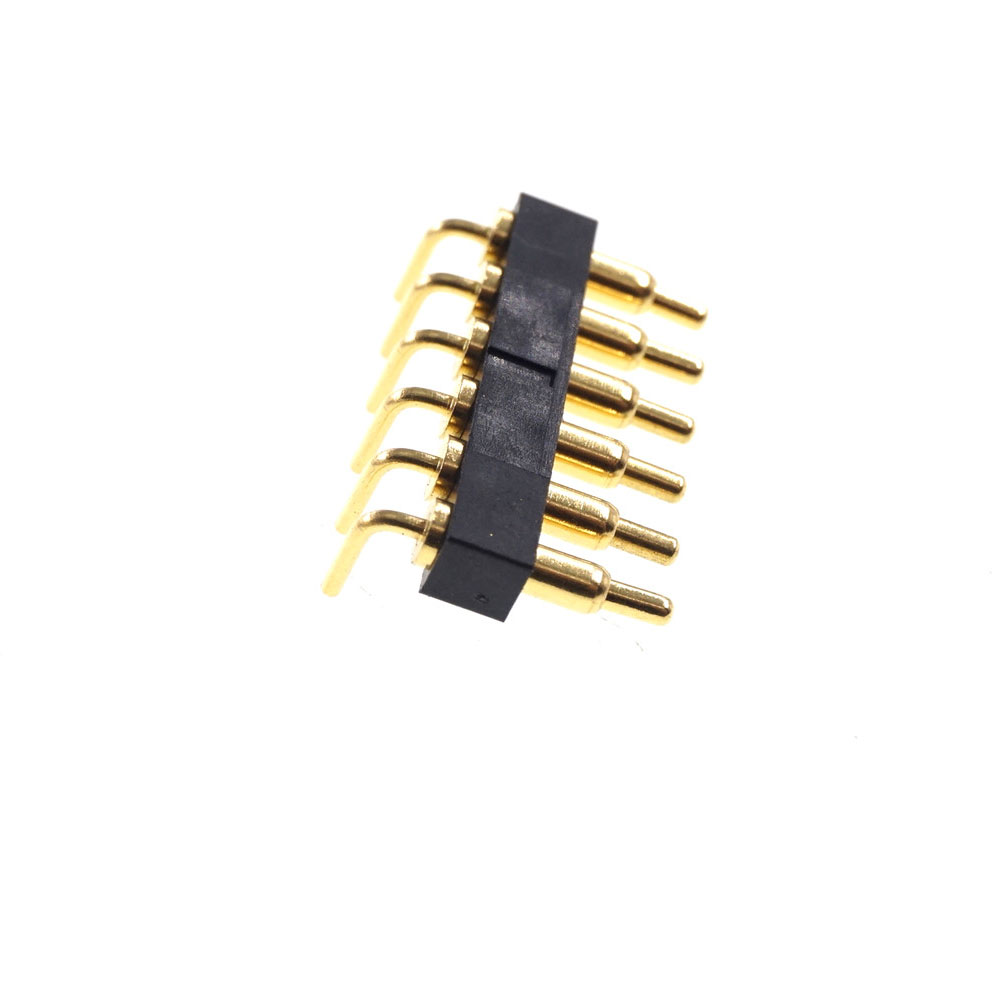

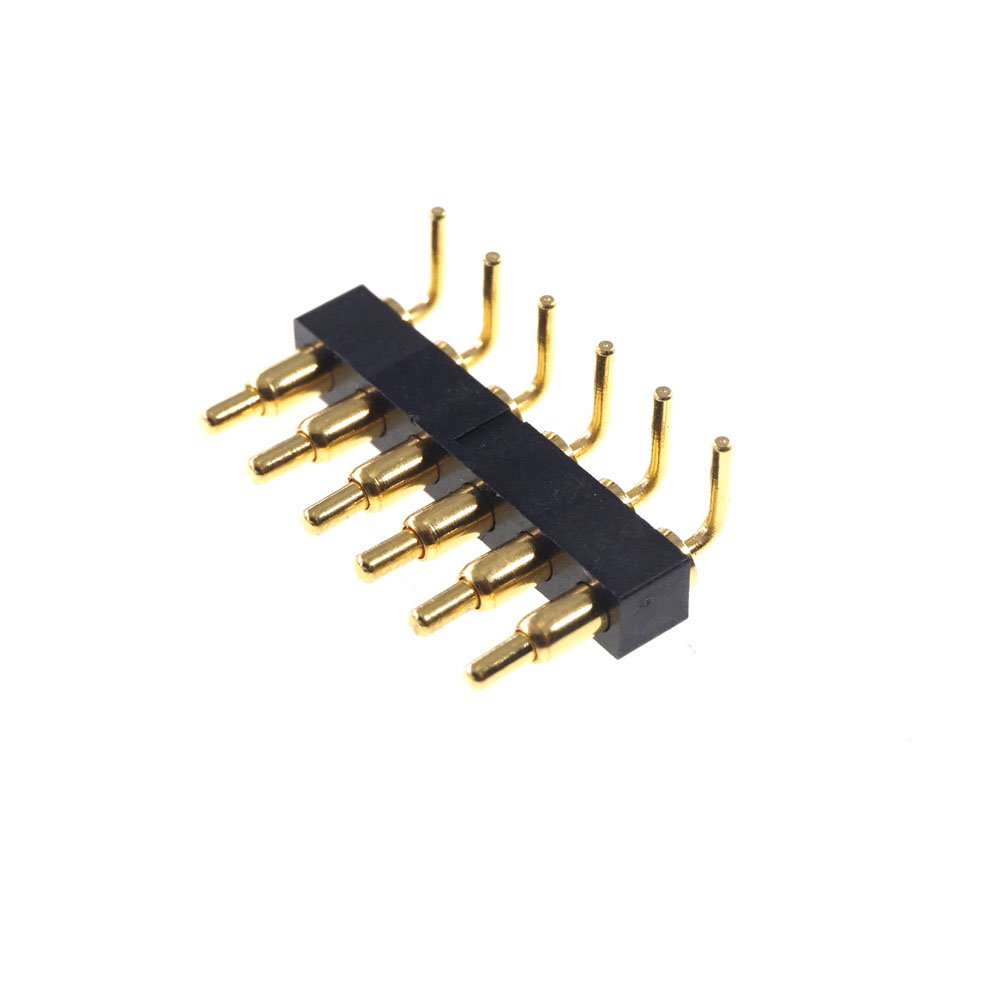

Spring Loaded Pogo Pin Connector 6 Pin 2.54 mm Pitch 8.8 mm Height Through Holes PCB Right Angle Edge Mount PCB Solder-Single row Spring Through Hole-

Spring Loaded Pogo Pin Connector 6 Pin 2.54 mm Pitch 8.8 mm Height Through Holes PCB Right Angle Edge Mount PCB Solder

1.Material for plugger and body: Brass Alloy ,

Spring material: Stainless Steel Wire

2.Surface Treatment: Gold plated 1mirco inch, 3mirco inch over Nickle

3.Produce by: CNC Auto Lathe Machine

4.Sample leadtime: 5~8days

5.Application: Toy, Automotive, Instrument, Electronic Equippment,Battery Charge

Electronic:

a. Current rating: 2A

b.Spring force:80g+/-20g,can make according client requirement

c. Life cycles: 50000 max

d.Contact Resistance:30m Ohm
