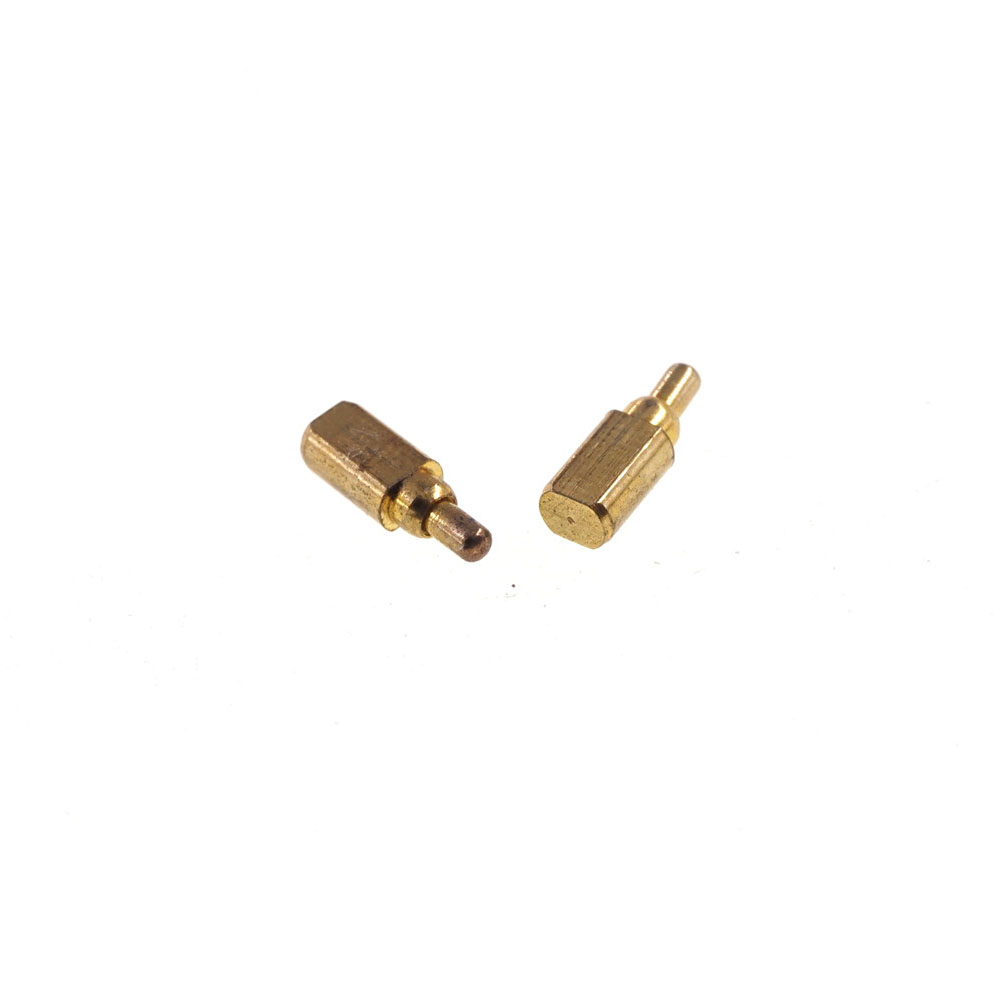

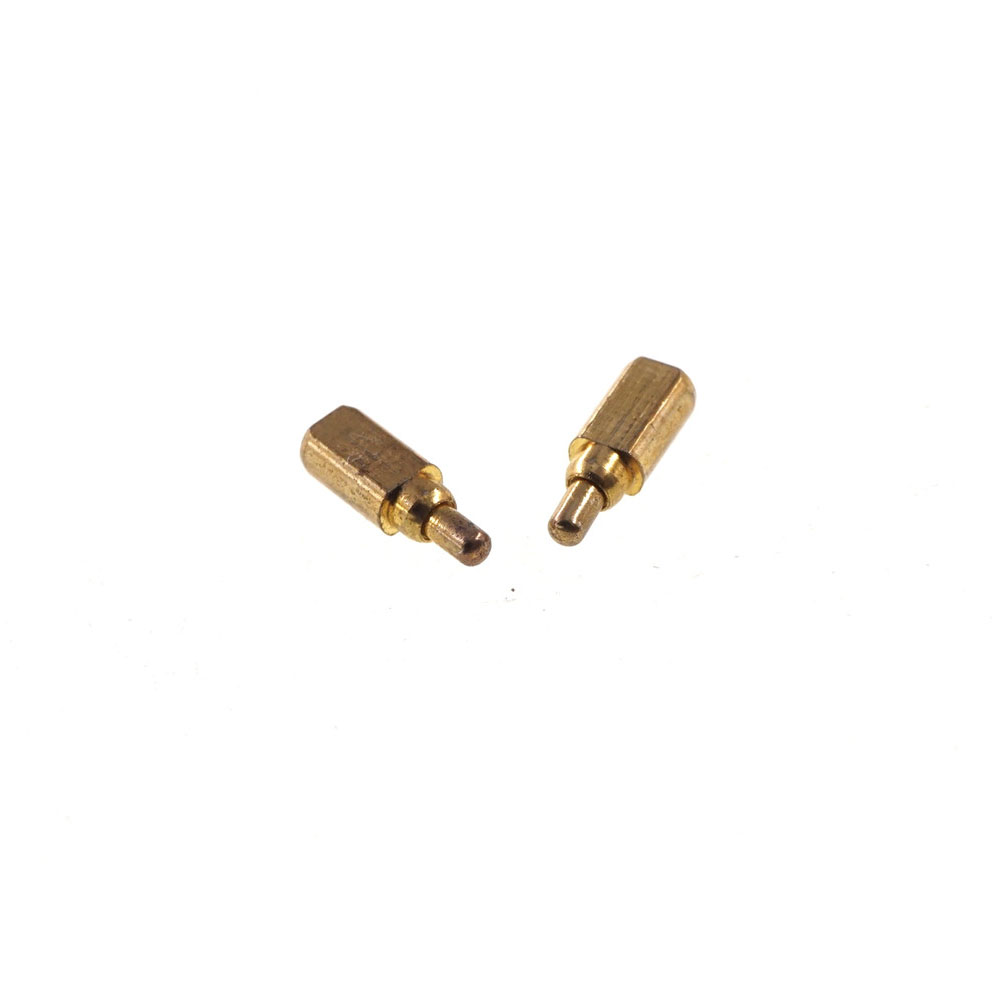

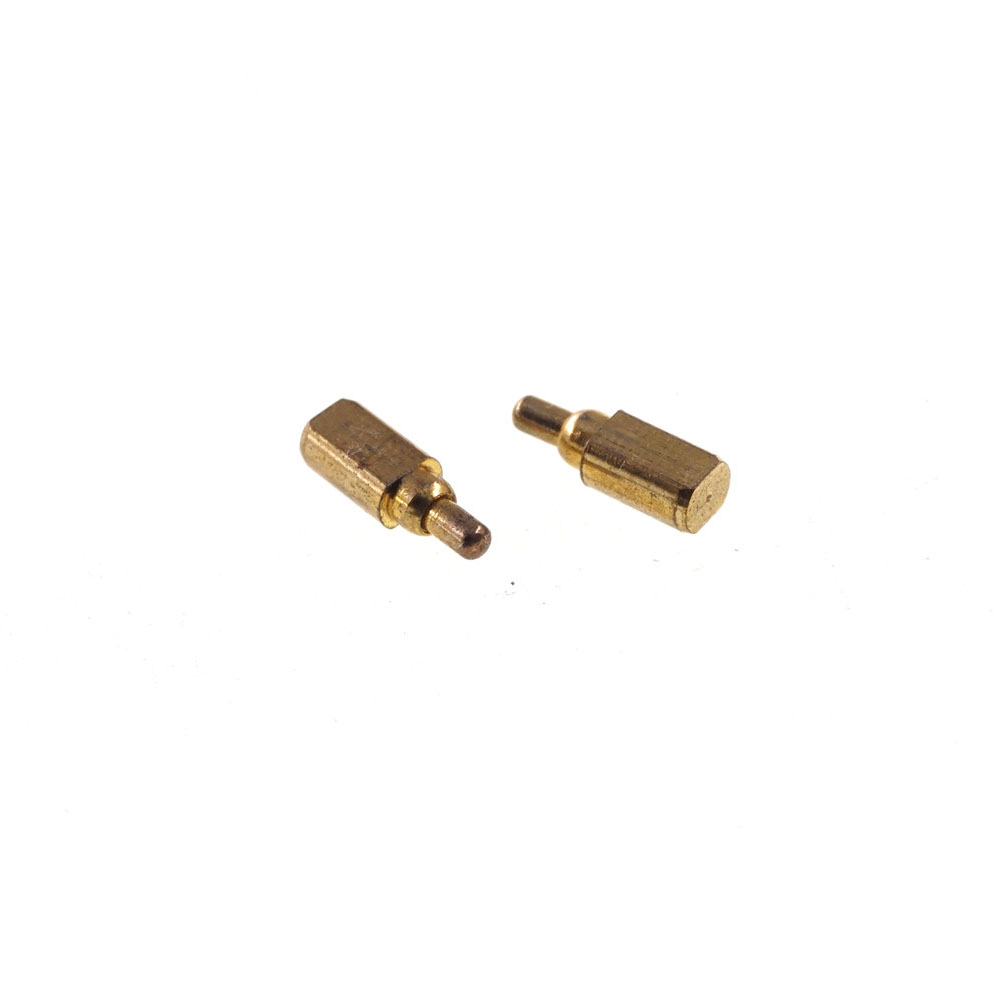

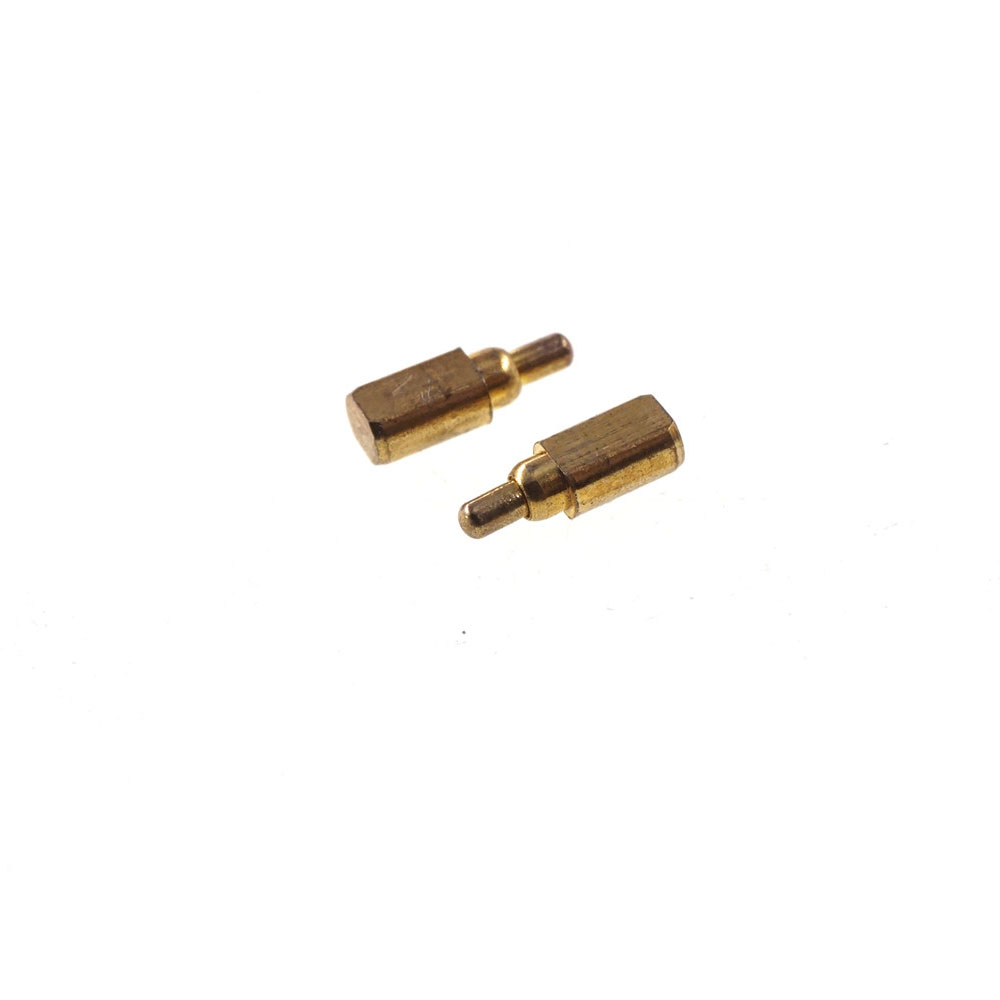

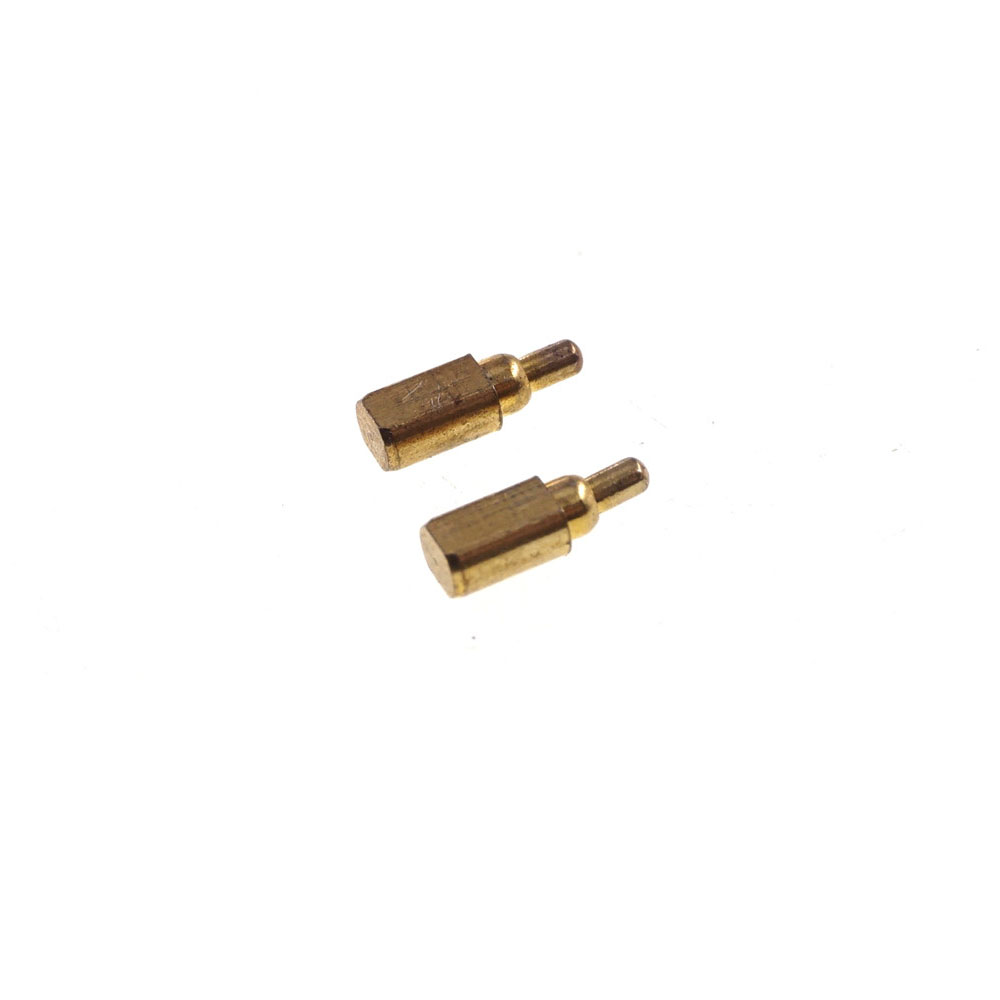

Single Spring Pin Male SMD
SMT Horizontal Pogo Pin 5.5 MM Height 1A Current Spring Loaded Probe Header Male Contact Board Edge Mount Single
SMT Horizontal Pogo Pin 5.5 MM Height 1A Current Spring Loaded Probe Header Male Contact Board Edge Mount Single
1.Material for plugger and body: Brass Alloy ,
Spring material: Stainless Steel Wire
2.Surface Treatment: Gold plated 1mirco inch, 3mirco inch over Nickle
3.Produce by: CNC Auto Lathe Machine
4.Sample leadtime: 5~8days
5.Application: Toy, Automotive, Instrument, Electronic Equippment,Battery Charge


Electronic:
a. Current rating: 1A
b.Spring force:80g~120g,can make according client requirement
c. Life cycles: 10000 max
d.Contact Resistance:30m Ohm


SMT Horizontal Pogo Pin 5.5 MM Height 1A Current Spring Loaded Probe Header Male Contact Board Edge Mount Single
SMT Horizontal Pogo Pin 5.5 MM Height 1A Current Spring Loaded Probe Header Male Contact Board Edge Mount Single
SMT Horizontal Pogo Pin 5.5 MM Height 1A Current Spring Loaded Probe Header Male Contact Board Edge Mount Single
SMT Horizontal Pogo Pin 5.5 MM Height 1A Current Spring Loaded Probe Header Male Contact Board Edge Mount Single
SMT Horizontal Pogo Pin 5.5 MM Height 1A Current Spring Loaded Probe Header Male Contact Board Edge Mount Single
