Single Spring Pin Male SMD

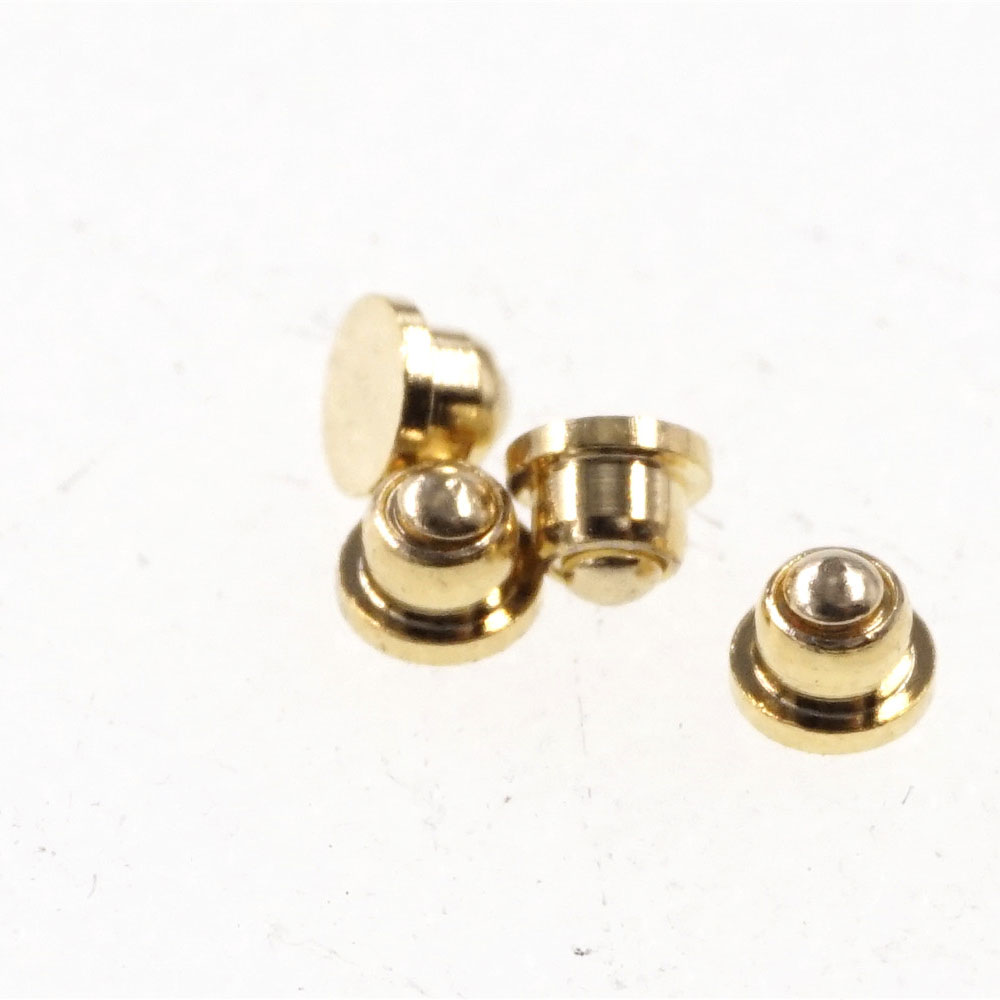

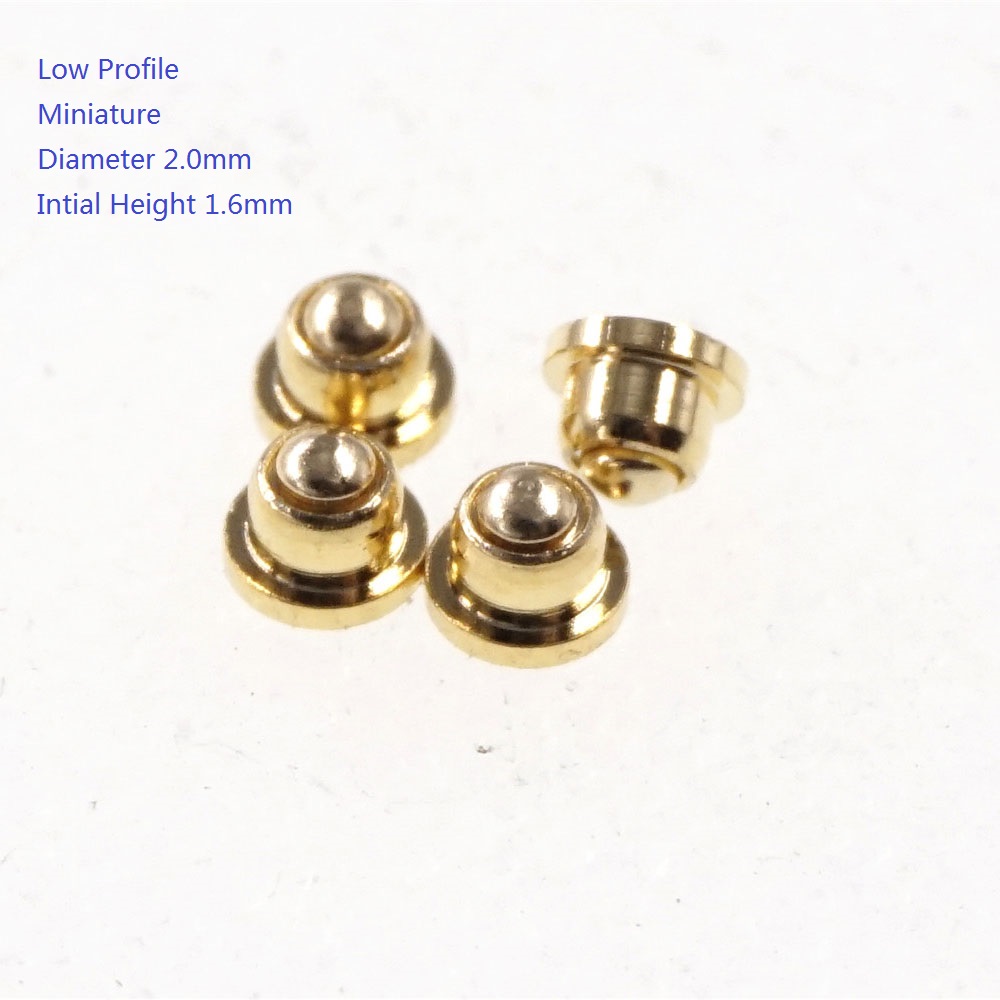

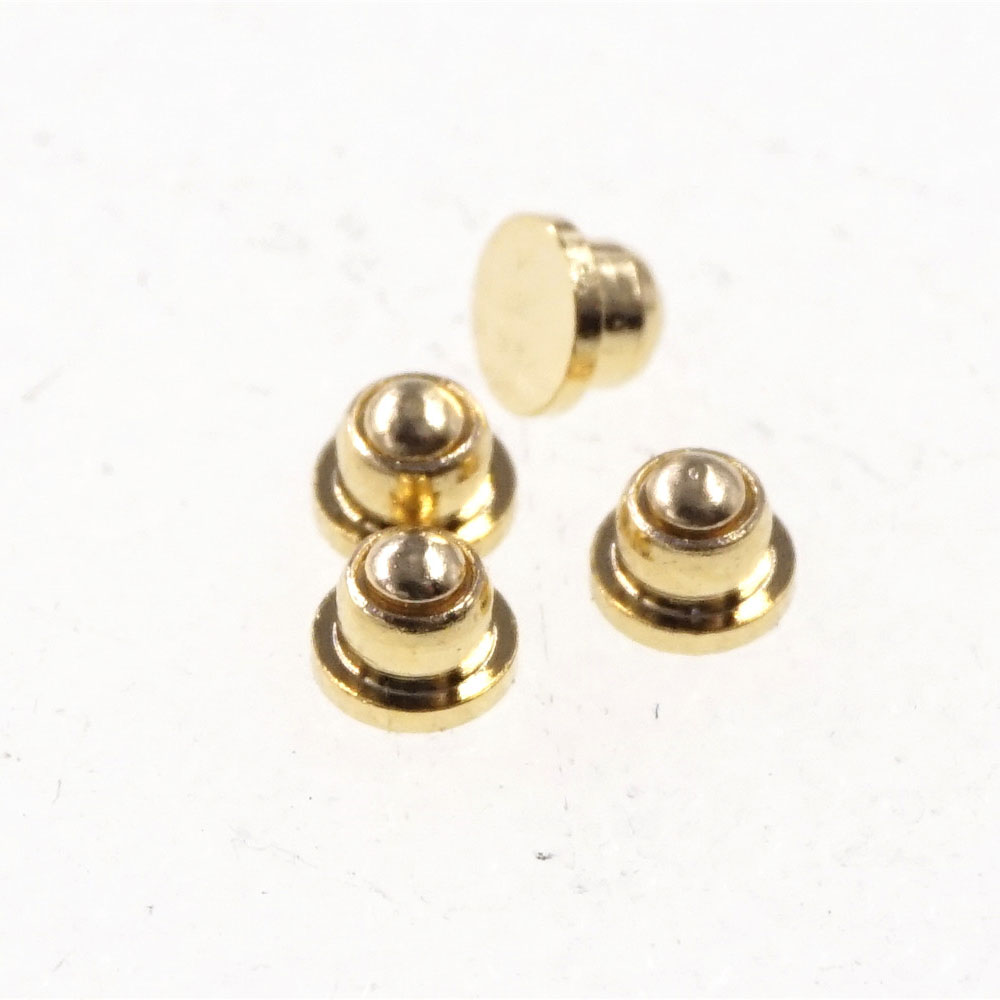

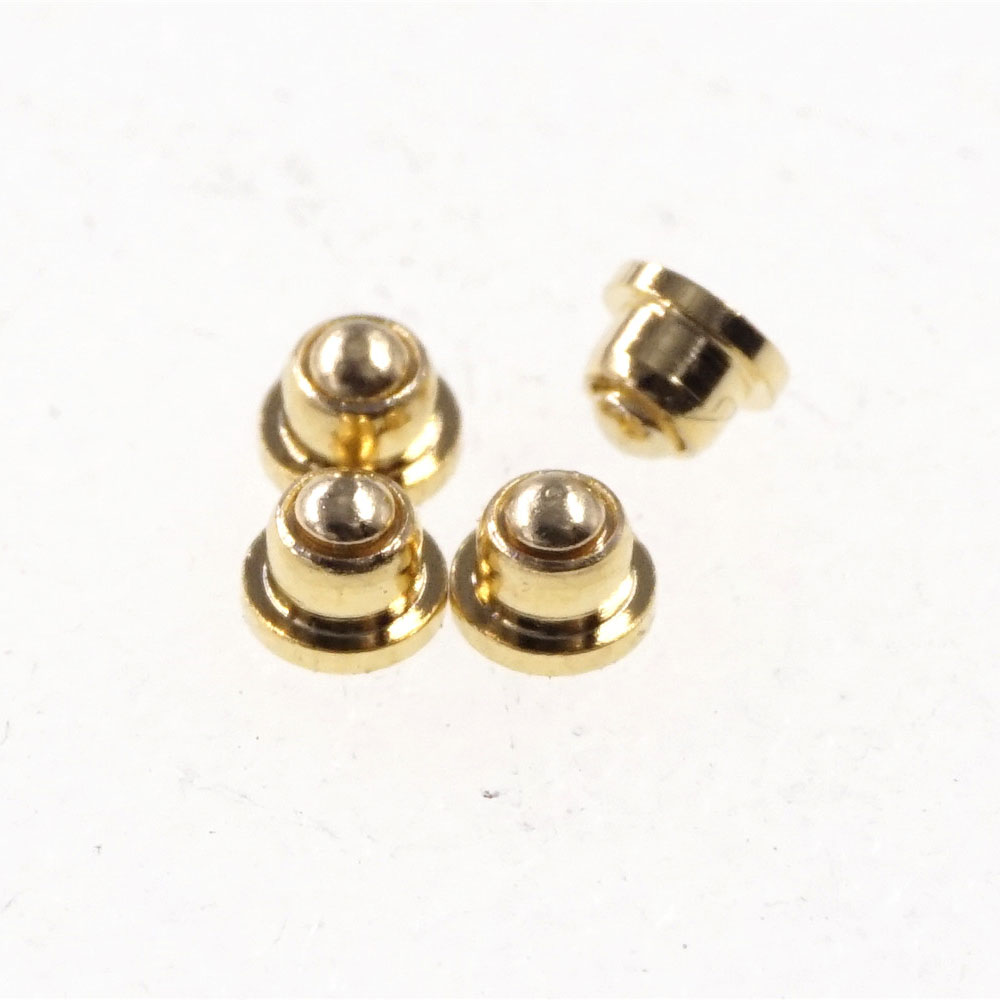

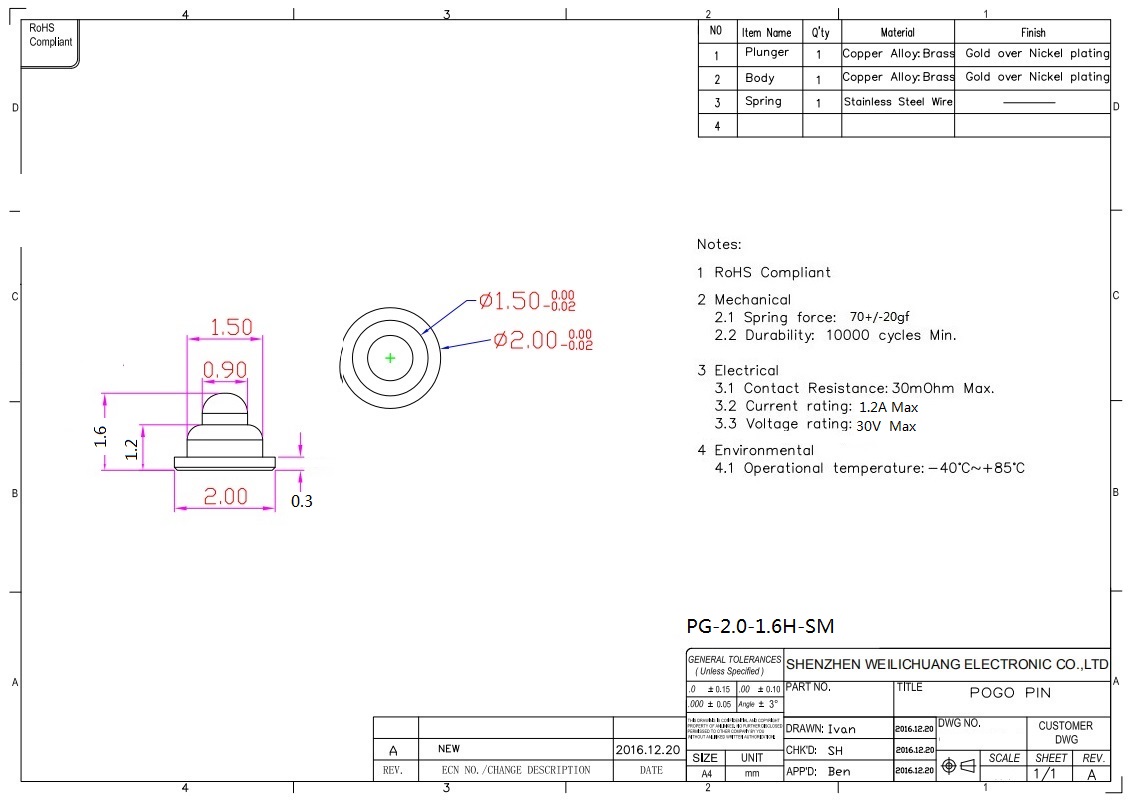

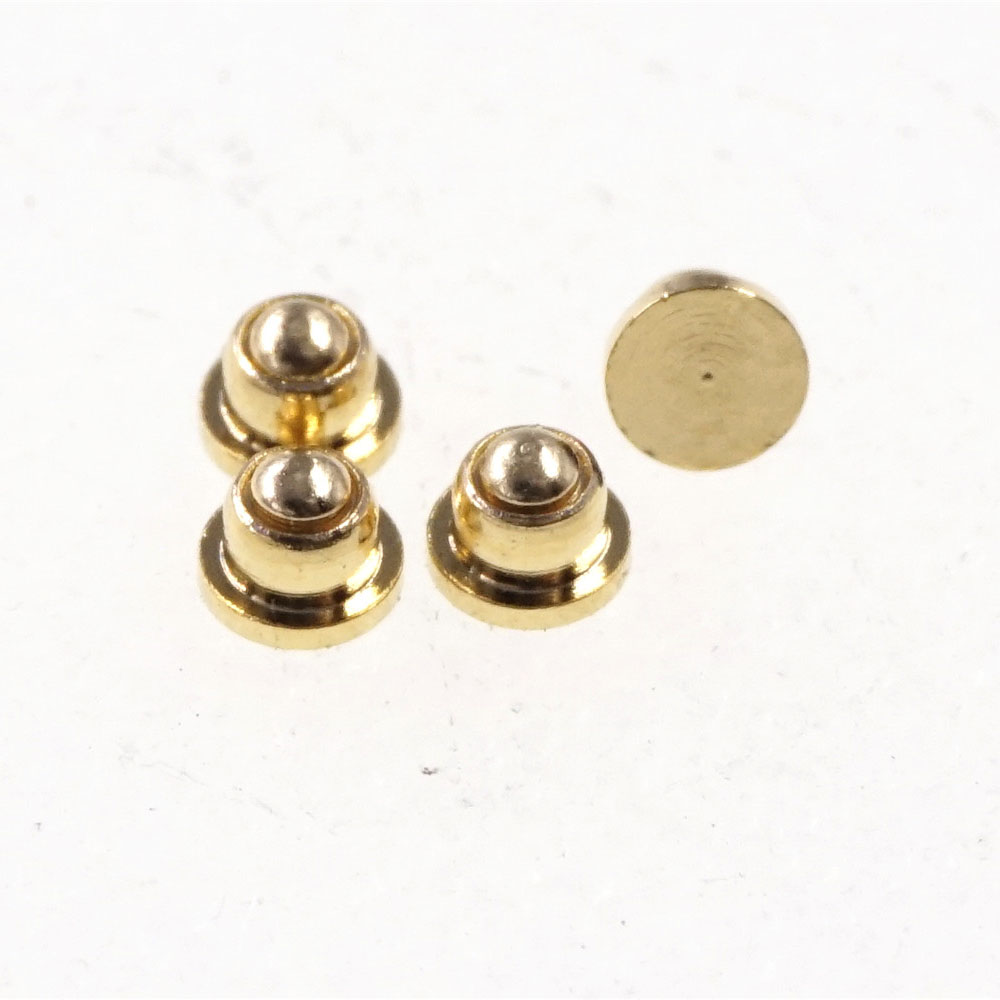

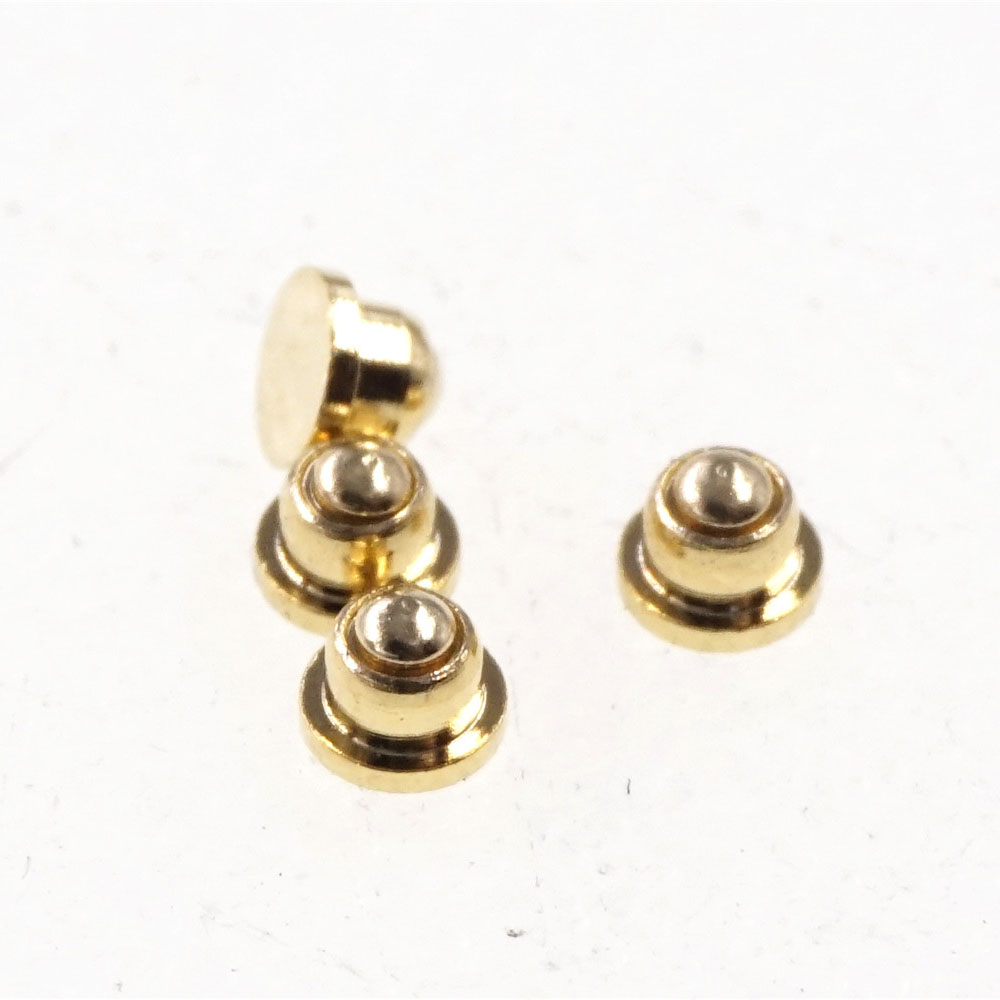

Miniature Pogo Pin Connector Diameter 2.0 mm Initial Height 1.6 mm Low Profile Header Male Spring Loaded thimble Probe
Miniature Pogo Pin Connector Diameter 2.0 mm Initial Height 1.6 mm Low Profile Header Male Spring Loaded thimble Probe

1.Material for plugger and body: Brass Alloy ,

Spring material: Stainless Steel Wire
2.Surface Treatment: Gold plated 1u, 3mirco inch over Nickle
3.Produce by: CNC Auto Lathe Machine
4.Sample leadtime: 5~8days
5.Application: Toy, Automotive, Instrument, Electronic Equippment,Battery Charge
Electronic:
a. Current rating: 1.2A
b.Spring force:50g~120g,can make according client requirement
c. Life cycles: 10000 max
d.Contact Resistance:30m Ohm


Miniature Pogo Pin Connector Diameter 2.0 mm Initial Height 1.6 mm Low Profile Header Male Spring Loaded thimble Probe
Miniature Pogo Pin Connector Diameter 2.0 mm Initial Height 1.6 mm Low Profile Header Male Spring Loaded thimble Probe
Miniature Pogo Pin Connector Diameter 2.0 mm Initial Height 1.6 mm Low Profile Header Male Spring Loaded thimble Probe
Miniature Pogo Pin Connector Diameter 2.0 mm Initial Height 1.6 mm Low Profile Header Male Spring Loaded thimble Probe
Miniature Pogo Pin Connector Diameter 2.0 mm Initial Height 1.6 mm Low Profile Header Male Spring Loaded thimble Probe
Miniature Pogo Pin Connector Diameter 2.0 mm Initial Height 1.6 mm Low Profile Header Male Spring Loaded thimble Probe
Miniature Pogo Pin Connector Diameter 2.0 mm Initial Height 1.6 mm Low Profile Header Male Spring Loaded thimble Probe
