Single Spring Pin Male

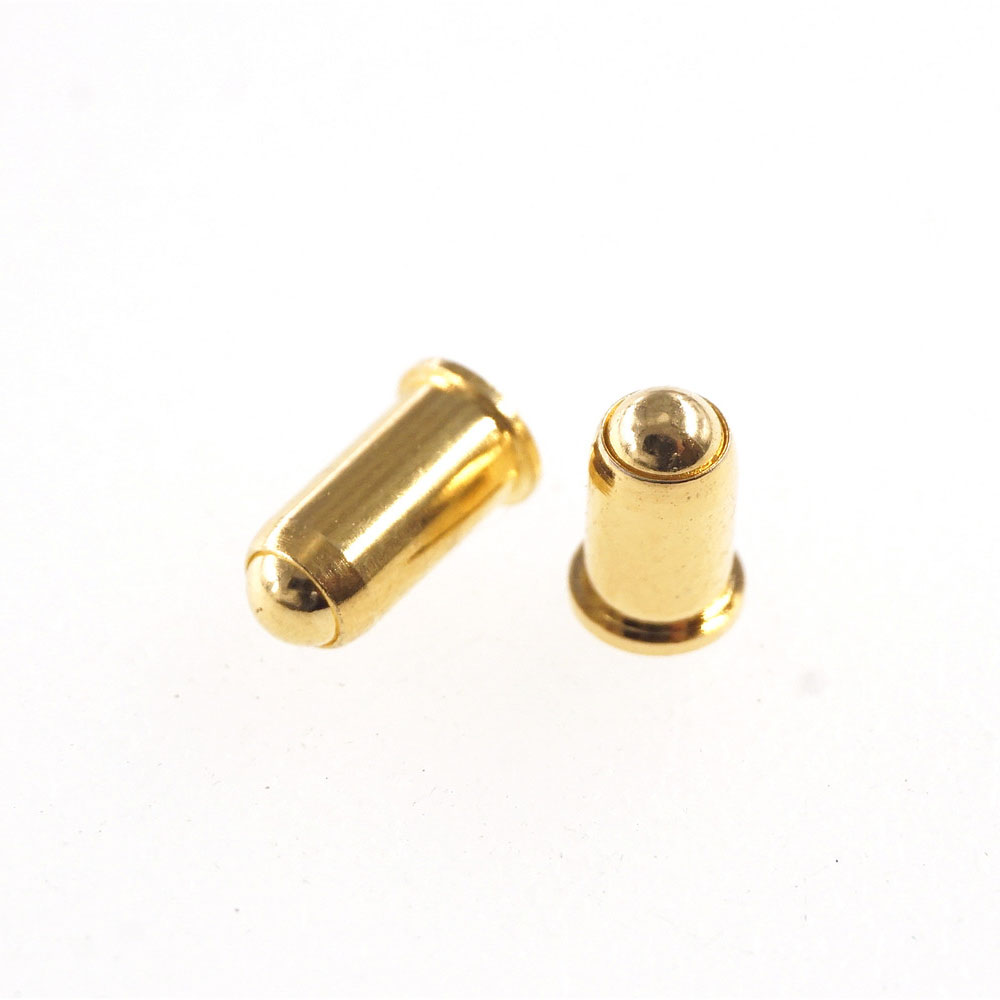

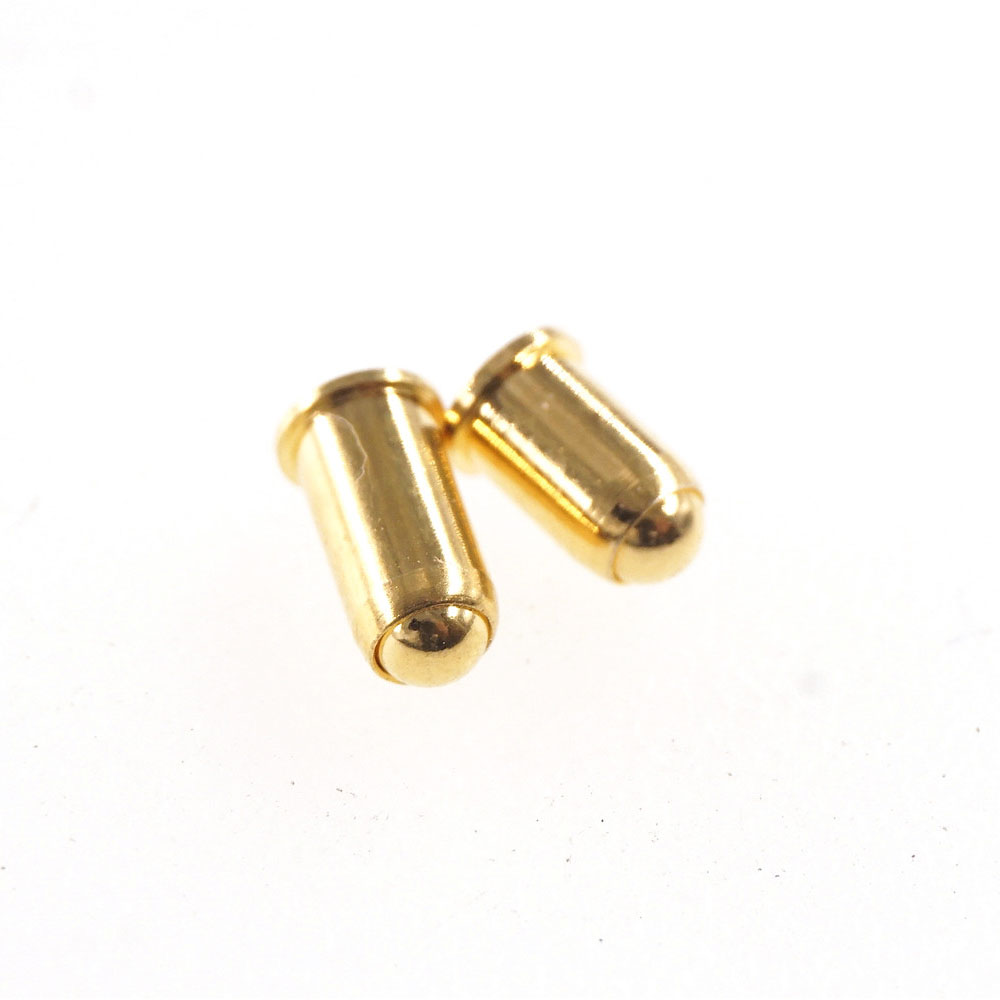

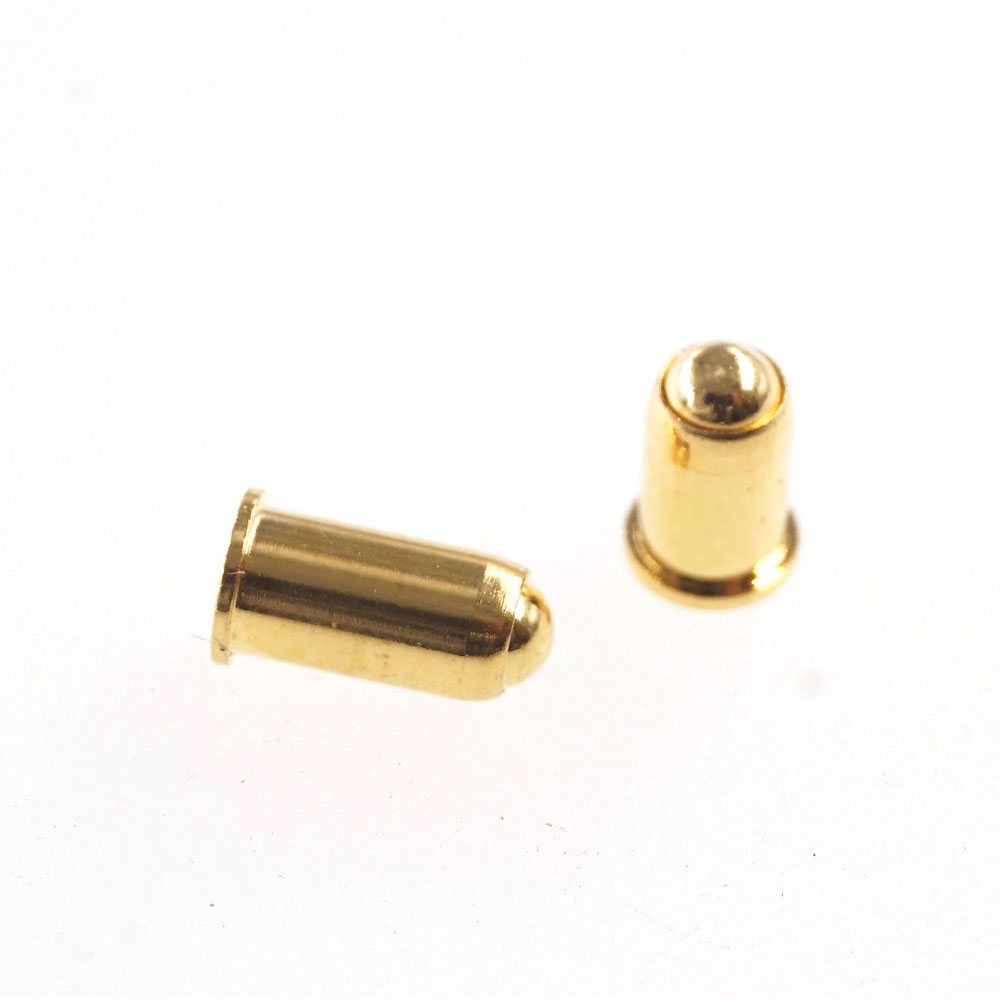

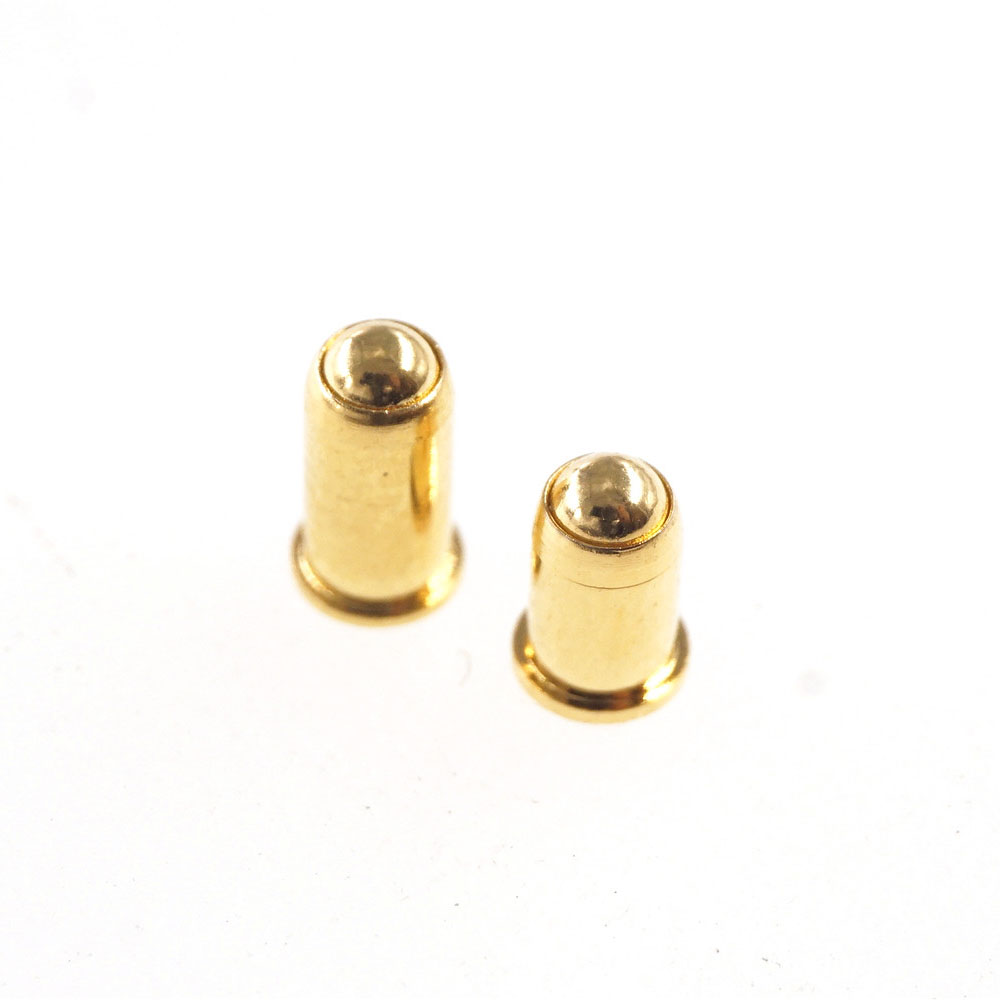

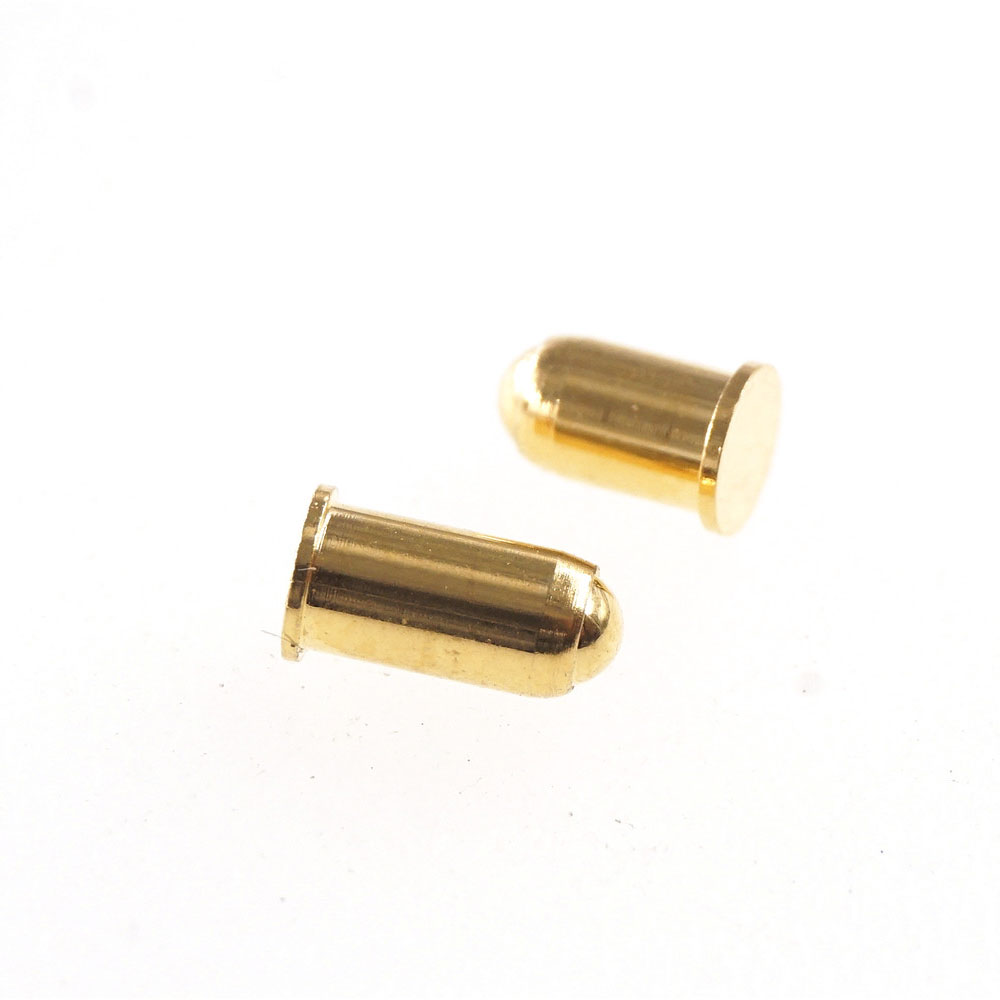

3.0 MM Diameter Flange Spring Loaded Brass Ball Pogo Pin Connector Ballpoint Gold Plated Rolling Contact Hight Current
3.0 MM Diameter Flange Spring Loaded Brass Ball Pogo Pin Connector Ballpoint Gold Plated Rolling Contact Hight Current

Note: Product to be met RoHS

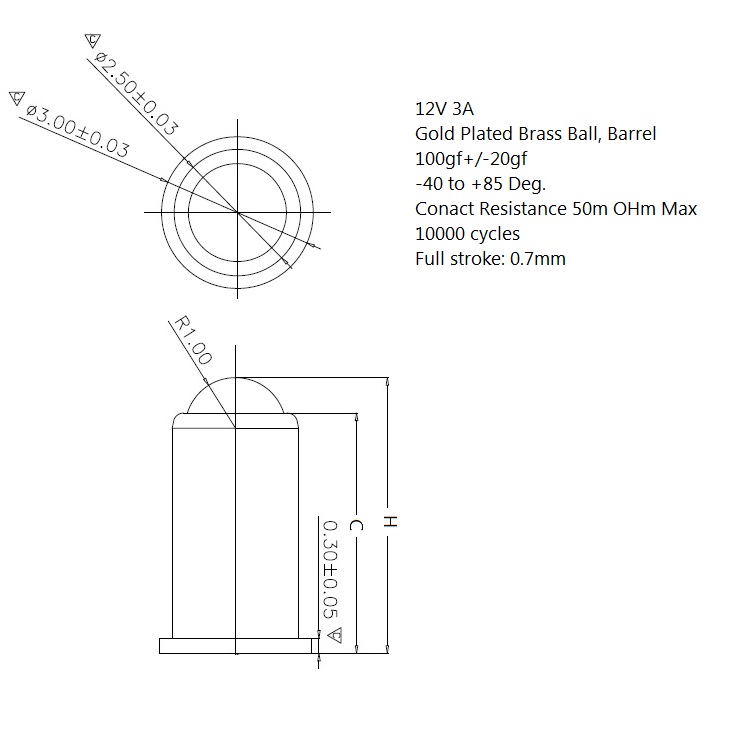

1. Material:
Contact: Brass
Spring: Stainless Steel Wire
Plunger: Brass
2. Plating
Body: Min 5 u Gold plating over Nickel
Plunger: Min 5 u Gold Plating over Nickel
3. Mechanical:
Durability: 10000 Cycle Min.
Force: 100gf+/-20g
4. Electrical:
Voltage rating: 12V DC
Current Rating: 3.0A
Contact Resistance: 50 mΩ Max.
5. Envirmental:
Temperature Range: -40~+85℃
