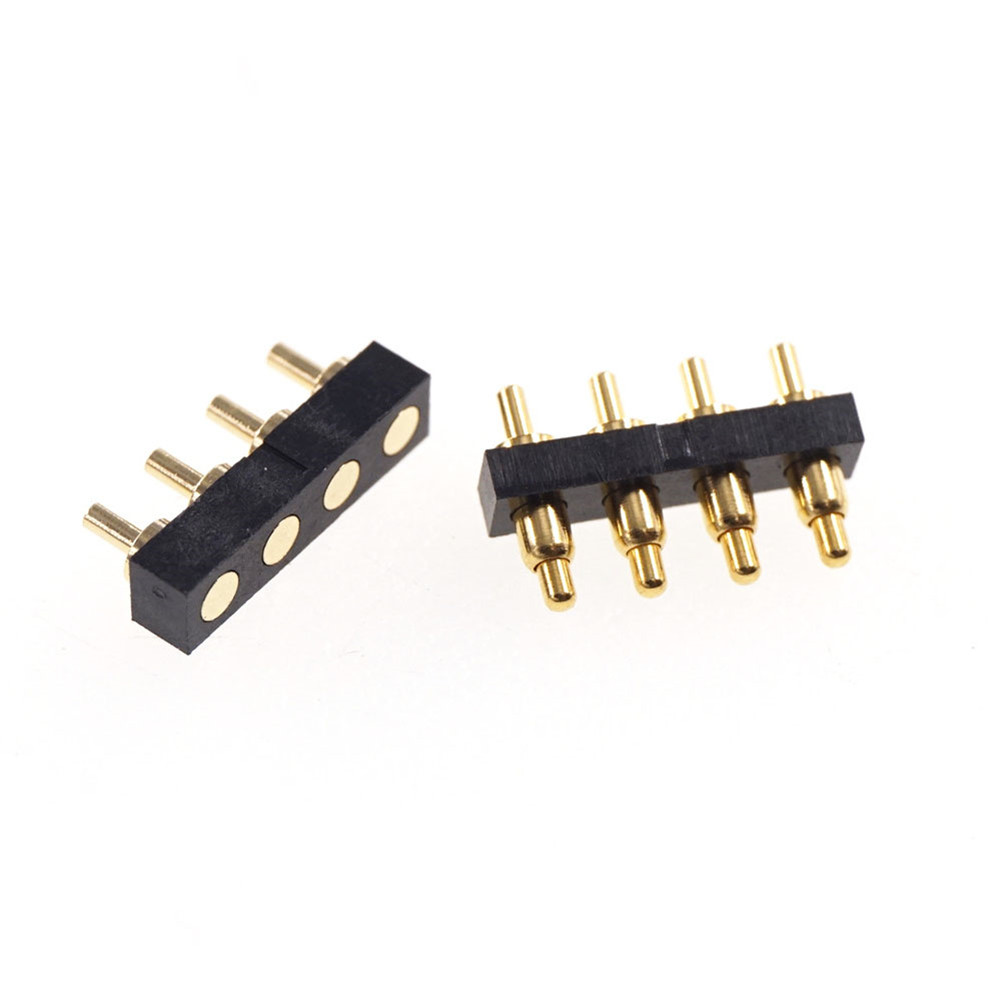

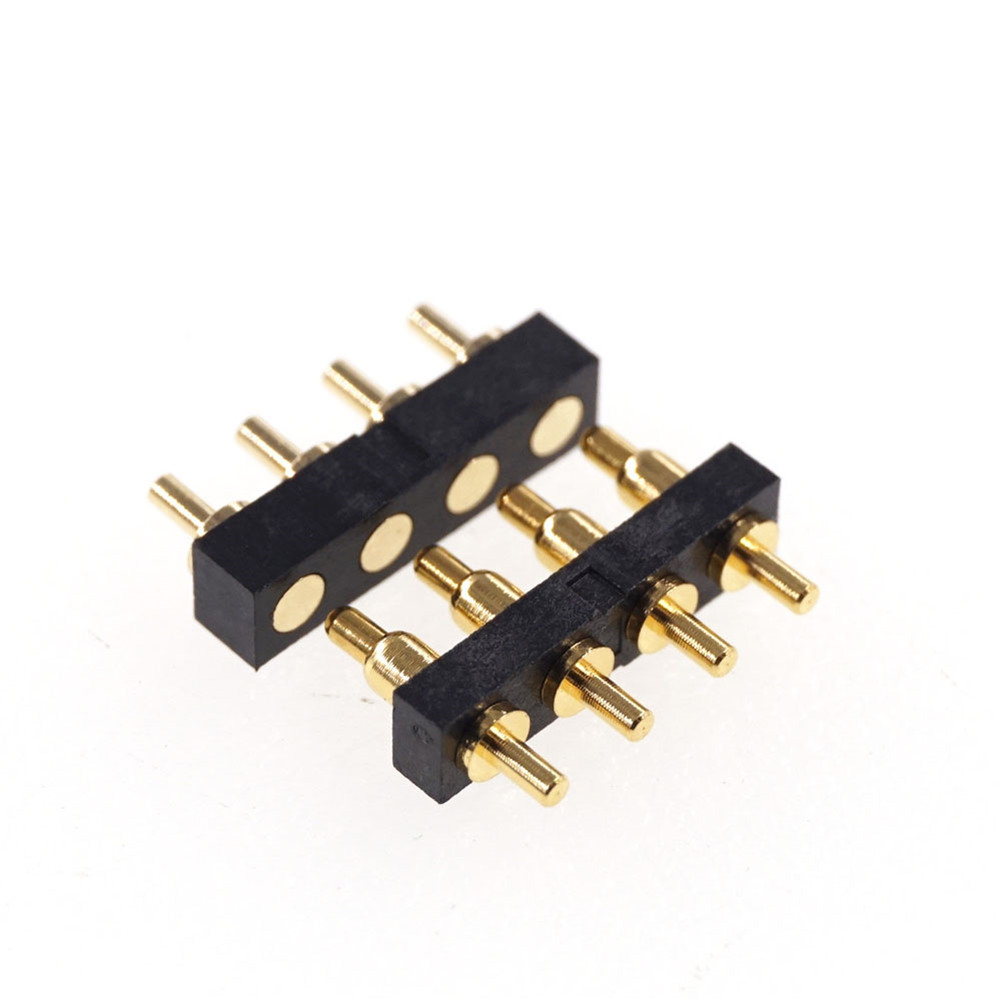

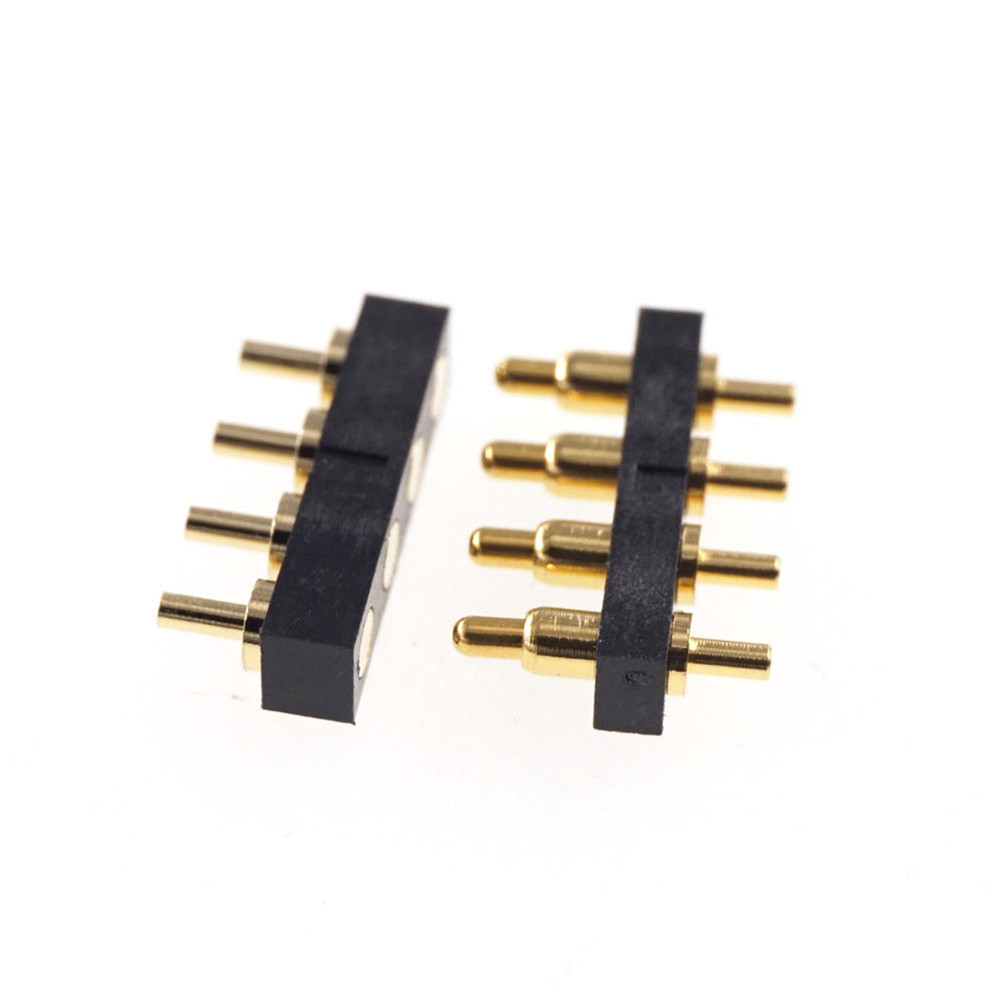

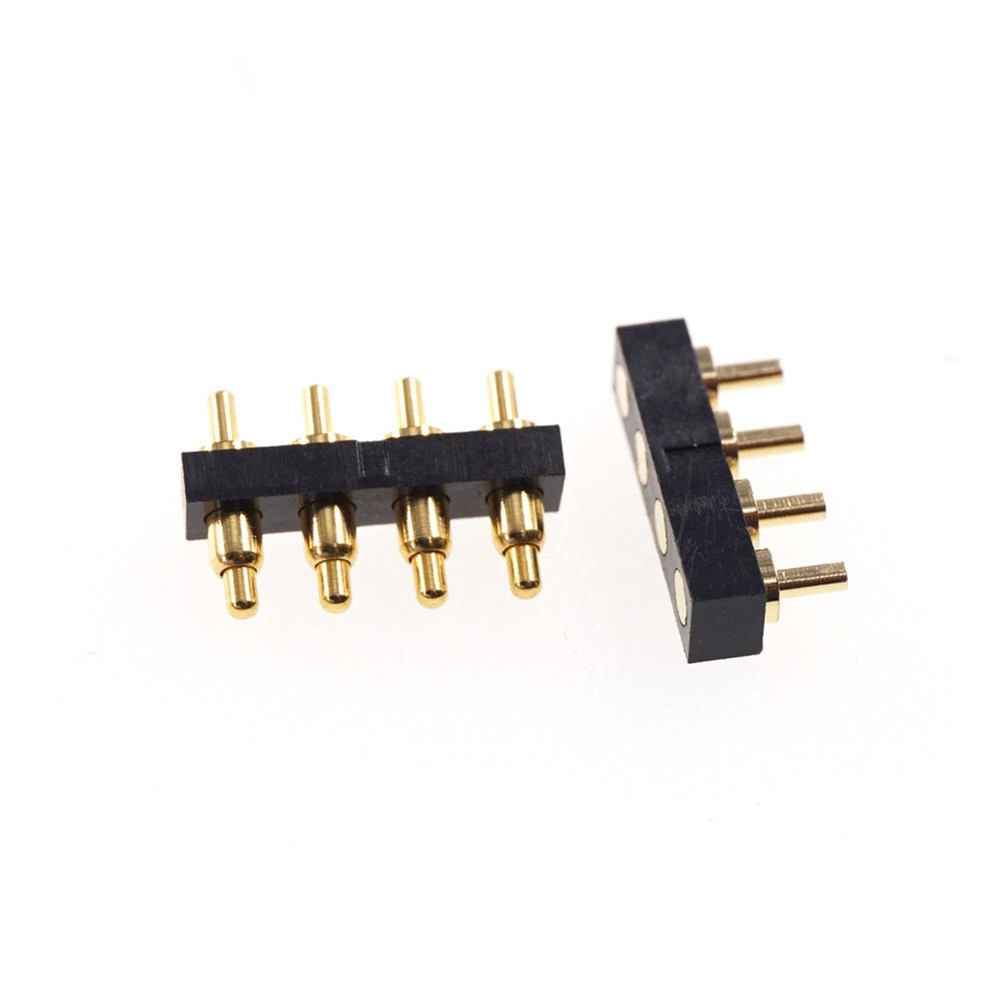

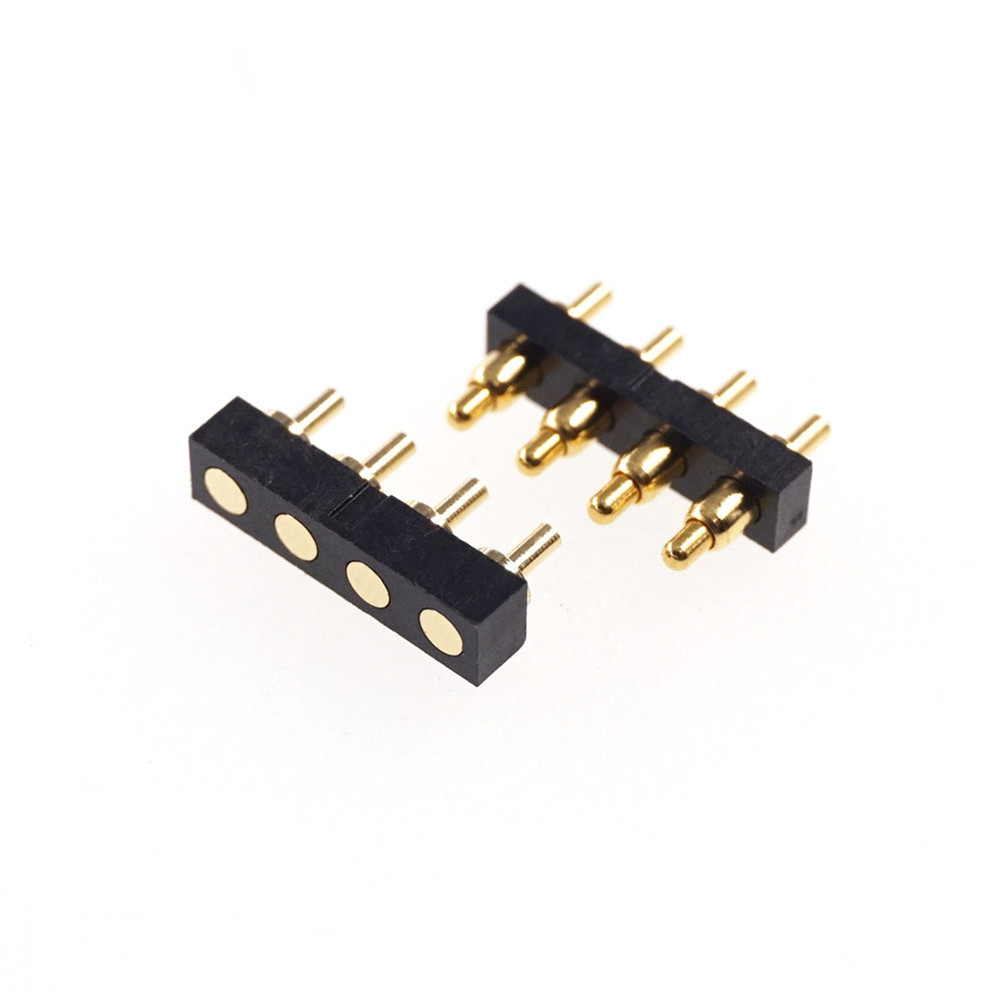

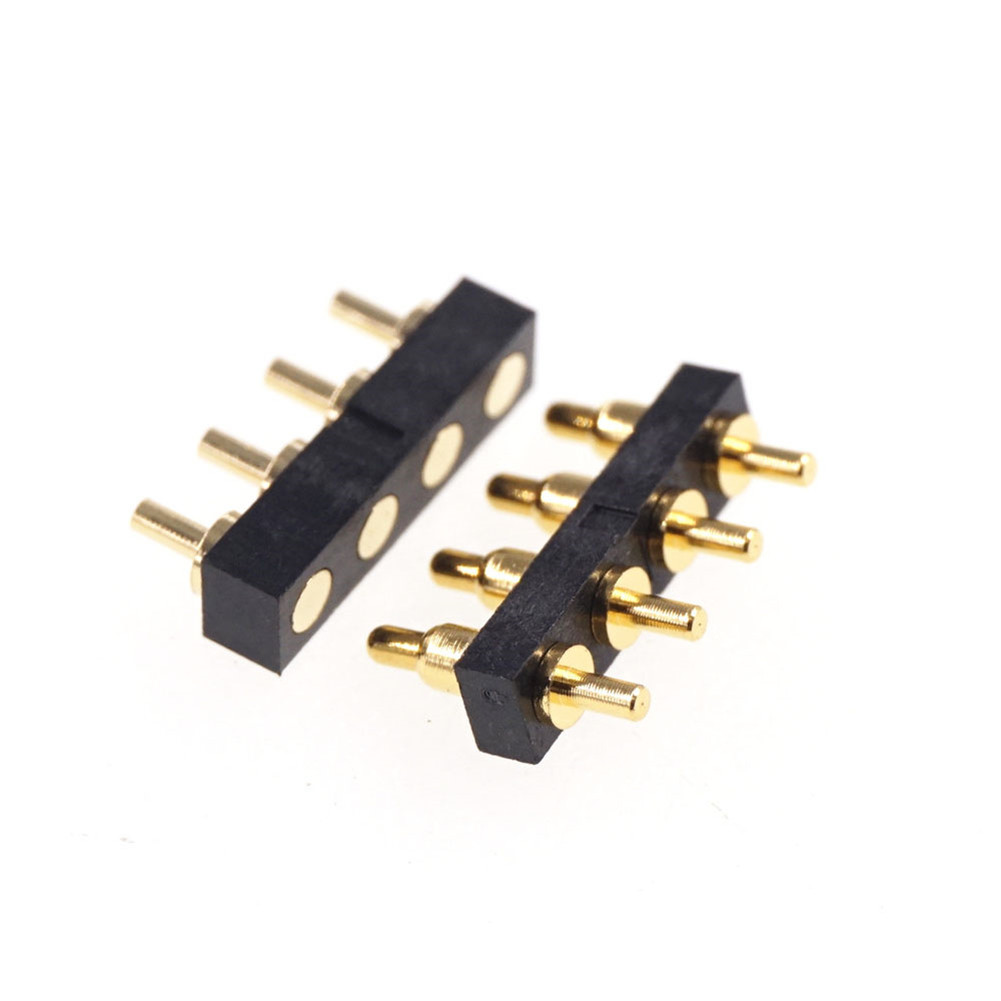

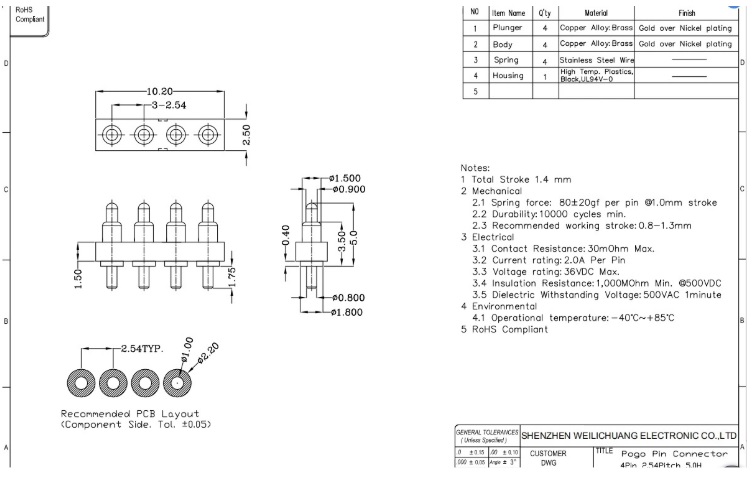

Spring Loaded Connector Pogo Pin 4 Pin 2.54 mm Pitch Through Holes PCB Vertical Single Row Strip

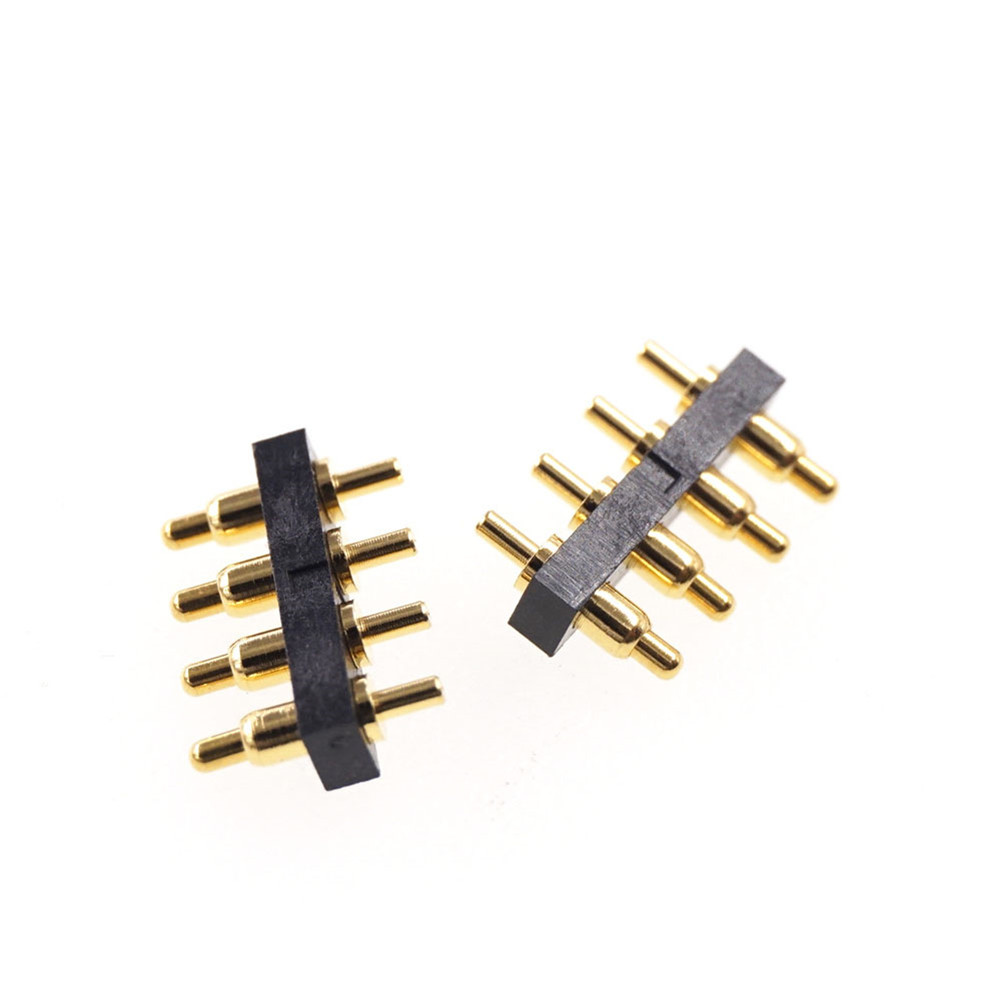

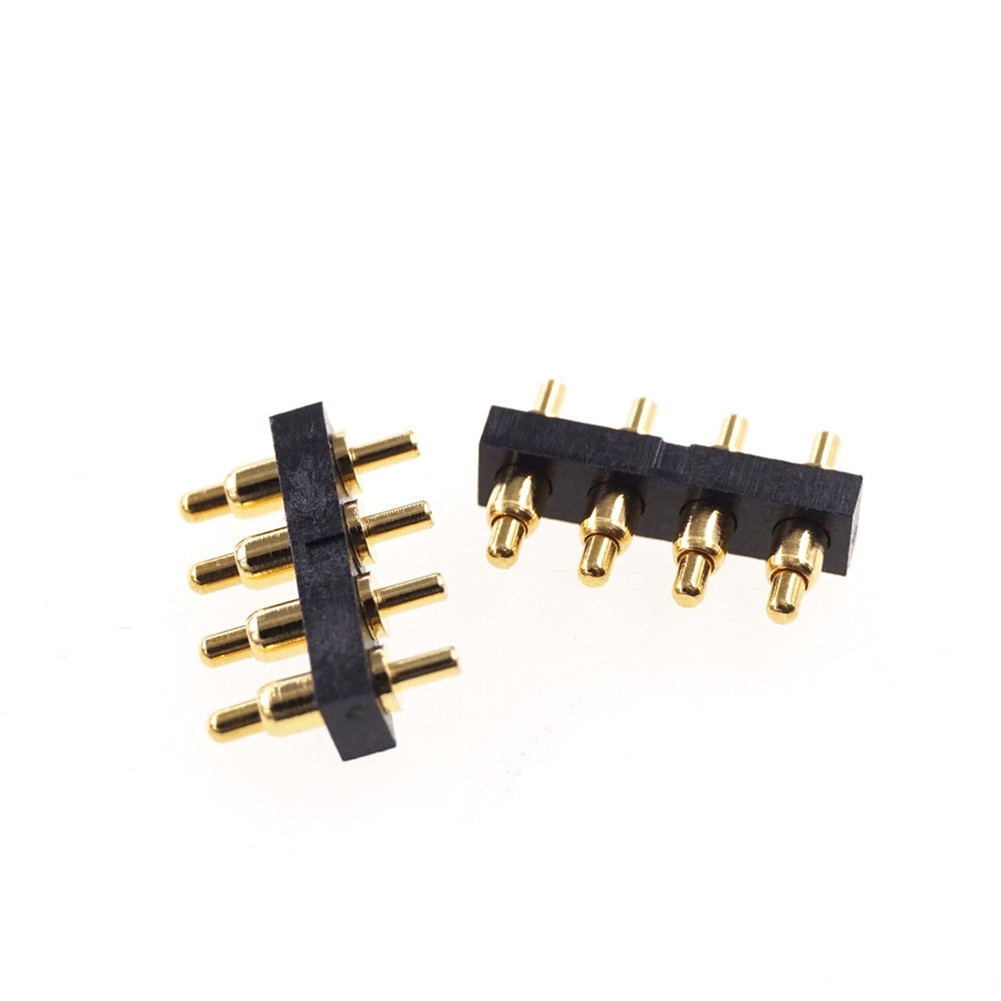

Male Pogo Pin (With Spring Loaded) Height 5.0mm Above PCB

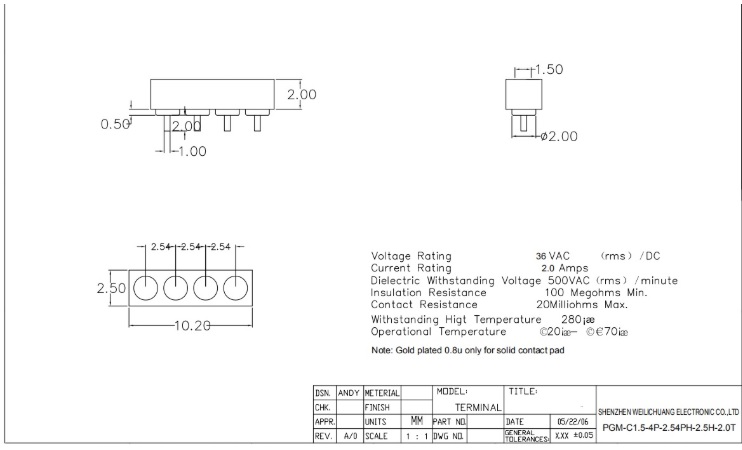

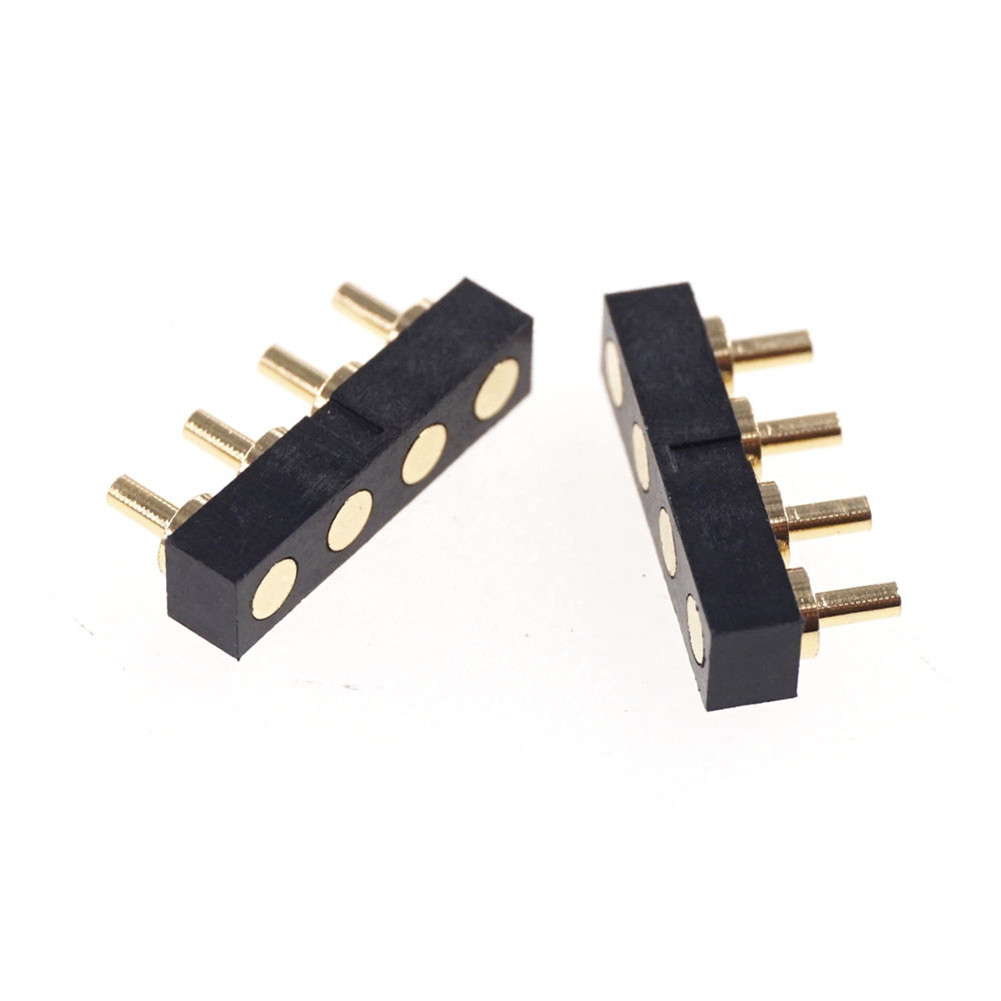

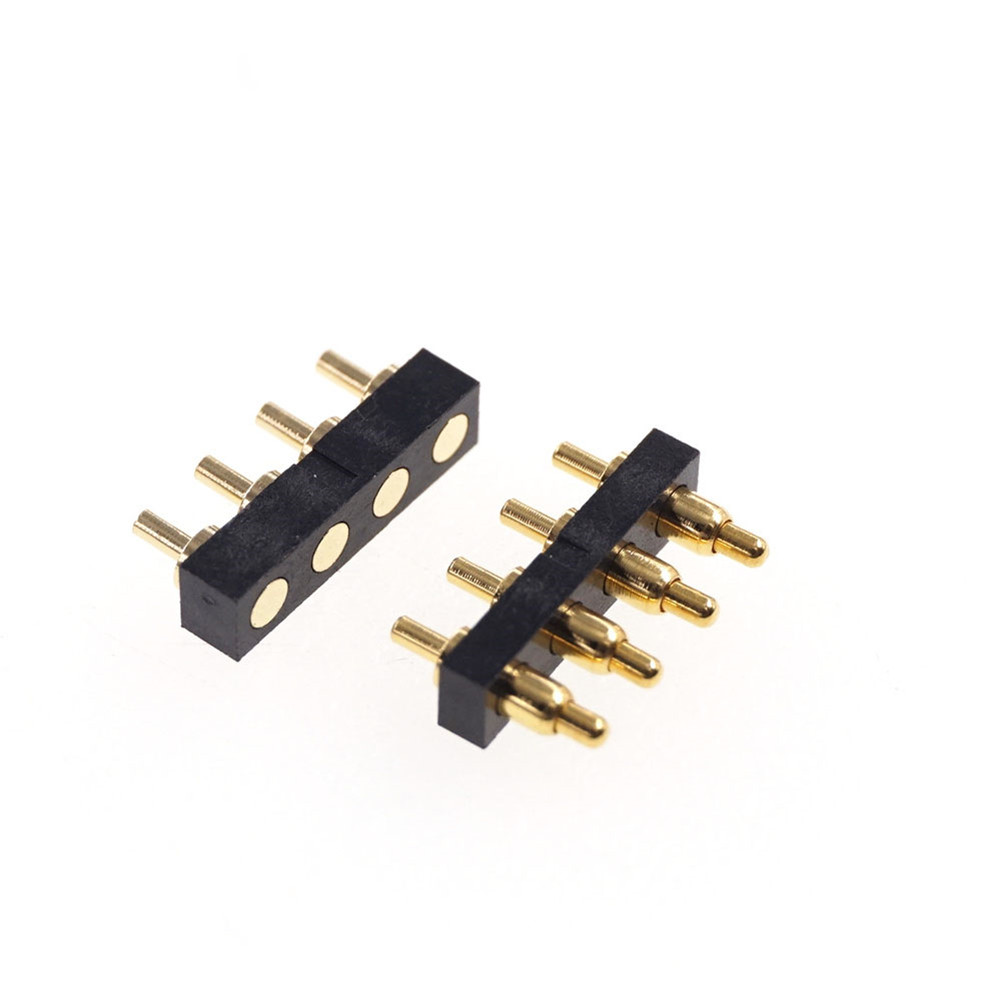

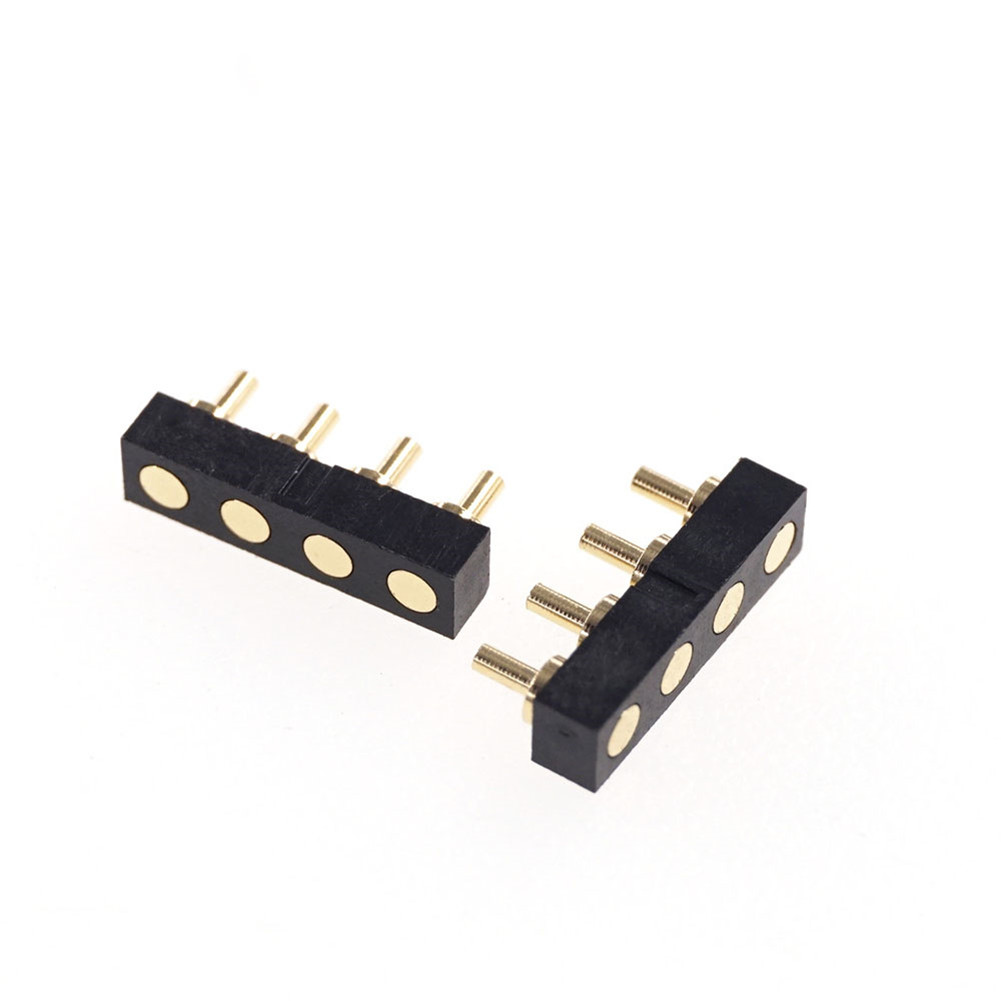

Female Pad (No Spirng Loaded) Height 2.5mm Above PCB

1.Material for plugger and body: Brass Alloy ,

2.Surface Treatment: Gold plated 1 mirco inch, 3mirco inch over Nickle

3.Produce by: CNC Auto Lathe Machine

4.Sample leadtime: 5~8days

5.Application: Automotive, Instrument, Electronic Equippment,Battery Charge

6.Package: in bulk

Electronic:

a. Current rating: 2A 36VDC

b.Spring force:60g,can make according client requirement

c. Life cycles: 10000 max

d.Contact Resistance:30m Ohm
