Product name:High Current Pogo Pin

Plating:Gold 5u

Rated:3 Amps

Keywords:Ball Point

Packaging:Bulk

Supplier Type:Original manufacturer

Product Description

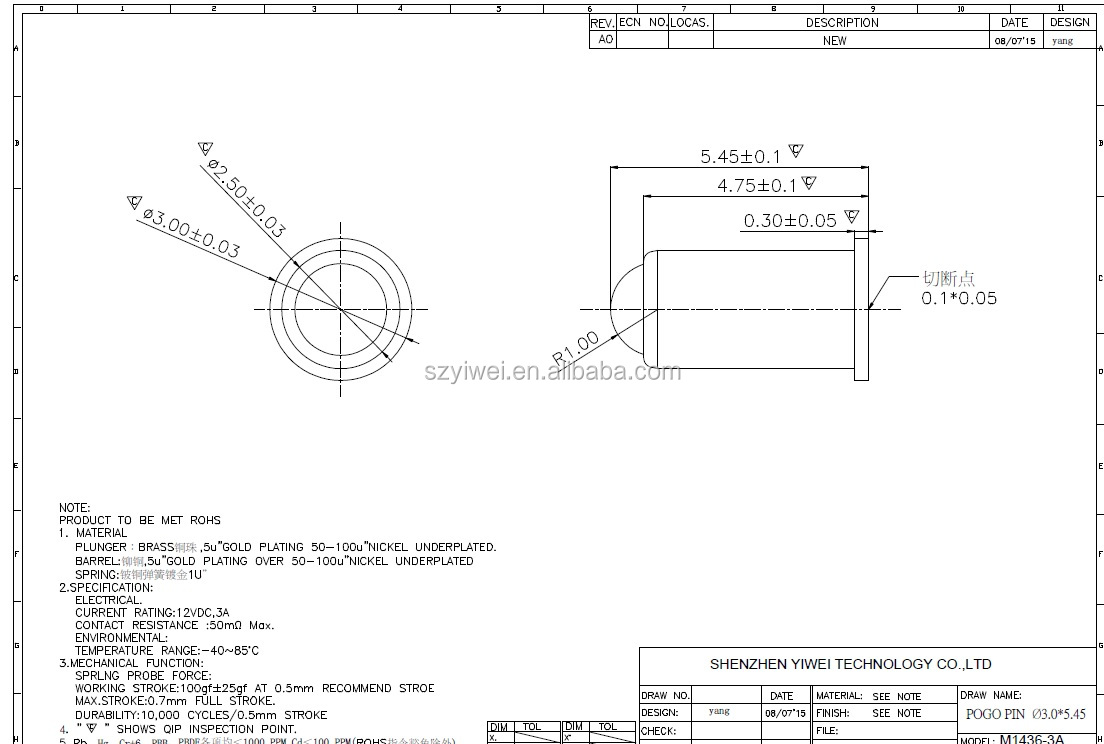

High Current 3 Amps SMD Gold Plated 5u Brass Connector Spring-Loaded 3.0mm Flange Short stroke Ball Point Pogo Pin Connector

Packed in bulk/Polybag

Note: Product to be met RoHS

1. Material:

Contact: Brass

Spring: Stainless Steel Wire

Plunger: Brass

2. Plating

Body: Min 5 u Gold plating over Nickel

Plunger: Min 5 u Gold Plating over Nickel

3. Mechanical:

Durability: 10000 Cycle Min.

Force: 80gf+/-20g

4. Electrical:

Voltage rating: 12V DC

Current Rating: 3.0A

Contact Resistance: 30 mΩ Max.

5. Envirmental:

Temperature Range: -40~+85℃
