12V 3 AMP Battery Connectors 3.0x5.45
12V 3 AMP Battery Connectors 3.0x5.45

Model Number:M1436

Type:Header & Socket, Headers and PCB Receptacles

Place of Origin:Guangdong, China

Brand:RTLECS

Application:Sweeper,Machinery,Medical,Industrial,IOT

Interface Type:Spring Contact

Packaging:in Bulk, Bulk

Color:Black

Material:Brass Alloy

Description:Pogo Pin Magnetic

Features:High Current Low Voltage

Number of Rows:Single

Inquiry Now Download
12V 3 AMP Battery Connectors 3.0x5.45
12V 3 AMP Battery Connectors 3.0x5.45
12V 3 AMP Battery Connectors 3.0x5.45
12V 3 AMP Battery Connectors 3.0x5.45
12V 3 AMP Battery Connectors 3.0x5.45

Mounting Type:PCB Solder

Connector Usage:Power Charge

Number of Columns:0

Feature:High Current

Product name:Pogo Pin Header

Positon:discrete Spring Load pin

Plating:Gold Palting

Keywords:Power Charge Connector

Supplier Type:Original manufacturer


Products Description

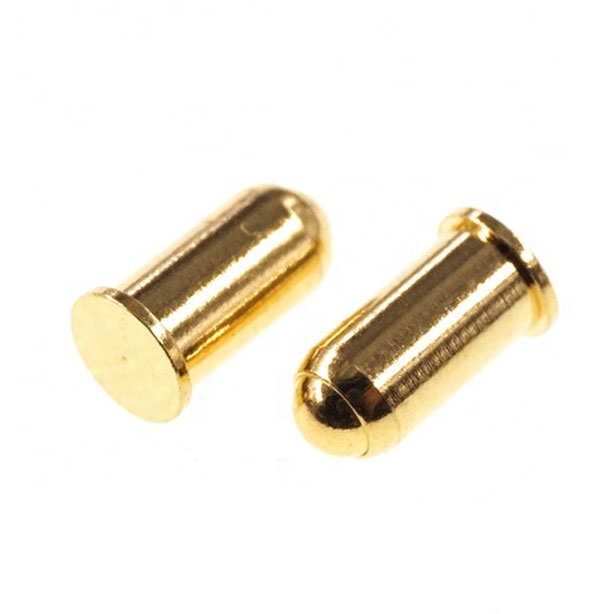

12V 3 AMP Battery Connectors 3.0x5.45 Power Charge Contact M1436 Low Voltage Spring Load SMD Pogo Pin 3A High Current Connector

Customized sizes welcome
