Magnetic 2.54 mm Pitch

HOME >> Products >> Magentic Pogo Pin Connector >> Magnetic 2.54 mm Pitch

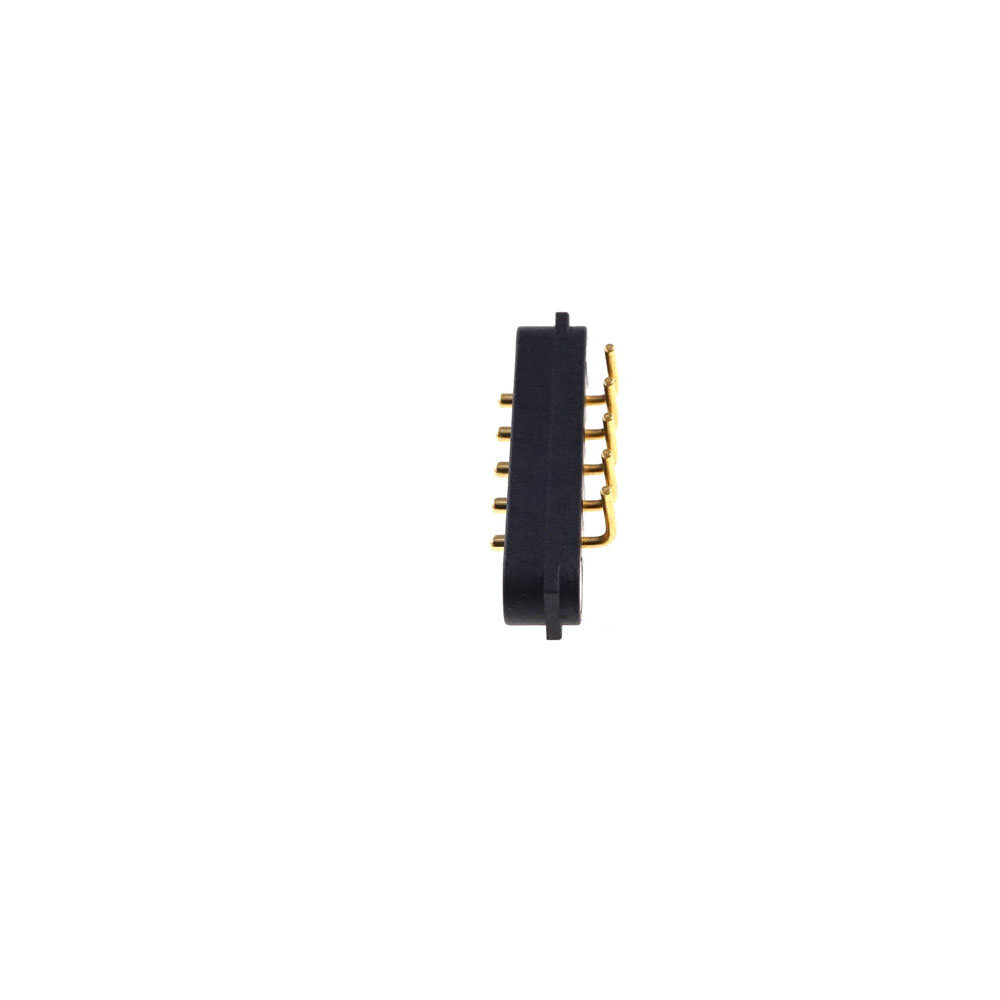

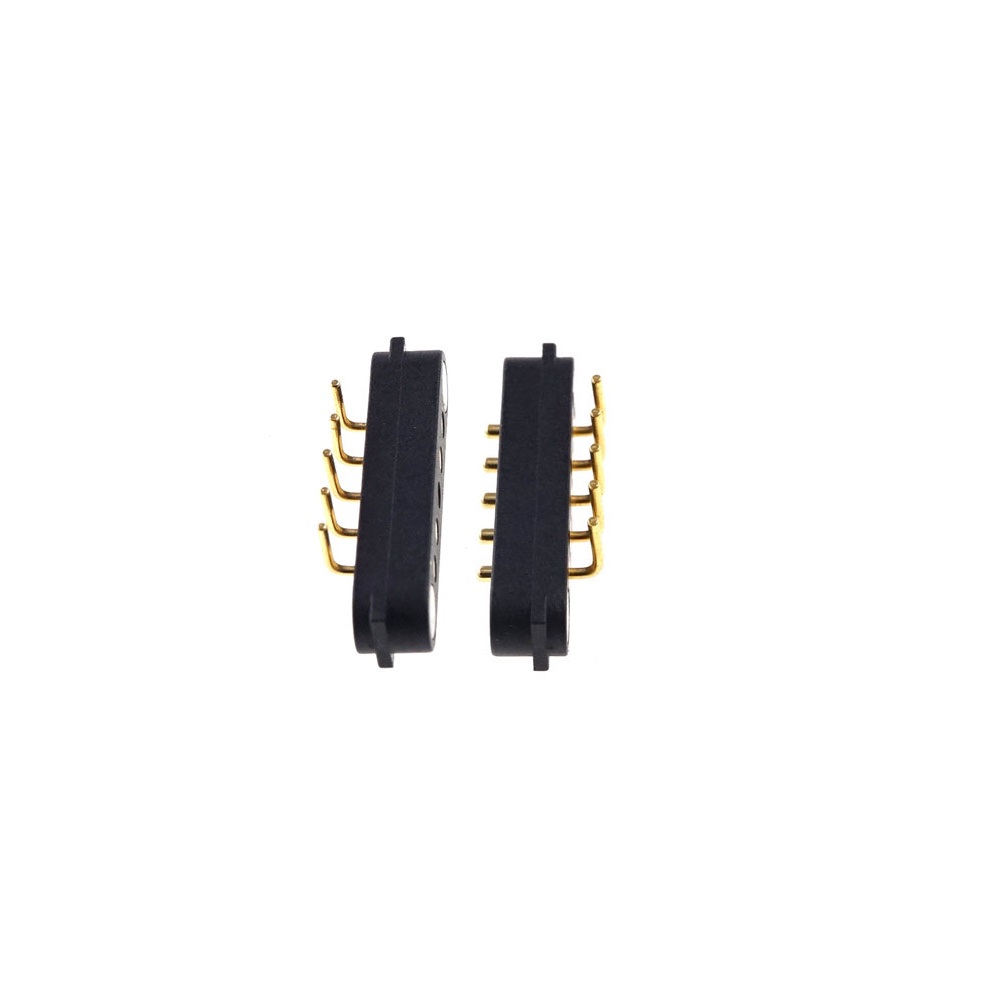

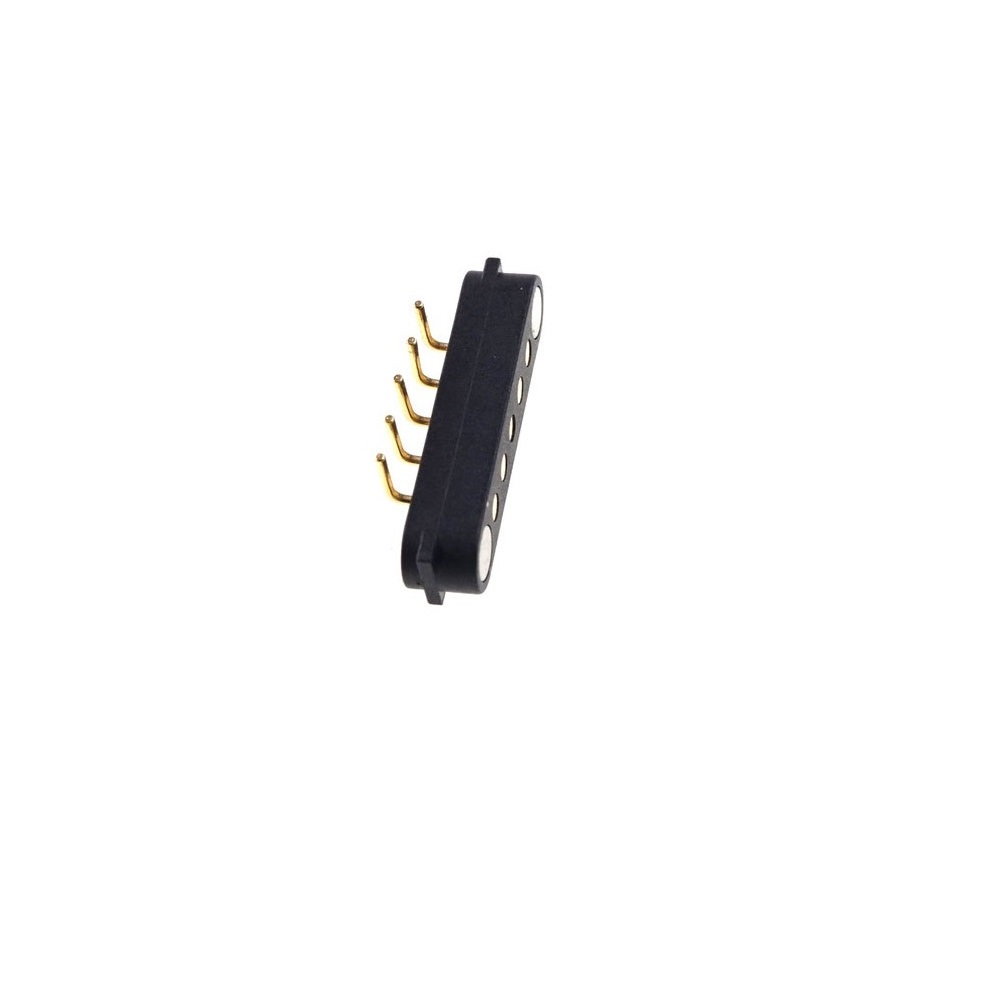

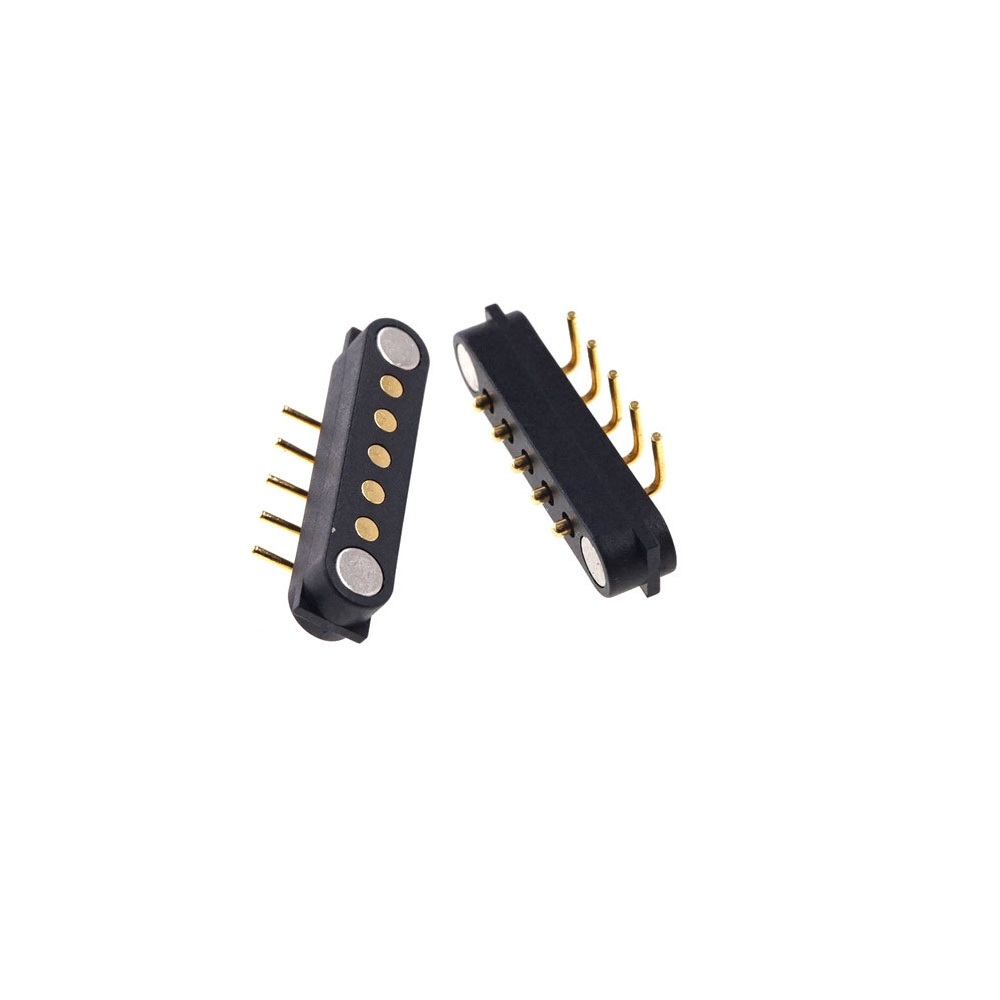

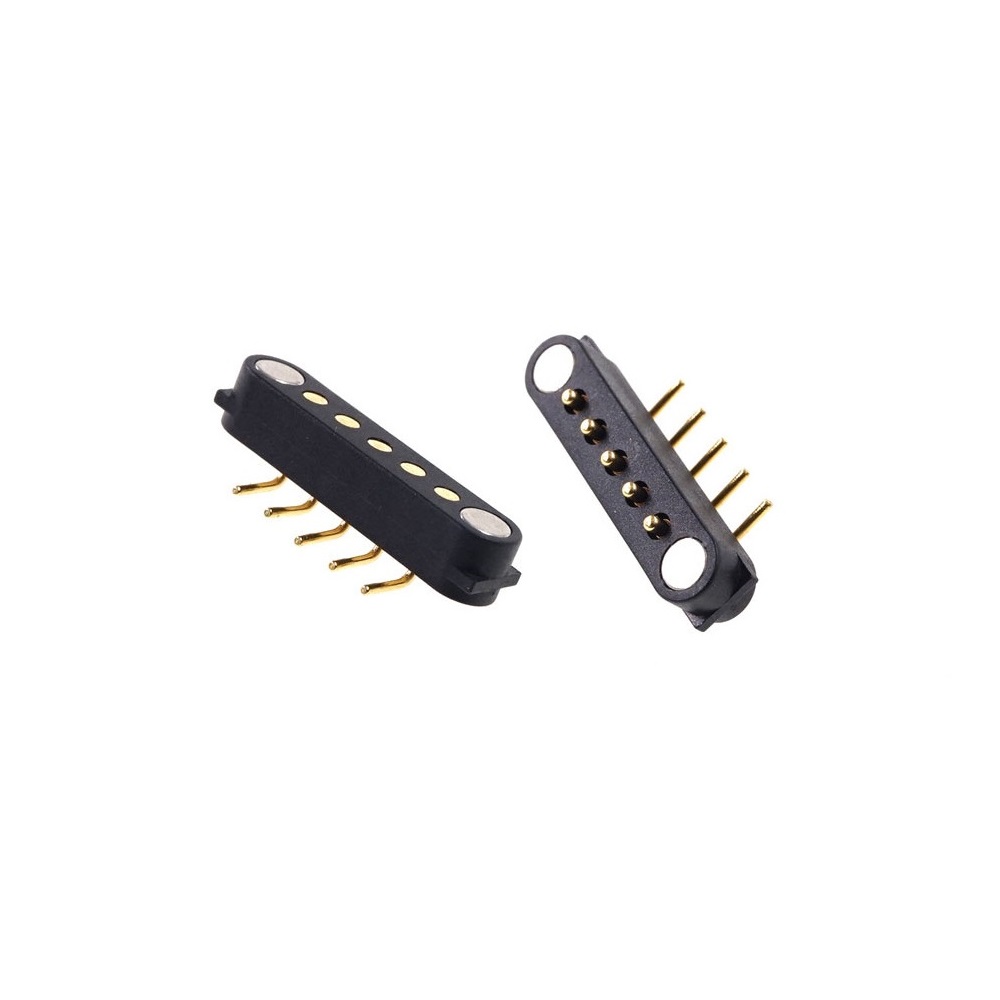

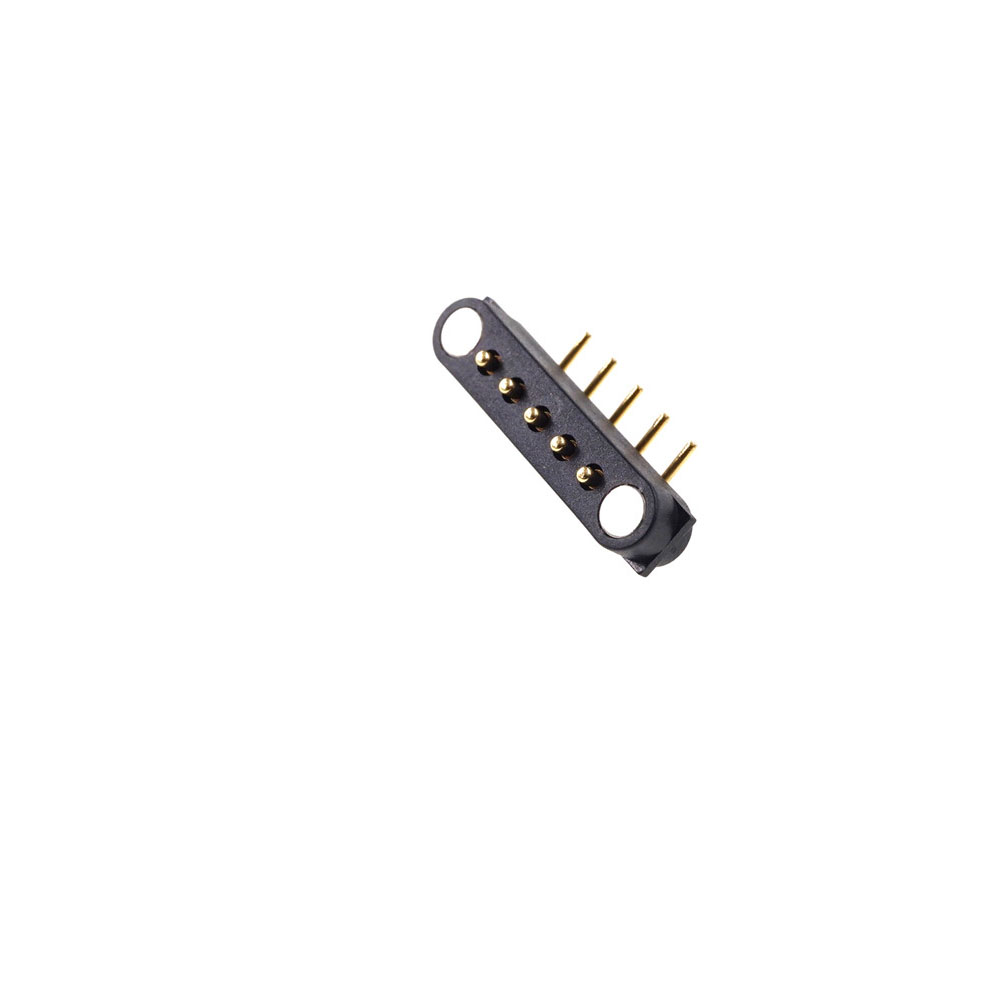

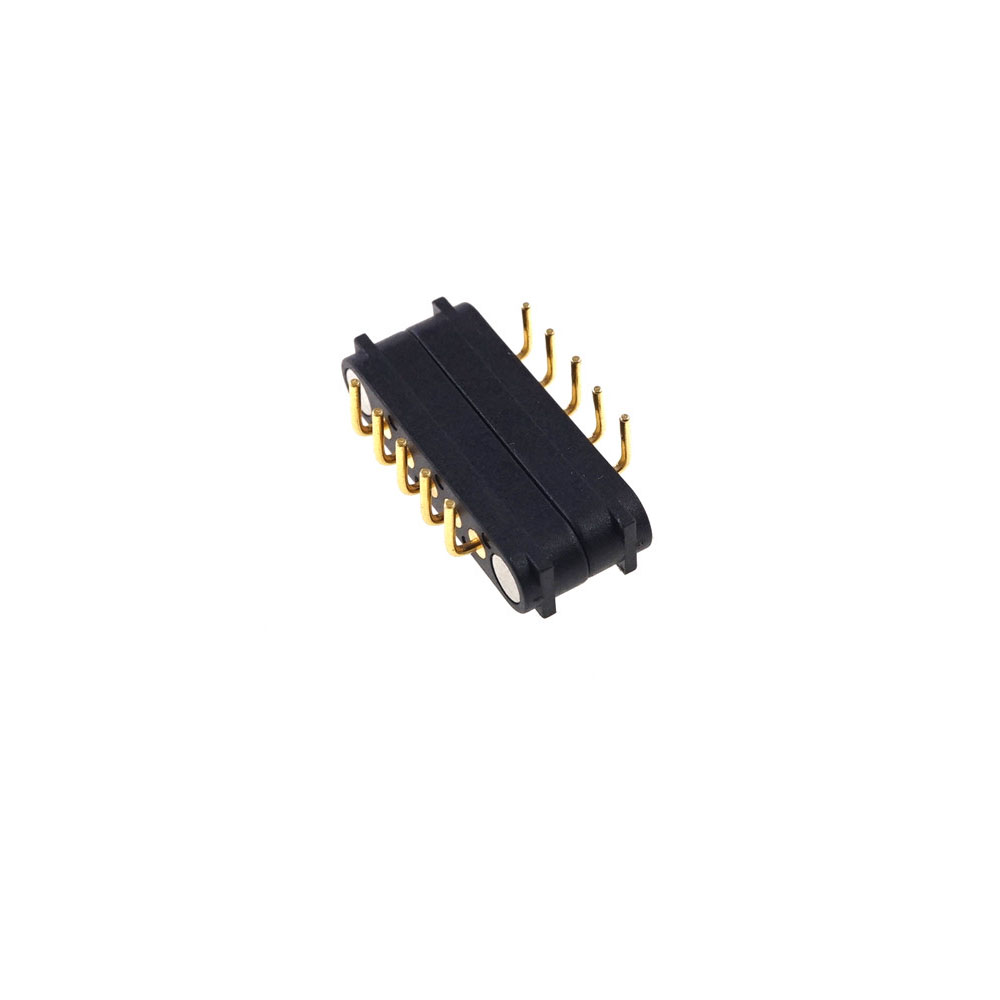

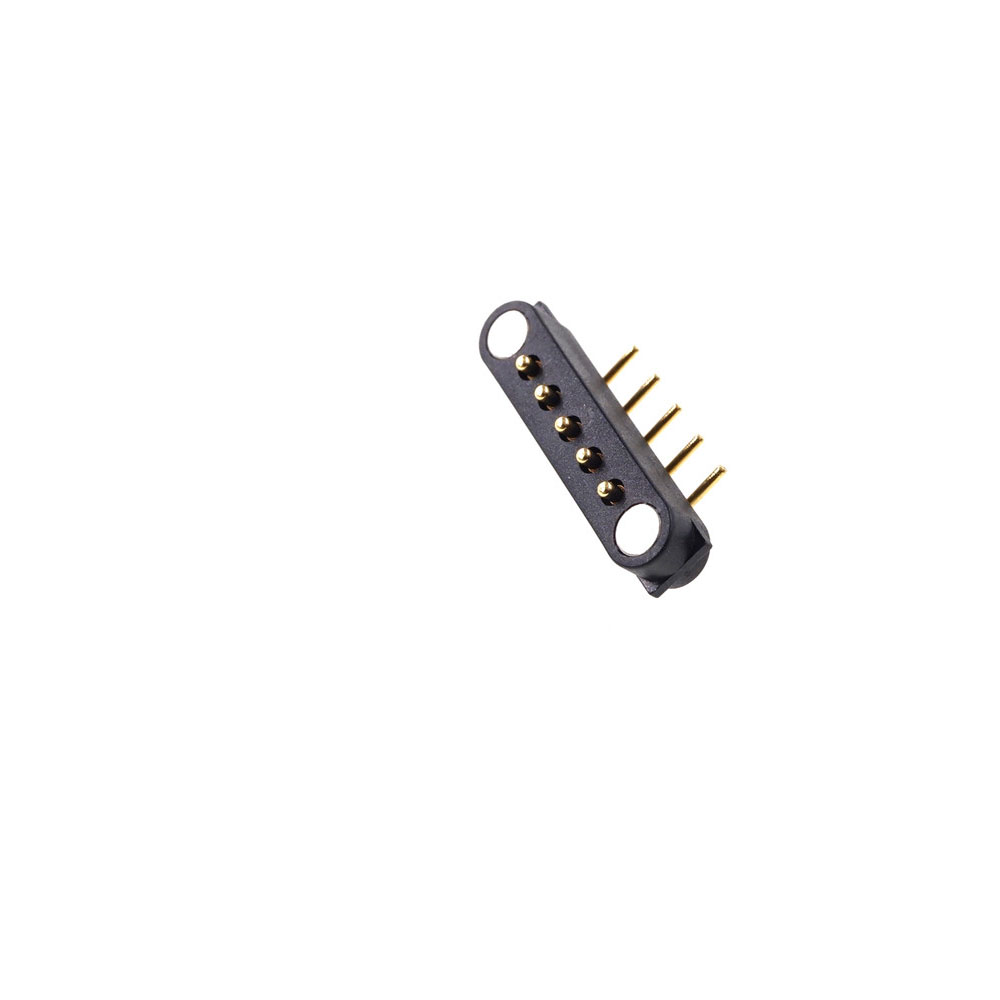

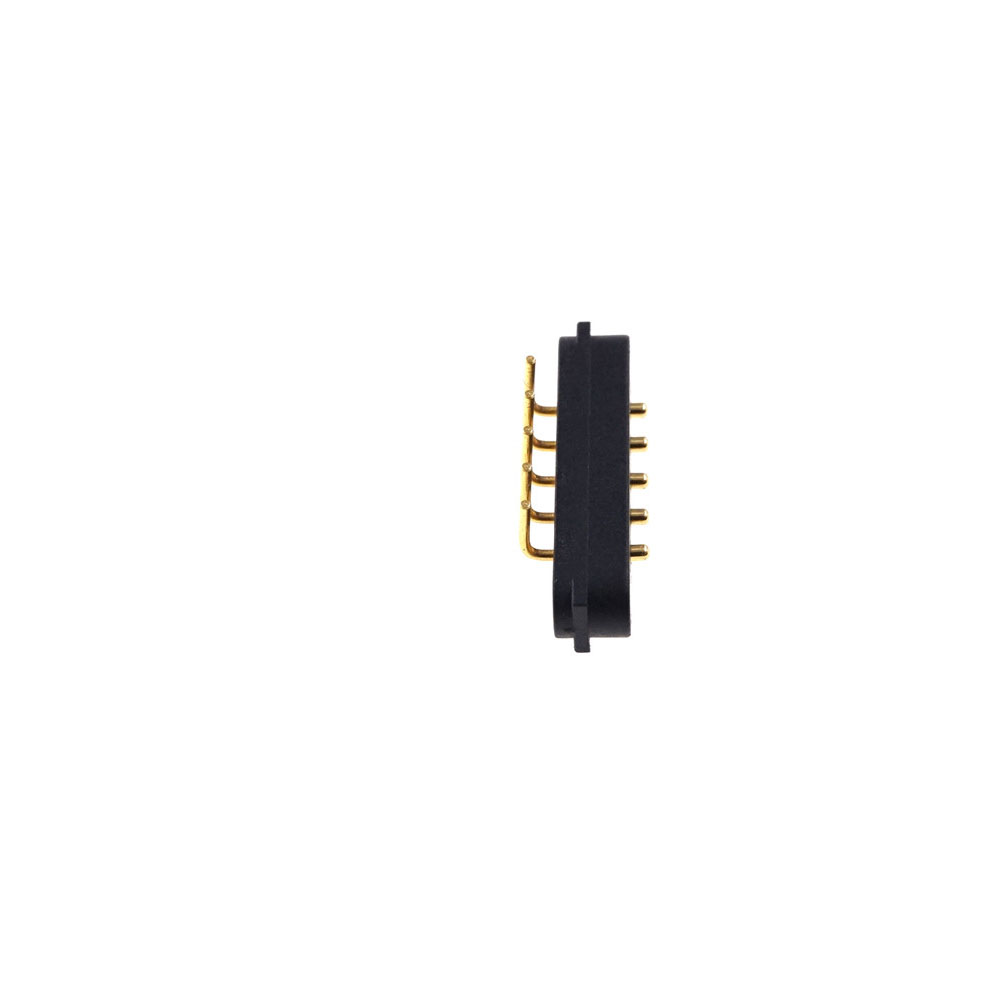

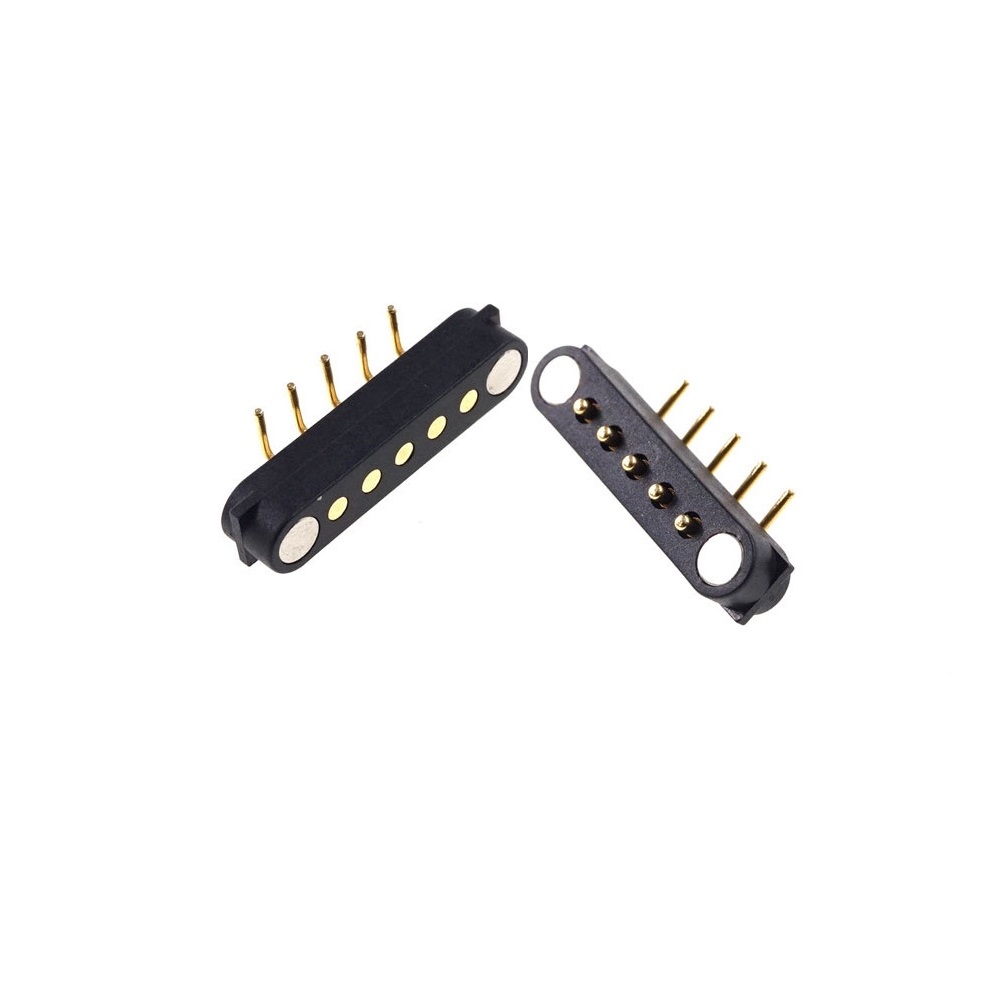

Spring Loaded Header Male Female 5 Pins 2.54 mm Grid Strip Straight Through Hole 180 Degree Right Angle Through Hole 90 Degree2A 36V DC Magnetic Pogo Pin
Spring Loaded Header Male Female 5 Pins 2.54 mm Grid Strip Straight Through Hole 180 Degree Right Angle Through Hole 90 Degree2A 36V DC Magnetic Pogo Pin
Inquiry Now Download
Spring Loaded Header Male Female 5 Pins 2.54 mm Grid Strip Straight Through Hole 180 Degree Right Angle Through Hole 90 Degree2A 36V DC Magnetic Pogo Pin
Spring Loaded Header Male Female 5 Pins 2.54 mm Grid Strip Straight Through Hole 180 Degree Right Angle Through Hole 90 Degree2A 36V DC Magnetic Pogo Pin
Spring Loaded Header Male Female 5 Pins 2.54 mm Grid Strip Straight Through Hole 180 Degree Right Angle Through Hole 90 Degree2A 36V DC Magnetic Pogo Pin
Spring Loaded Header Male Female 5 Pins 2.54 mm Grid Strip Straight Through Hole 180 Degree Right Angle Through Hole 90 Degree2A 36V DC Magnetic Pogo Pin
Spring Loaded Header Male Female 5 Pins 2.54 mm Grid Strip Straight Through Hole 180 Degree Right Angle Through Hole 90 Degree2A 36V DC Magnetic Pogo Pin
Spring Loaded Header Male Female 5 Pins 2.54 mm Grid Strip Straight Through Hole 180 Degree Right Angle Through Hole 90 Degree2A 36V DC Magnetic Pogo Pin
Spring Loaded Header Male Female 5 Pins 2.54 mm Grid Strip Straight Through Hole 180 Degree Right Angle Through Hole 90 Degree2A 36V DC Magnetic Pogo Pin
Spring Loaded Header Male Female 5 Pins 2.54 mm Grid Strip Straight Through Hole 180 Degree Right Angle Through Hole 90 Degree2A 36V DC Magnetic Pogo Pin
Spring Loaded Header Male Female 5 Pins 2.54 mm Grid Strip Straight Through Hole 180 Degree Right Angle Through Hole 90 Degree2A 36V DC Magnetic Pogo Pin
Spring Loaded Header Male Female 5 Pins 2.54 mm Grid Strip Straight Through Hole 180 Degree Right Angle Through Hole 90 Degree2A 36V DC Magnetic Pogo Pin
Spring Loaded Header Male Female 5 Pins 2.54 mm Grid Strip Straight Through Hole 180 Degree Right Angle Through Hole 90 Degree2A 36V DC Magnetic Pogo Pin
Spring Loaded Header Male Female 5 Pins 2.54 mm Grid Strip Straight Through Hole 180 Degree Right Angle Through Hole 90 Degree2A 36V DC Magnetic Pogo Pin
Spring Loaded Header Male Female 5 Pins 2.54 mm Grid Strip Straight Through Hole 180 Degree Right Angle Through Hole 90 Degree2A 36V DC Magnetic Pogo Pin
Spring Loaded Header Male Female 5 Pins 2.54 mm Grid Strip Straight Through Hole 180 Degree Right Angle Through Hole 90 Degree2A 36V DC Magnetic Pogo Pin
Spring Loaded Header Male Female 5 Pins 2.54 mm Grid Strip Straight Through Hole 180 Degree Right Angle Through Hole 90 Degree2A 36V DC Magnetic Pogo Pin

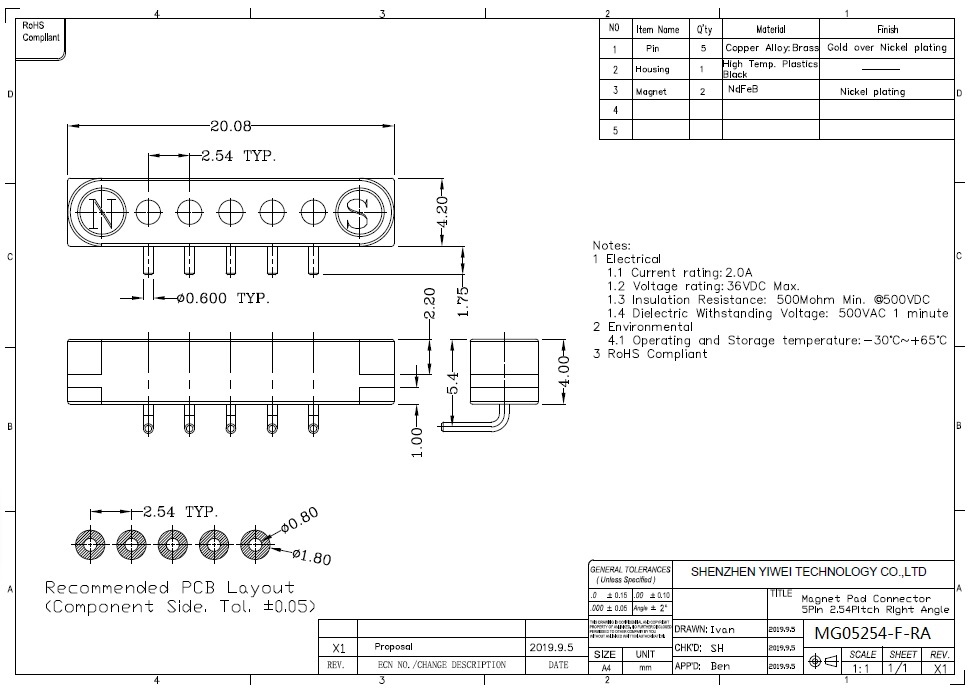

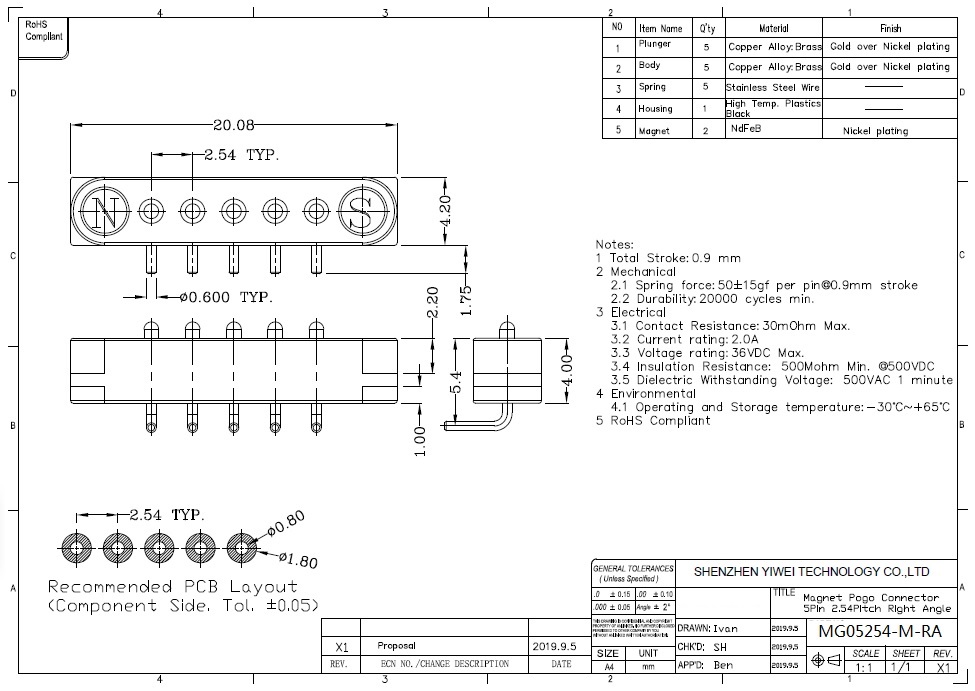

Notes:

1. Oxidation,contaimination free

2. Electrical

    2.1 Current rating:2.0A

    2.2 Voltage rating:36VDC Max.

    2.3 Insulation Resistance:500Mohm Min. 500VDC

    2.4 Dielectric withstanding Voltage:500VAC 1 minute

3.Environmental

   3.1 Operating and Storage temperature:-30-+65℃

4. RoHS compliant


Related products

Provide OEM and ODM services to global customers

Customized 2.54mm Magnetic 5 Pin male with Leads 3.0mm
+
Magnetic Female To Wire Harness
+
Extra Length Leads 12mm 5 Pin Magnetic Male Connector
+
