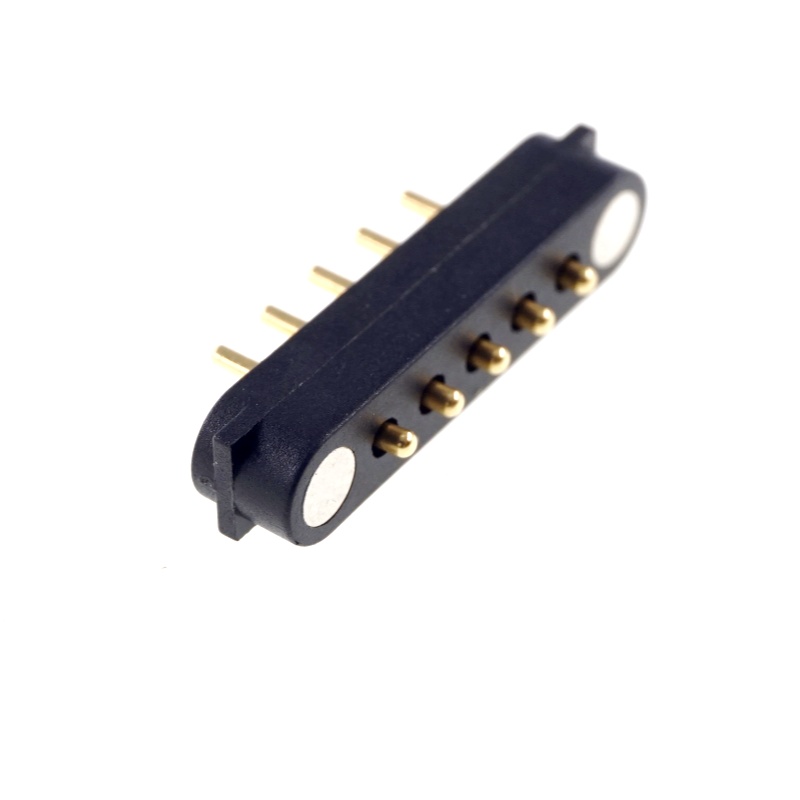

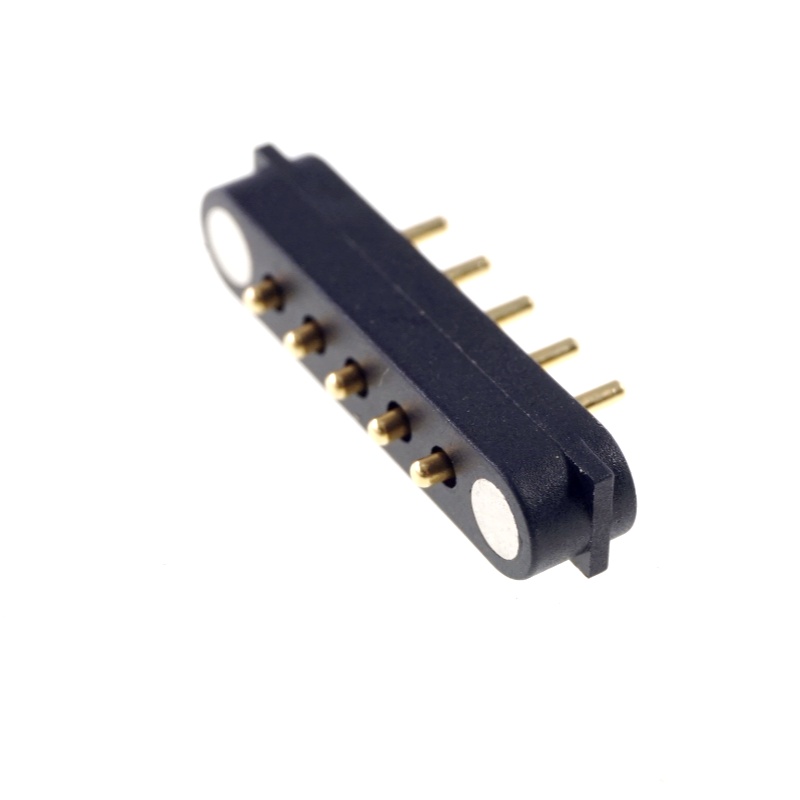

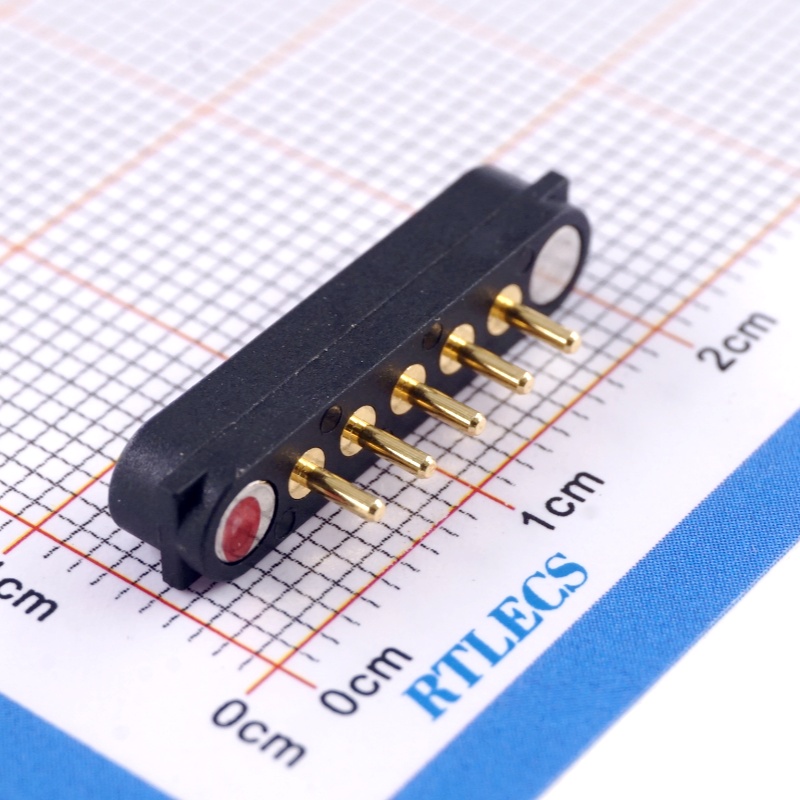

Customized 2.54mm Magnetic 5 Pin male with Leads 3.0mm
Customized 2.54mm Magnetic 5 Pin male with Leads 3.0mm

2.54mm Magnetic 5 Pin male

with Leads 3.0mm Customized (Standard length 1.75mm)


PN: MG0525M-T3

Inquiry Now Download
Customized 2.54mm Magnetic 5 Pin male with Leads 3.0mm
Customized 2.54mm Magnetic 5 Pin male with Leads 3.0mm
Customized 2.54mm Magnetic 5 Pin male with Leads 3.0mm

2A 36V

Total Stroke:0.9mm

Spring Force 50+/-15gf @ 0.9mm Working Stroke

Life time: 20000 time

Gold plated


Lead Length: Customized
