Magnetic 2.2 mm Pitch

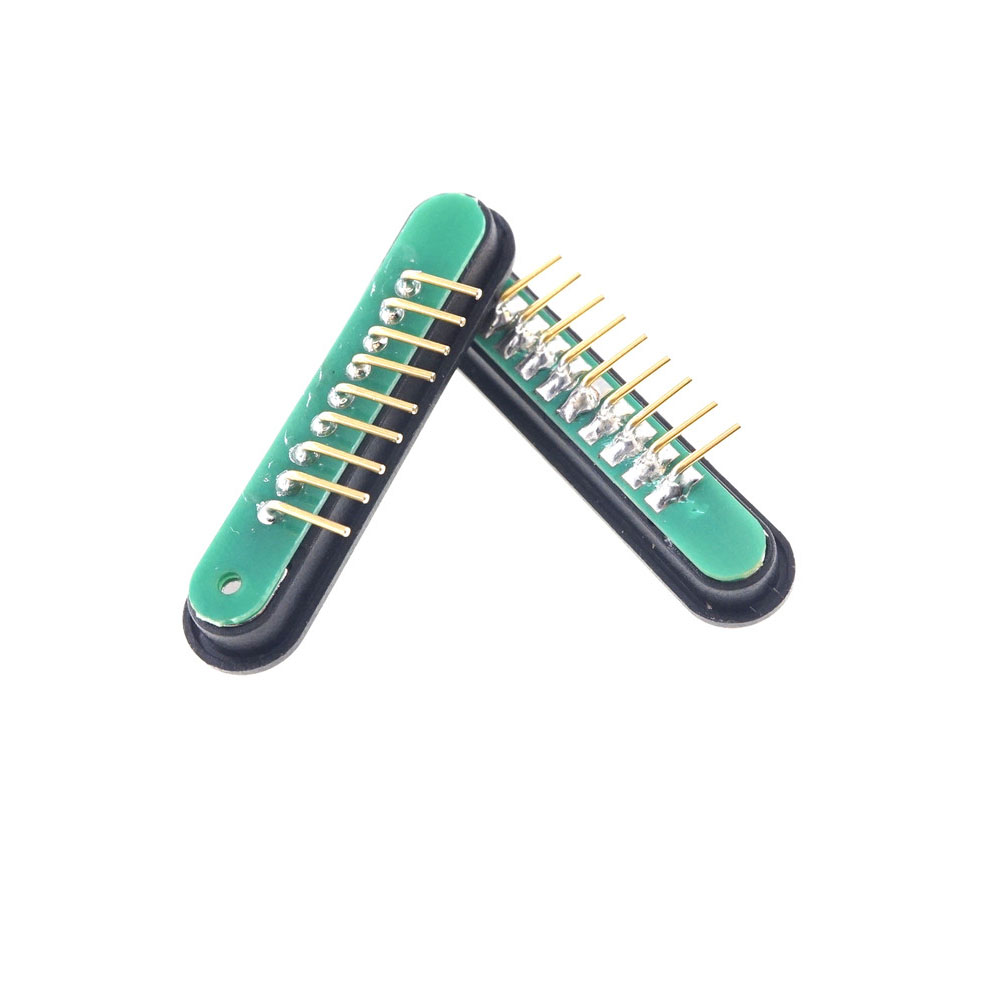

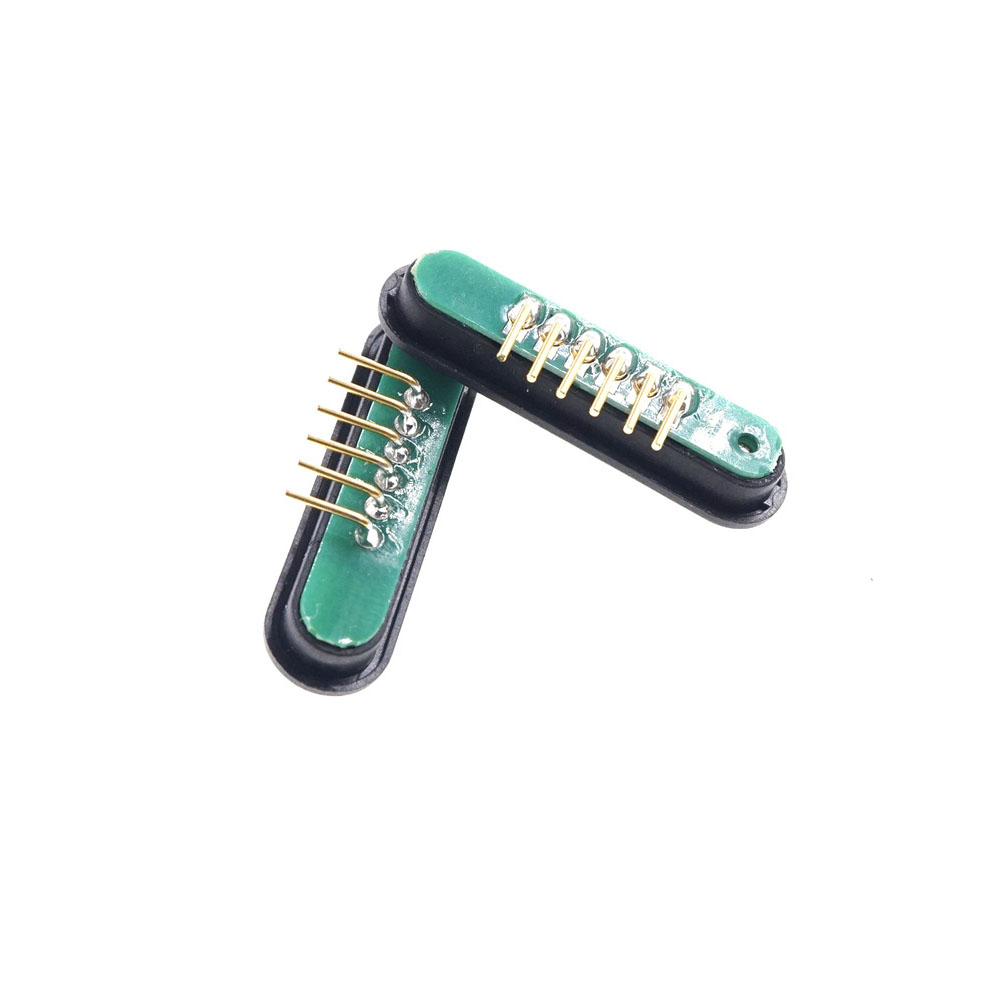

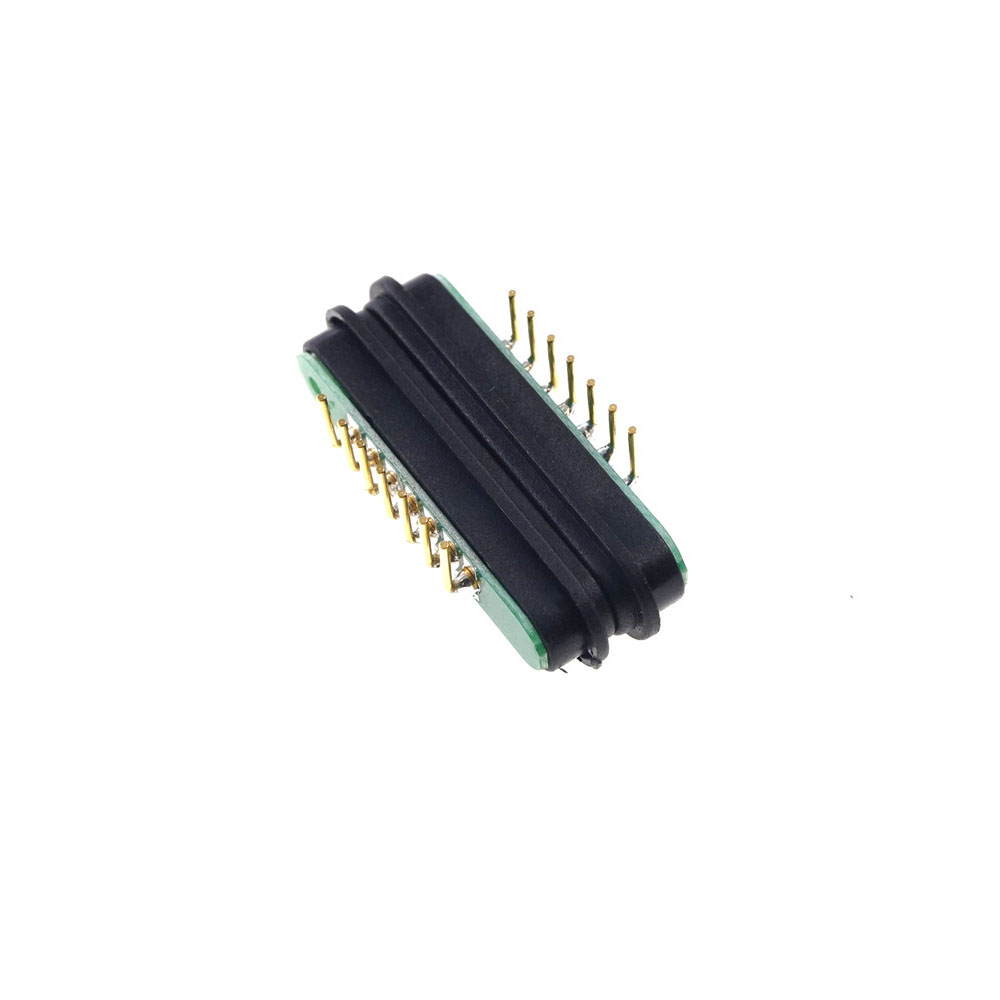

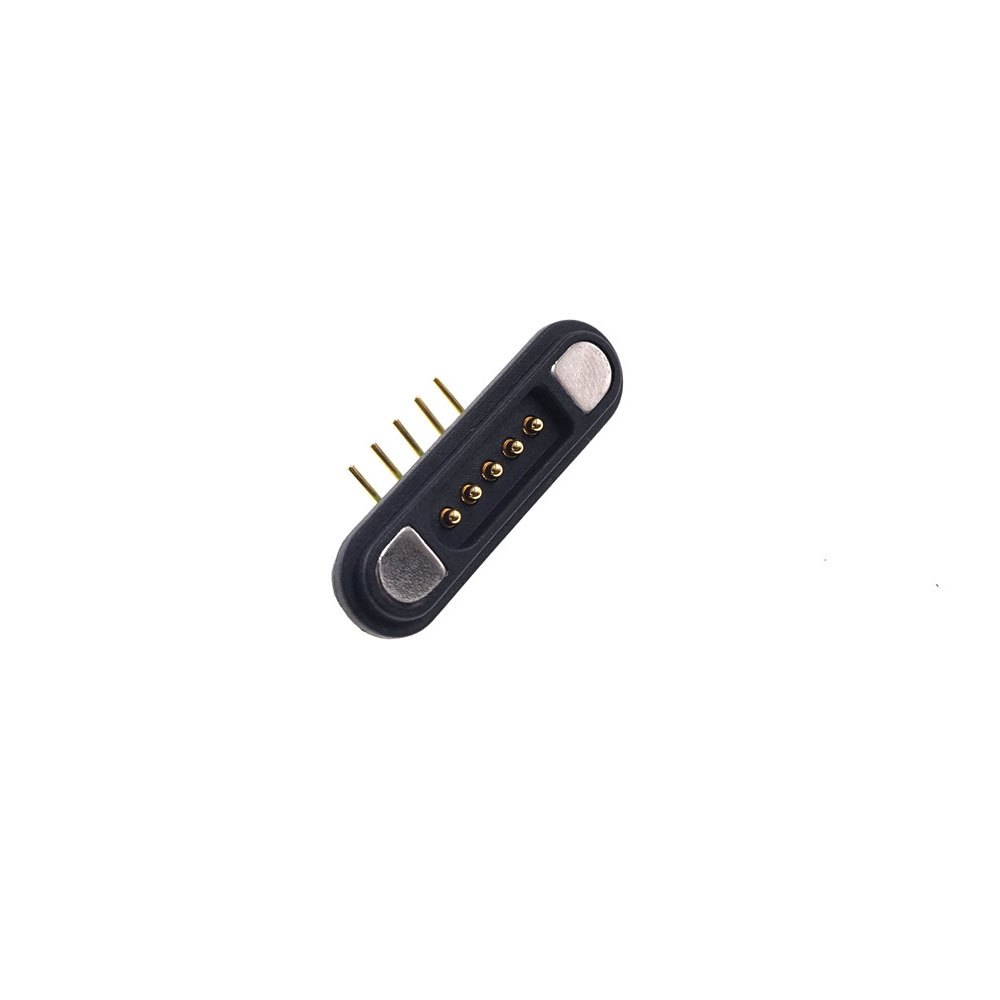

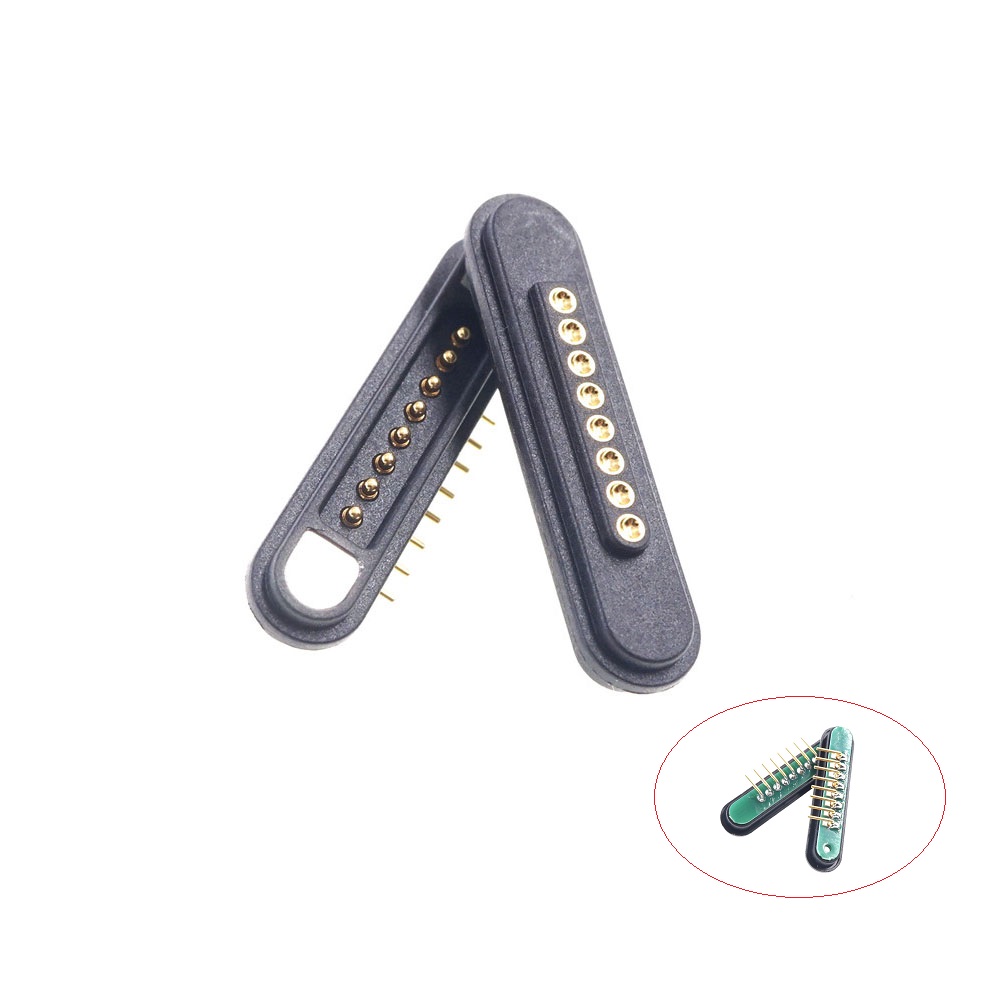

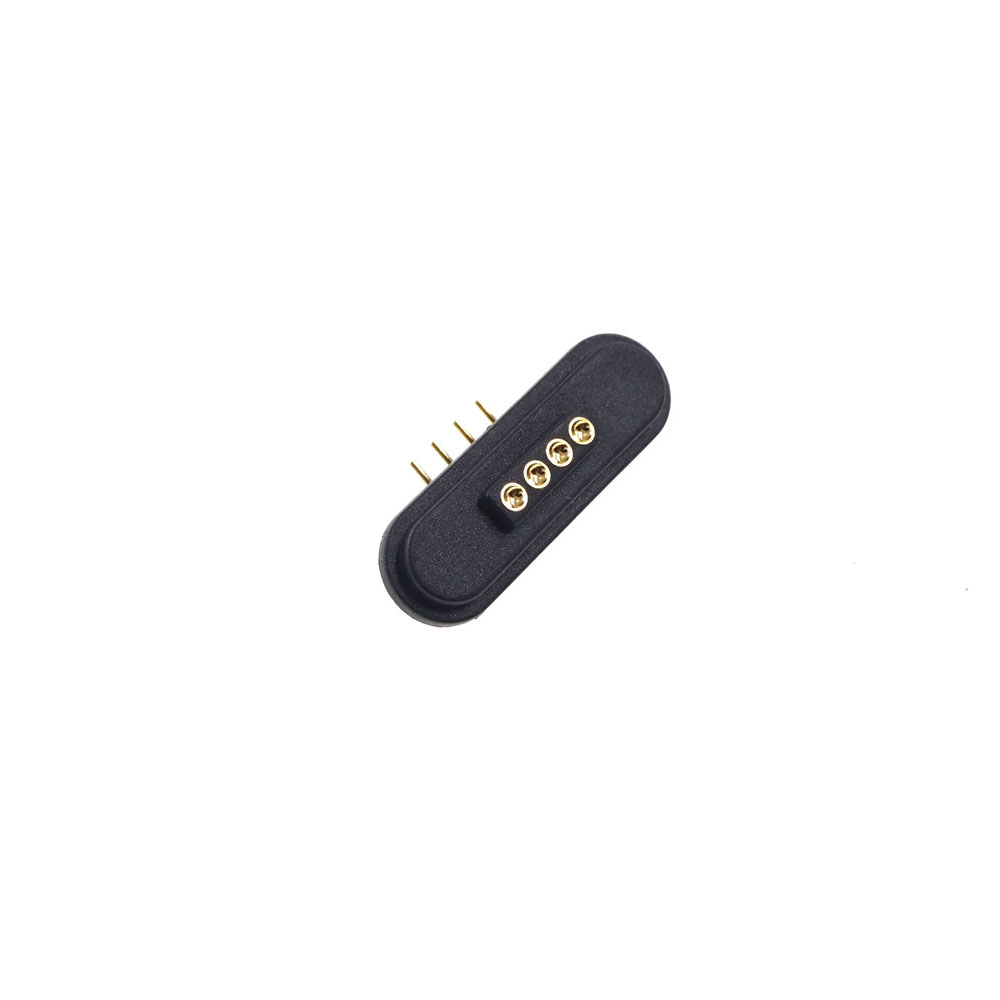

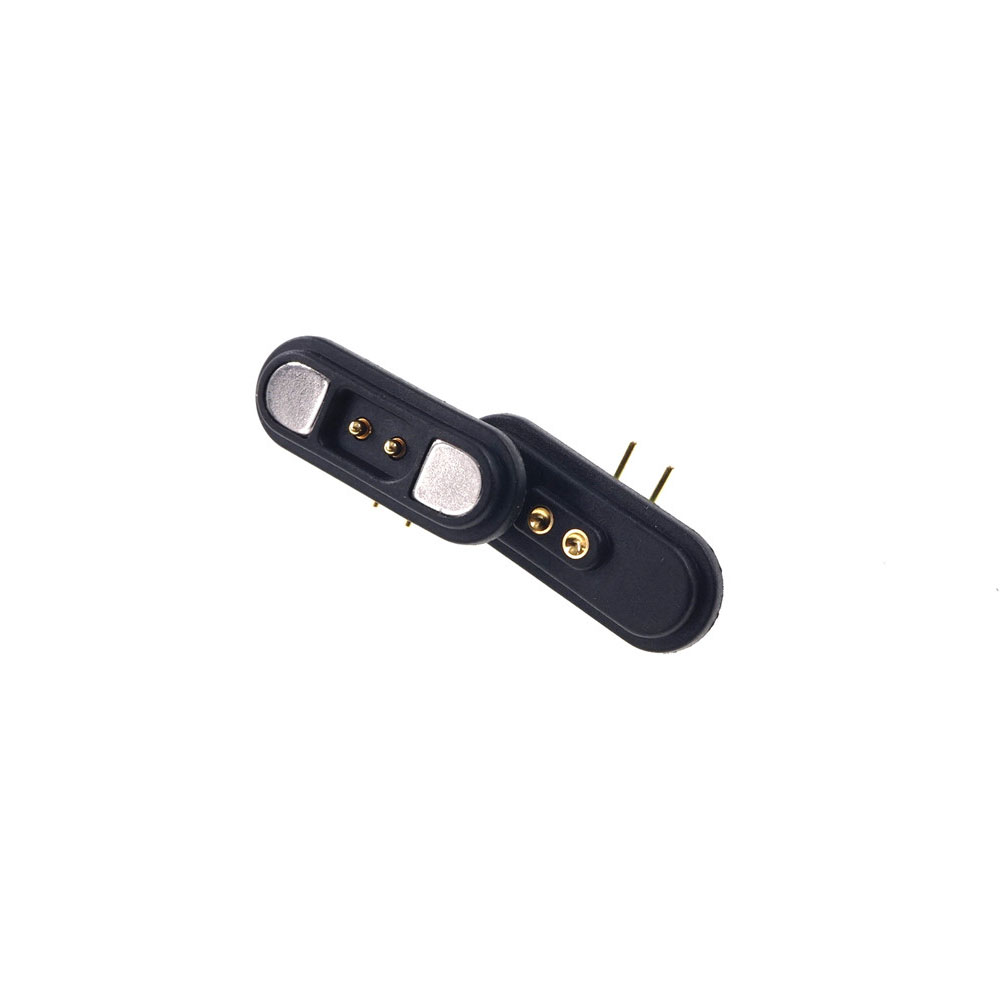

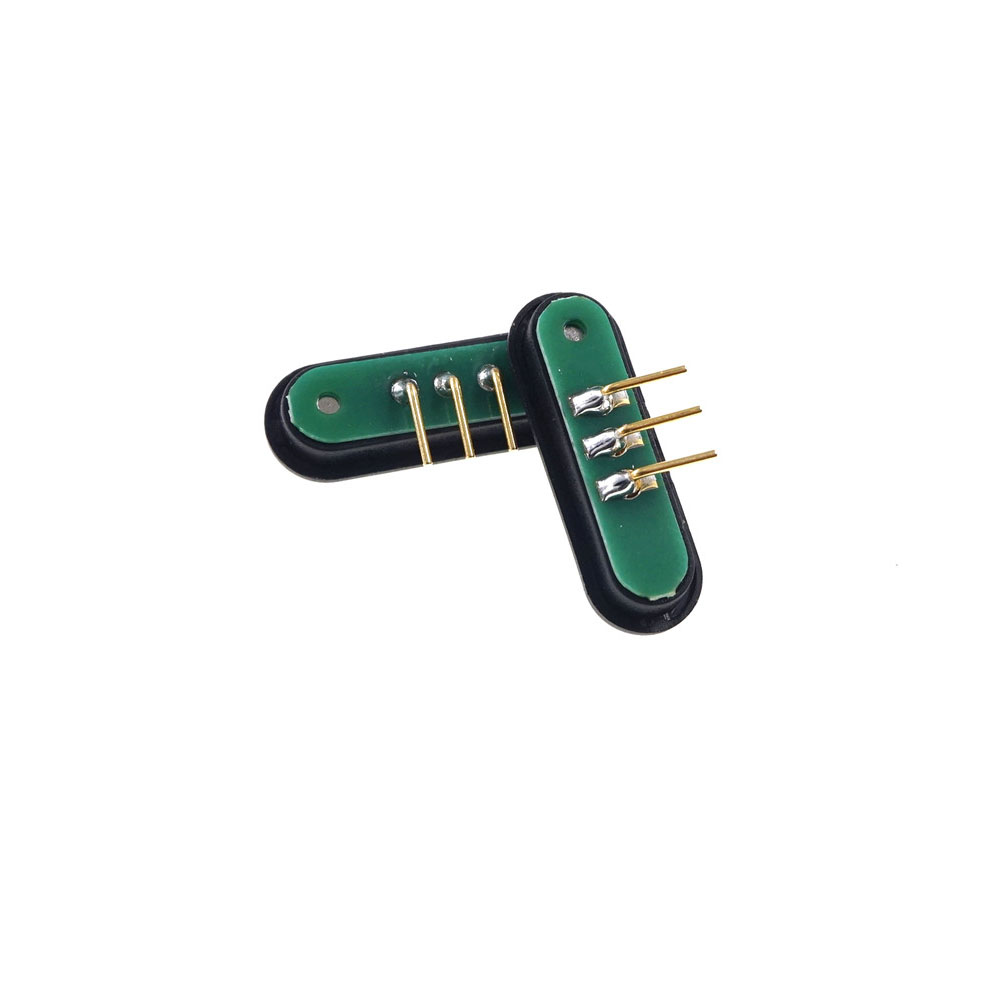

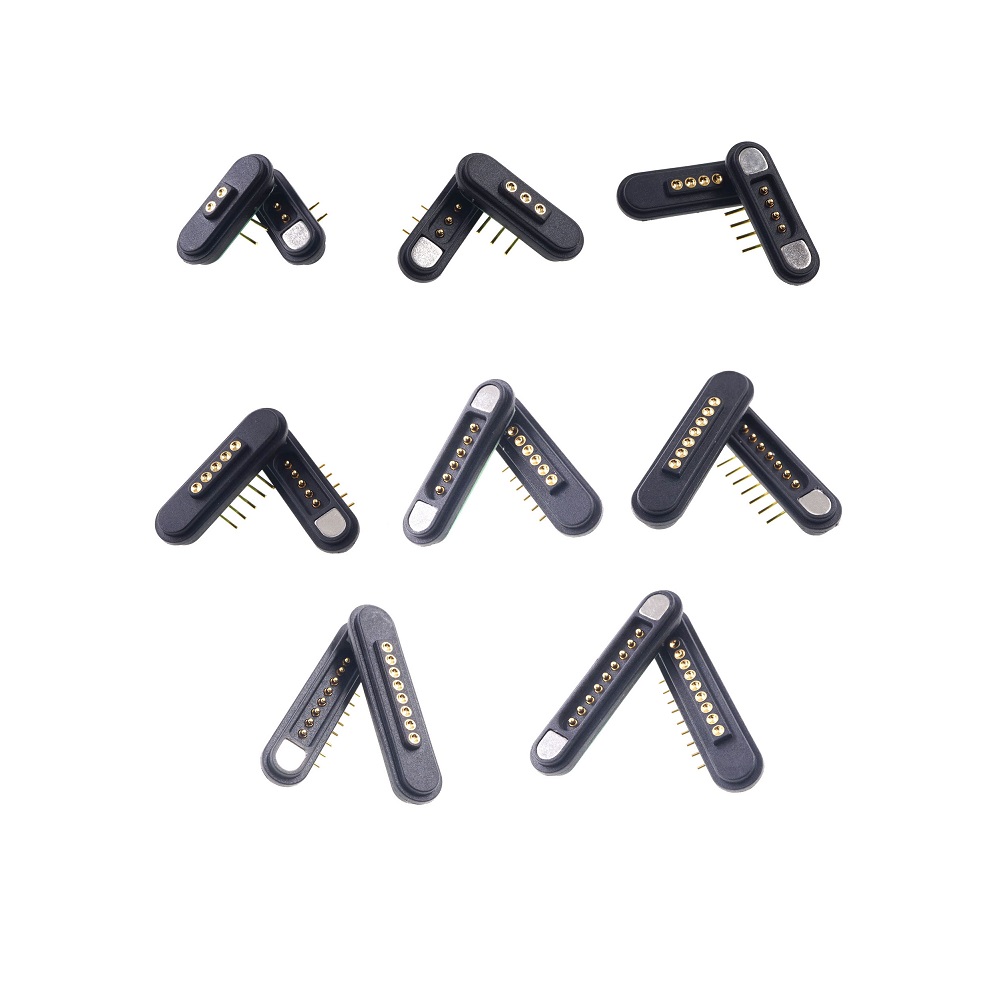

Spring Loaded Header Male Female 2 3 4 5 6 7 8 9  Pins Right Angle Through Hole 90 Degree 5A 12V DC Waterproof Pad Magnetic Pogo Pin
Spring Loaded Header Male Female 2 3 4 5 6 7 8 9 Pins Right Angle Through Hole 90 Degree 5A 12V DC Waterproof Pad Magnetic Pogo Pin

Magnetic Connector

2 3 4 5 6 7 8 9 Pole: Choose to order

Pogopin Male Female

2.2 MM Grid

Through Hole

5A 12V DC

Spring Loaded (Male Pin)

Waterproof Pad (Female)

Strong Force

Spring Loaded Header Male Female 2 3 4 5 6 7 8 9  Pins Right Angle Through Hole 90 Degree 5A 12V DC Waterproof Pad Magnetic Pogo Pin
Spring Loaded Header Male Female 2 3 4 5 6 7 8 9  Pins Right Angle Through Hole 90 Degree 5A 12V DC Waterproof Pad Magnetic Pogo Pin
Spring Loaded Header Male Female 2 3 4 5 6 7 8 9  Pins Right Angle Through Hole 90 Degree 5A 12V DC Waterproof Pad Magnetic Pogo Pin
Spring Loaded Header Male Female 2 3 4 5 6 7 8 9  Pins Right Angle Through Hole 90 Degree 5A 12V DC Waterproof Pad Magnetic Pogo Pin
Spring Loaded Header Male Female 2 3 4 5 6 7 8 9  Pins Right Angle Through Hole 90 Degree 5A 12V DC Waterproof Pad Magnetic Pogo Pin
Spring Loaded Header Male Female 2 3 4 5 6 7 8 9  Pins Right Angle Through Hole 90 Degree 5A 12V DC Waterproof Pad Magnetic Pogo Pin
Spring Loaded Header Male Female 2 3 4 5 6 7 8 9  Pins Right Angle Through Hole 90 Degree 5A 12V DC Waterproof Pad Magnetic Pogo Pin
Spring Loaded Header Male Female 2 3 4 5 6 7 8 9  Pins Right Angle Through Hole 90 Degree 5A 12V DC Waterproof Pad Magnetic Pogo Pin
Spring Loaded Header Male Female 2 3 4 5 6 7 8 9  Pins Right Angle Through Hole 90 Degree 5A 12V DC Waterproof Pad Magnetic Pogo Pin

Notes (Male):

1. Material:

    NdFeB magnet

    Housing: LCP UL94 V-0

    Brass C3604 Plating: Gold Plated over Nickel

2. Electrical

    2.1 Current rated: 5.0A per pin

    2.2 Voltage rated: 12 V

    2.3 80+/-20g Working @ 1.0mm stroke

    2.4 Contact Resistance: 50m OHm Max (Pin)

    2.5 AC1000V 0.5mA 3 Sec/DC1000V 0.5mA 3 Sec

    2.6 Life time: 50000 cycles

3. IPX7 Level waterproof

4. Magnetic Force: Above 400g

5. RoHS,REACH,CP65 compliant
